| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | IEC 61386 |
| Model Number: | IEC |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Bundles with Woven Bag |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Galvanized |
|---|---|---|---|
| Type: | Unthreaded | Size: | 16mm - 50mm |
| Section Shape: | Round | Color: | Sliver |
| High Light: | IEC 61386 Standard Conduit Pipe,EMT Chile Conduit Pipe,Galvanized Pipe IEC 61386 Conduits |
||

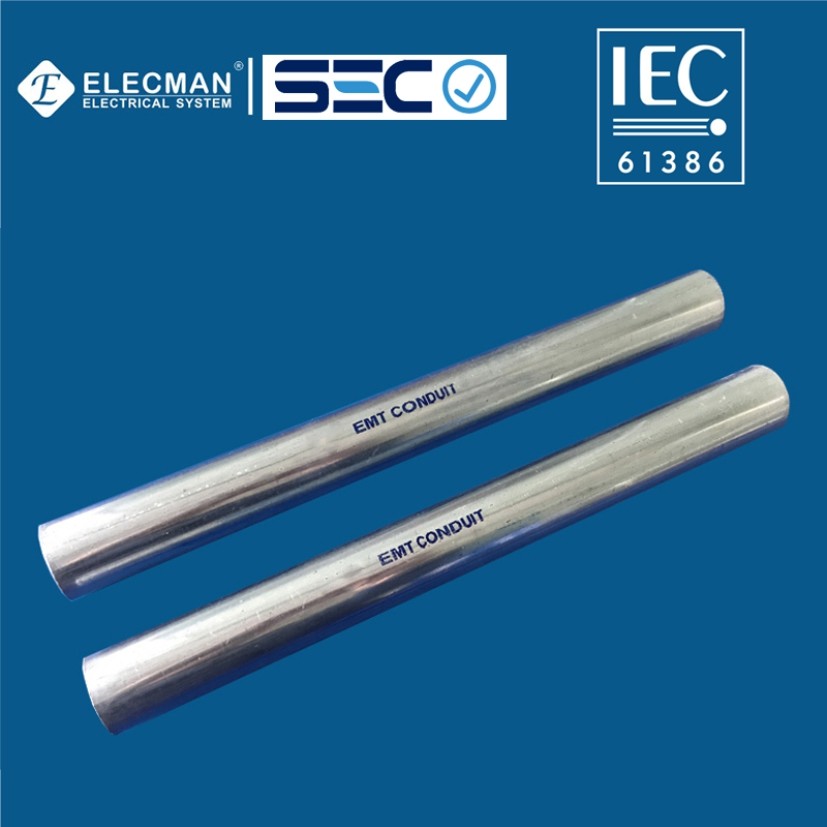

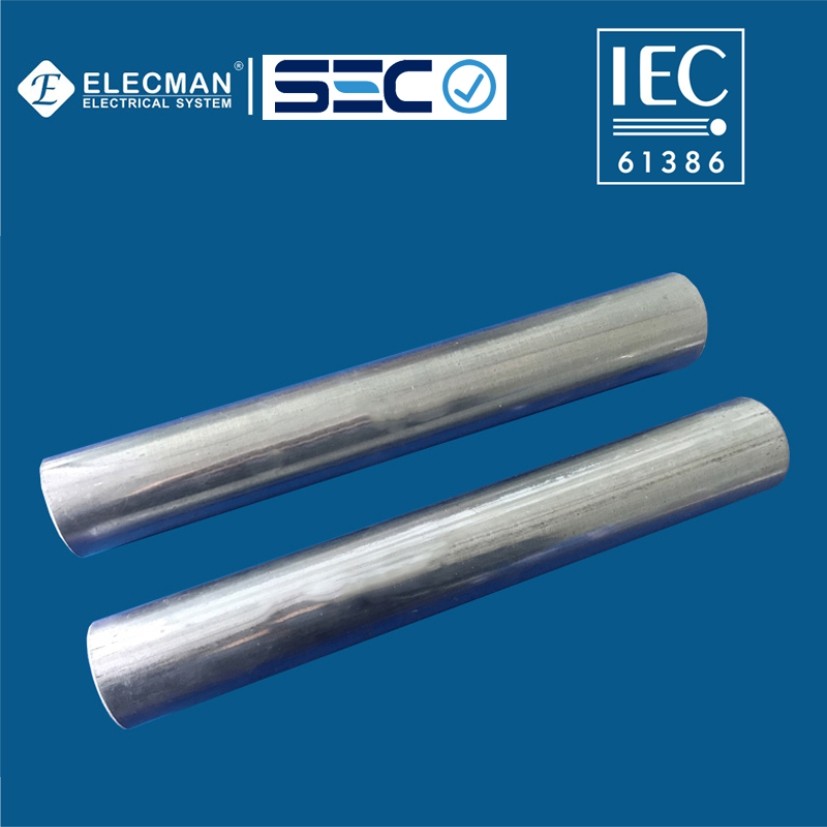

ELECMAN ® IEC 61386 Standard 25mm 40mm Galvanized EMT Chile Conduit Pipe
Applications
ELECMAN® IEC EMT conduit pipe is one of the lightest and thinnest threading pipe in IEC 61386 standard. The pipe head has no thread, and it is connected with set screw type connector which is mostly used in indoor. For electrical wiring For industrial & commercial installation and giving high load bearing capacities.
Features
Certifications and Compliances
ELECMAN® IEC 61386 carbon steel electrical metallic tubing(IEC EMT conduit) shall be carbon steel, electrically welded, galvanized and produced to the following specifications:
Specification Data
ELECMAN provides full size IEC 61386 carbon steel electrical metallic tubing(IEC EMT conduit) from 16mm to 50mm.
| CAT # | Trade size | O.D. | Thickness | Length |
| mm | mm | m | ||
| IEC16 | 16mm | 16 | 0.9 | 3 |
| IEC20 | 20mm | 20 | 1.2 | 3 |
| IEC25 | 25mm | 25 | 1.2 | 3 |
| IEC32 | 32mm | 32 | 1.4 | 3 |
| IEC40 | 40mm | 40 | 1.4 | 3 |
| IEC50 | 50mm | 50 | 1.4 | 3 |
Quality Control
Every ELECMAN people know deeply the core value of ELECMAN is to provide high quality products to customers, that is why ELECMAN QC departments have very strict quality controlling process, from raw material to products, ELECMAN QC department supervise every process, make sure every process follow the standard, for IEC 61386 carbon steel electrical metallic tubing(IEC EMT conduit), QC department need to inspect the dimensions, welding line, zinc coatings and bending feature.
Packing Information
IEC 61386 carbon steel electrical metallic tubing(IEC EMT conduit) are packed in bundles with woven bag, we also can put customers' sticker on pipes, on woven bag, we will put a big sticker with detailed information for customers to distinguish different sizes.
