| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | BS4568 |
| Model Number: | BS44 |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Hot Dipped Galvanized |
|---|---|---|---|
| Type: | Class 4 | Size: | 20mm-50mm |
| Section Shape: | Round | Color: | Sliver |
| High Light: | Class 4 BS Conduit,Galvanized Electrical BS Conduit,electrical conduit pipe |
||

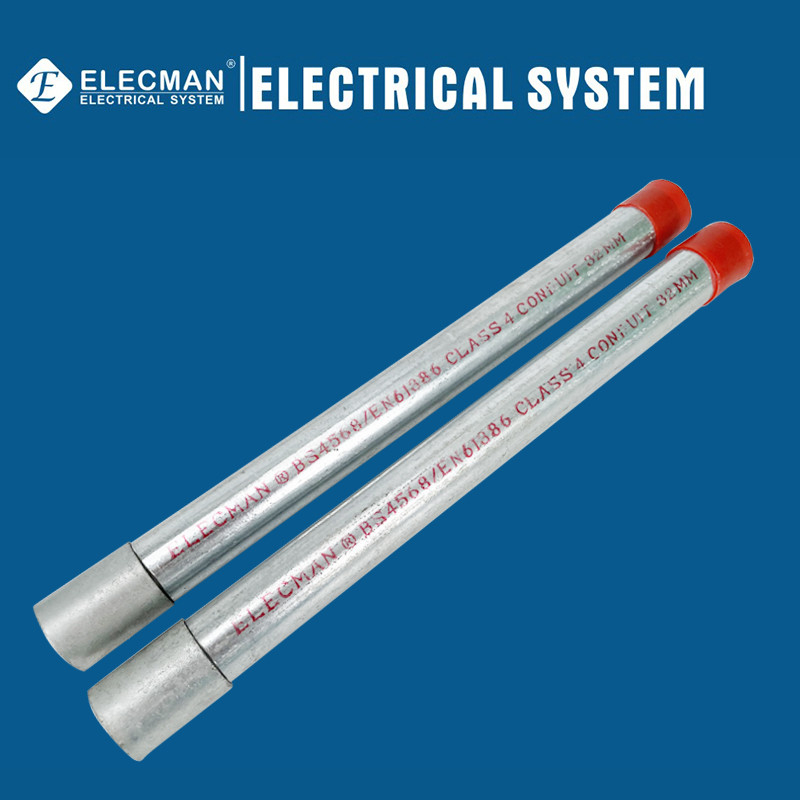

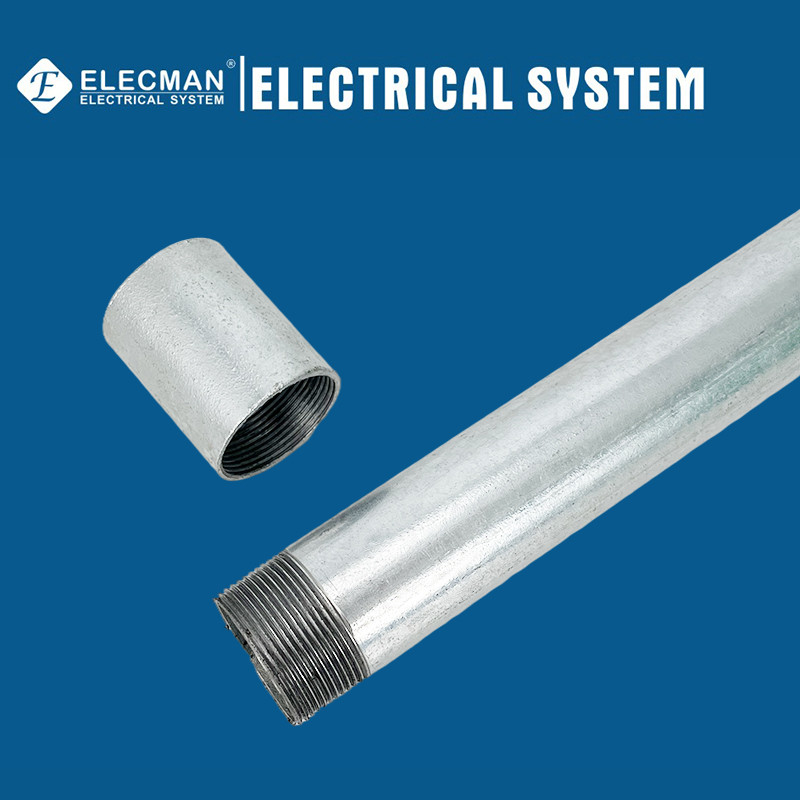

ELECMAN ® BS4568 32mm Class 4 Hot Dipped Galvanised Steel BS Conduit Pipe
Application
ELECMAN® BS4568 32mm class 4 hot dipped galvanised steel BS conduit pipe is used to protect wire installation and offer a high level of mechanical strength. High quality hot-dip coil processing, uniform zinc coating, good finish inside and outside, wall surface is smooth, without spots and bubbles, corrosion resistance. Suitable for wet, corrosive environment, harsh lighting, mechanical equipment.
Features
Certification and Compliance
ELECMAN® BS4568 32mm class 4 hot dipped galvanised steel BS conduit pipes shall be carbon steel, electrically welded, galvanized and produced to the following specifications:
Specification Data
ELECMAN provides full size BS4568 class 4 hot dipped galvanised steel BS conduits from 20mm to 50mm.
| CAT # | Nominal Size | Outside Diameter | Wall Thickness (mm) |
Length (m) |
Thread Length | ||
| Min | Max | Min | Max | ||||
| BS4401 | 20mm | 19.70 | 20.00 | 1.6 ± 0.10 | 3.75 | 13.0 | 15.0 |
| BS4402 | 25mm | 24.60 | 25.00 | 1.6 ± 0.15 | 3.75 | 16.0 | 18.0 |
| BS4403 | 32mm | 31.60 | 32.00 | 1.6 ± 0.15 | 3.75 | 18.0 | 20.0 |
| BS4404 | 40mm | 39.50 | 40.00 | 1.6 ± 0.15 | 3.75 | 19.0 | 20.0 |
| BS4405 | 50mm | 49.50 | 50.00 | 1.6 ± 0.15 | 3.75 | 19.0 | 20.0 |
Quality Control
Every ELECMAN people know deeply the core value of ELECMAN is to provide high quality products to customers, that is why ELECMAN QC departments have very strict quality controlling process, from raw material to products, ELECMAN QC department supervise every process, make sure every process follow the standard, for BS conduit, QC department need to inspect the dimensions, welding line, zinc coatings and bending feature.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. BS4568/EN61386 20-50mm class 4 hot dipped galvanized steel conduits are packed in bundles with woven bag, we also can put customers' sticker on pipes. On woven bag, we will put a big sticker with detailed information for customers to distinguish different sizes.
