| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | BS4568 |
| Model Number: | BS43 |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Bundles with Woven Bag |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Pre-Galvanized |
|---|---|---|---|
| Type: | Class 3 | Size: | 16mm - 114mm |
| Section Shape: | Round | Color: | Sliver |
| High Light: | 16mm BS Conduit,Galvanized BS Conduit,16mm bs en 61386 conduit |
||

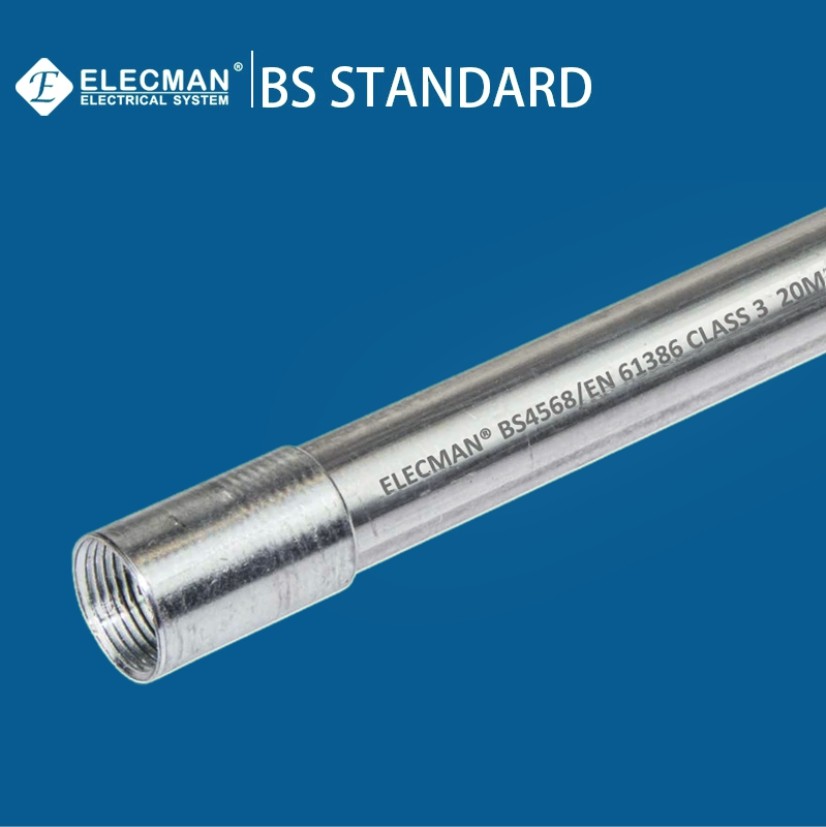

ELECMAN ® BS4568/EN61386 16mm-114mm Class 3 Pre-Galvanized Steel Conduit
Application
ELECMAN® BS4568/EN61386 16mm-114mm class 3 pre-galvanized steel conduits are usually a galvanized steel pipe used in industrial, commercial, and residential buildings to be installed indoors to protect wires and cables.
Features
Certification and Compliance
ELECMAN® BS4568/EN61386 16mm-114mm class 3 pre-galvanized steel conduits shall be carbon steel, electrically welded, galvanized and produced to the following specifications:
Specification Data
ELECMAN provides full size BS4568/EN61386 class 3 pre-galvanized steel conduits from 16mm to 114mm.
| CAT # | Nominal size | Outside Diameter | Wall Thickness (mm) |
Length (m) |
Thread Length | ||
| Min | Max | Min | Max | ||||
| BS4301 | 16mm | 15.70 | 17.93 | 1.4 ± 0.10 | 3.75 | 11.50 | 13.50 |
| BS4302 | 20mm | 19.70 | 23.42 | 1.6 ± 0.15 | 3.75 | 13.00 | 15.00 |
| BS4303 | 25mm | 24.60 | 29.54 | 1.6 ± 0.15 | 3.75 | 16.00 | 18.00 |
| BS4304 | 32mm | 31.60 | 38.35 | 1.6 ± 0.15 | 3.75 | 18.00 | 20.00 |
| BS4305 | 40mm | 39.50 | 44.20 | 1.6 ± 0.15 | 3.75 | 19.00 | 20.00 |
| BS4306 | 50mm | 49.50 | 55.80 | 1.6 ± 0.15 | 3.75 | 19.00 | 20.00 |
| BS4307 | 60mm | 59.50 | 73.03 | 2.0 ± 0.15 | 3.75 | ||
| BS4308 | 75.5mm | 75.00 | 88.90 | 2.0 ± 0.15 | 3.75 | ||
| BS4309 | 88.5mm | 85.00 | 101.60 | 2.0 ± 0.15 | 3.75 | ||
| BS4310 | 114mm | 113.00 | 114.30 | 2.0 ± 0.15 | 3.75 | ||
| Thinner Type | |||||||
| BS4302T | 20mm | 19.70 | 20 | 1.2 ± 0.05 | 3.75 | 13.00 | 15.00 |
| BS4303T | 25mm | 24.60 | 25 | 1.2 ± 0.05 | 3.75 | 16.00 | 18.00 |
| BS4304T | 32mm | 31.60 | 32 | 1.2 ± 0.05 | 3.75 | 18.00 | 20.00 |
Quality Control
Every ELECMAN people know deeply the core value of ELECMAN is to provide high quality products to customers, that is why ELECMAN QC departments have very strict quality controlling process, from raw material to products, ELECMAN QC department supervise every process, make sure every process follow the standard, for BS conduit, QC department need to inspect the dimensions, welding line, zinc coatings and bending feature.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. BS4568/EN61386 class 3 pre-galvanized steel conduits are packed in bundles with woven bag, we also can put customers' sticker on pipes. On woven bag, we will put a big sticker with detailed information for customers to distinguish different sizes.
