| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | BS4568 |
| Model Number: | BS43 |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Bundles with Woven Bag |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Pre-Galvanized |
|---|---|---|---|
| Type: | Class 3 | Size: | 16mm - 114mm |
| Section Shape: | Round | Color: | Sliver |
| High Light: | BS4568 galvanised metal conduit,20mm galvanised metal conduit,20mm galvanised electrical conduit pipe |
||

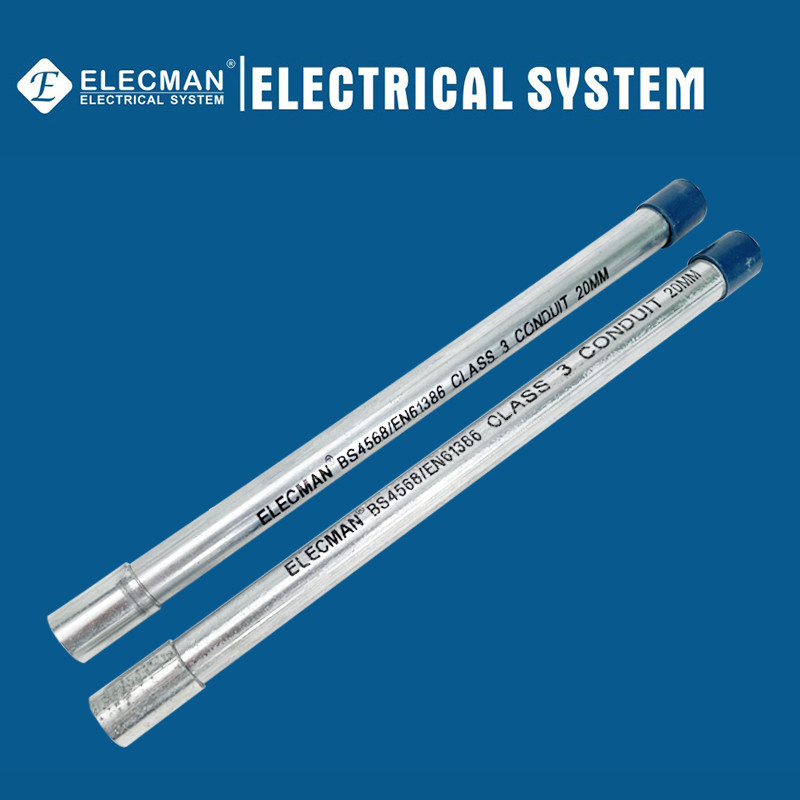

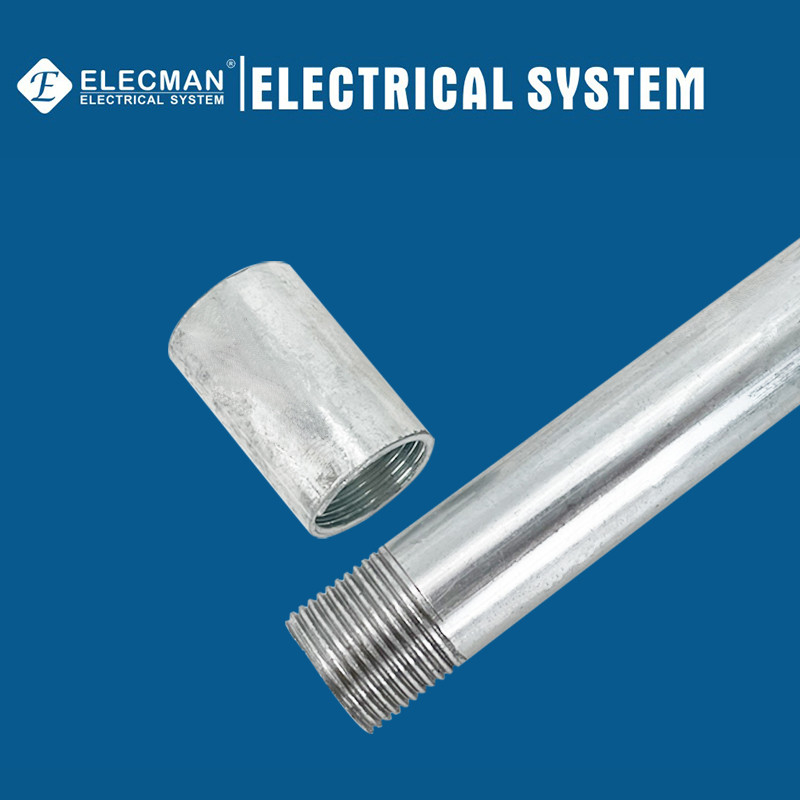

ELECMAN ® BS4568 20mm Class 3 Pre-Galvanized Steel BS Conduit Pipe
Application
ELECMAN® BS4568 20mm class 3 pre-galvanized steel BS conduits for electrical wiring is designed to protect and route cables and conductors. It can be installed either exposed or concealed. Install it inside or outside using rain-tight fittings. This BS4568 conduit is made of pre-galvanized steel and has an organic coating inside.
Features
Certification and Compliance
ELECMAN® BS4568 20mm class 3 pre-galvanized steel BS conduits shall be carbon steel, electrically welded, galvanized and produced to the following specifications:
Specification Data
ELECMAN provides full size BS4568 class 3 pre galvanized steel BS conduitsfrom 16mm to 114mm.
| CAT # | Nominal size | Outside Diameter | Wall Thickness (mm) |
Length (m) |
Thread Length | ||
| Min | Max | Min | Max | ||||
| BS4301 | 16mm | 15.70 | 17.93 | 1.4 ± 0.10 | 3.75 | 11.50 | 13.50 |
| BS4302 | 20mm | 19.70 | 23.42 | 1.6 ± 0.15 | 3.75 | 13.00 | 15.00 |
| BS4303 | 25mm | 24.60 | 29.54 | 1.6 ± 0.15 | 3.75 | 16.00 | 18.00 |
| BS4304 | 32mm | 31.60 | 38.35 | 1.6 ± 0.15 | 3.75 | 18.00 | 20.00 |
| BS4305 | 40mm | 39.50 | 44.20 | 1.6 ± 0.15 | 3.75 | 19.00 | 20.00 |
| BS4306 | 50mm | 49.50 | 55.80 | 1.6 ± 0.15 | 3.75 | 19.00 | 20.00 |
| BS4307 | 60mm | 59.50 | 73.03 | 2.0 ± 0.15 | 3.75 | ||
| BS4308 | 75.5mm | 75.00 | 88.90 | 2.0 ± 0.15 | 3.75 | ||
| BS4309 | 88.5mm | 85.00 | 101.60 | 2.0 ± 0.15 | 3.75 | ||
| BS4310 | 114mm | 113.00 | 114.30 | 2.0 ± 0.15 | 3.75 | ||
| Thinner Type | |||||||
| BS4302T | 20mm | 19.70 | 20 | 1.2 ± 0.05 | 3.75 | 13.00 | 15.00 |
| BS4303T | 25mm | 24.60 | 25 | 1.2 ± 0.05 | 3.75 | 16.00 | 18.00 |
| BS4304T | 32mm | 31.60 | 32 | 1.2 ± 0.05 | 3.75 | 18.00 | 20.00 |
Quality Control
Every ELECMAN people know deeply the core value of ELECMAN is to provide high quality products to customers, that is why ELECMAN QC departments have very strict quality controlling process, from raw material to products, ELECMAN QC department supervise every process, make sure every process follow the standard, for BS conduit, QC department need to inspect the dimensions, welding line, zinc coatings and bending feature.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. BS4568/EN61386 class 3 pre-galvanized steel conduits are packed in bundles with woven bag, we also can put customers' sticker on pipes. On woven bag, we will put a big sticker with detailed information for customers to distinguish different sizes.
