| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | ES-C |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Corrugated Carton |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Carbon Steel/Stainless Steel | Surface Finish: | Zinc Plated, Hot-Dipped Galvanized |
|---|---|---|---|
| Type: | Light Duty | Size: | 3/4" - 24" |
| Usage: | Pipe Supports | Color: | Sliver |
| High Light: | Clevis Conduit Pipe Hangers,4 inch Conduit Pipe Hangers,Clevis 4 inch conduit hanger |
||

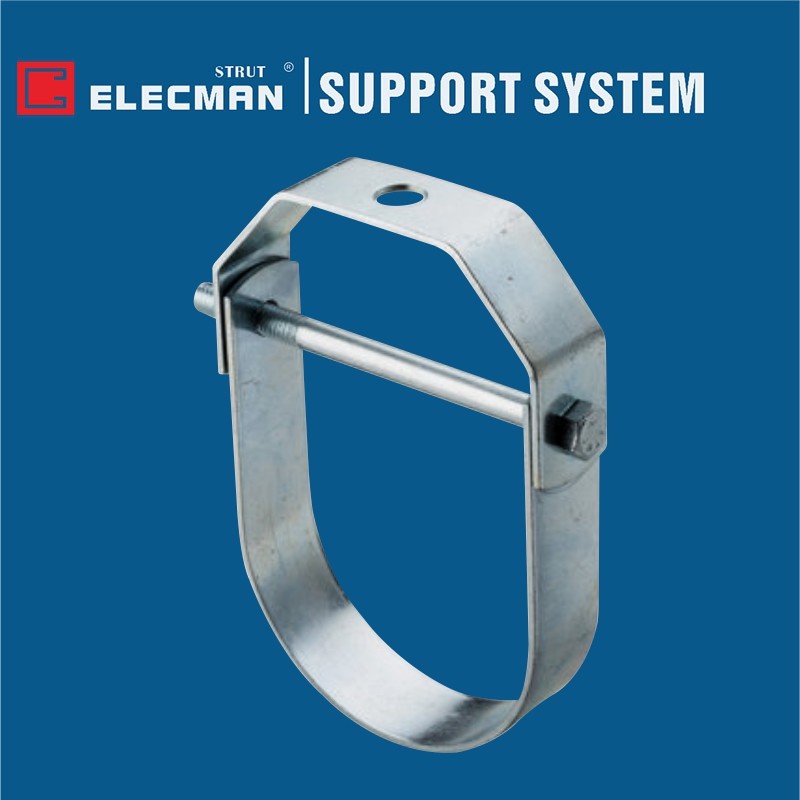

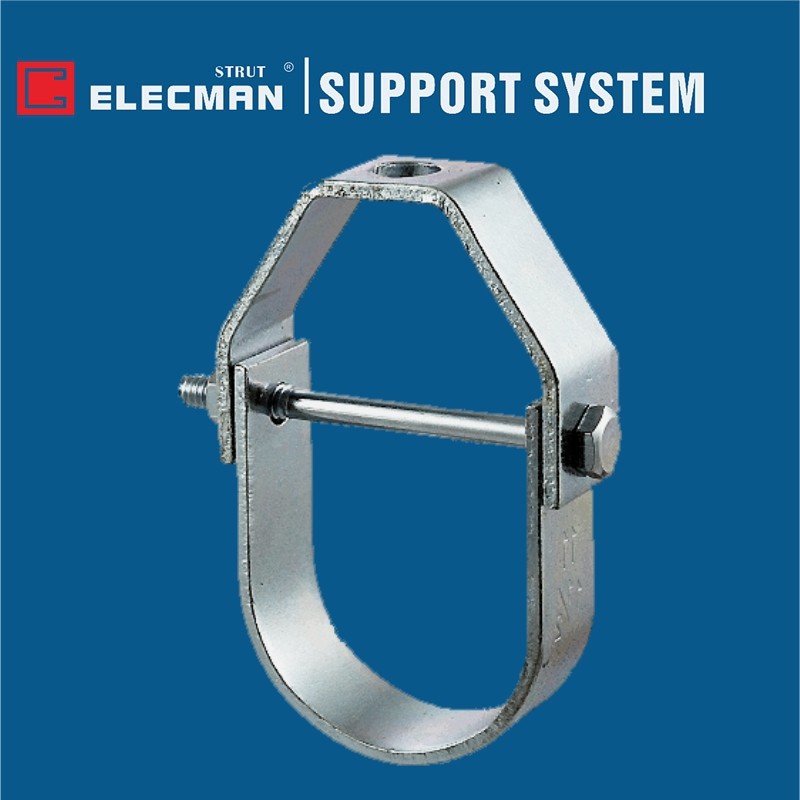

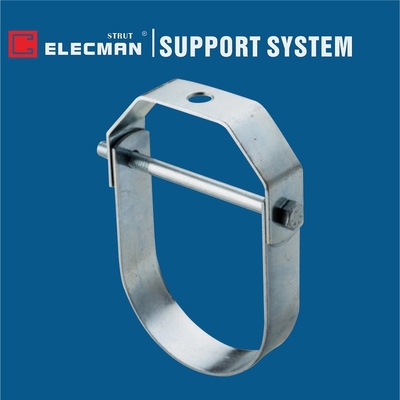

ELECMAN ® Steel Light Duty Adjusted Clevis Loop Conduit Hanger For Pipe Support
Applications
ELECMAN® Steel light duty adjusted clevis loop conduit hanger for pipe support is a pipe attachment providing vertical adjustment, consisting of a clevis type top bolted to a formed steel bottom strap. They are recommended for the suspension of non-insulated, stationary pipe lines.
Features
Specification Data
ELECMAN provides full size steel light duty adjusted clevis loop conduit hanger for pipe support.
| Cat.# | Size | M | Ö | d | r2 | C | S | e | Bolt Size | Txb |
| in | in | mm | mm | mm | mm | mm | mm | in & mm | mm | |
| ES-C020 | 3/4" | 82.5 | 11 | 46 | 40 | 20 | 24 | Ö8 | 1/4" * 50 | 2.5 * 22.5 |
| ES-C025 | 1" | 99 | 11 | 56.5 | 40 | 20 | 24 | Ö8 | 1/4" * 57 | 2.5 * 22.5 |
| ES-C032 | 1-1/4" | 106 | 11 | 54 | 40 | 23 | 24 | Ö8 | 1/4" * 70 | 2.5 * 22.5 |
| ES-C040 | 1-1/2" | 107 | 11 | 40 | 40 | 23 | 24 | Ö8 | 1/4" * 75 | 2.5 * 22.5 |
| ES-C050 | 2" | 126 | 11 | 56 | 40 | 21 | 25 | Ö8 | 1/4" * 90 | 2.5 * 22.5 |
| ES-C065 | 2-1/2" | 156 | 14 | 69 | 40 | 15 | 32 | Ö11 | 3/8" * 110 | 3 * 26 |
| ES-C080 | 3" | 169 | 14 | 53 | 40 | 15 | 32 | Ö11 | 3/8" * 115 | 3 * 26 |
| ES-C090 | 3-1/2" | 165 | 14 | 51 | 40 | 20 | 34 | Ö11 | 3/8" * 140 | 4 * 30 |
| ES-C100 | 4" | 200 | 17 | 72.5 | 40 | 20 | 45 | Ö11 | 3/8" * 150 | 4 * 30 |
| ES-C125 | 5" | 231 | 17 | 76 | 40 | 24 | 50 | Ö14 | 1/2" * 200 | 4.5 * 32 |
| ES-C150 | 6" | 260 | 20 | 77 | 40 | 21 | 50 | Ö14 | 1/2" * 225 | 4.5 * 36.5 |
| ES-C200 | 8" | 329 | 20 | 90 | 40 | 28 | 57 | Ö17 | 5/8" * 280 | 4.5 * 42.5 |
| ES-C250 | 10" | 381 | 23.7 | 84 | 80 | 30 | 54 | Ö20 | 3/4" * 360 | 6 * 44.5 |
| ES-C300 | 12" | 157 | 23.7 | 104.5 | 80 | 48 | 57 | Ö20 | 3/4" * 410 | 6 * 50 |
| ES-C350 | 14" | 514 | 27 | 123 | 80 | 38 | 94 | Ö23.7 | 7/8" * 465 | 6 * 50 |
| ES-C400 | 16" | 560 | 27 | 119 | 80 | 50 | 90 | Ö27 | 1" * 520 | 6 * 64 |
| ES-C450 | 18" | 638 | 32 | 135 | 80 | 50 | 105 | Ö32 | 1-1/8" * 570 | 6.5 * 64 |
| ES-C500 | 20" | 695 | 33.2 | 135 | 80 | 58 | 180 | Ö33.2 | 1-1/4" * 645 | 8 *76 |
| ES-C600 | 24" | 803 | 33.2 | 155 | 80 | 58 | 215 | Ö33.2 | 1-1/4" * 755 | 8 * 76 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the plugs body is made of high quality brass, every parts of the plugs are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. For internal packing, use small carton boxes or self sealing plastic bag, for external packing, use good quality corrugated carton. ELECMAN can follow any requirement of customers.
