| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Model Number: | ES-8008 |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Corrugated Carton |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Carbon Steel/Stainless Steel | Surface Finish: | Zinc Plated, Hot-Dipped Galvanized |
|---|---|---|---|
| Type: | One-Part Clamp Type | Size: | 3/4" - 10" |
| Inclued: | Knurled Nut | Color: | Sliver |
| High Light: | Galvanized conduit hanger clamp,Electrical conduit hanger clamp,Galvanized electrical conduit hangers |
||

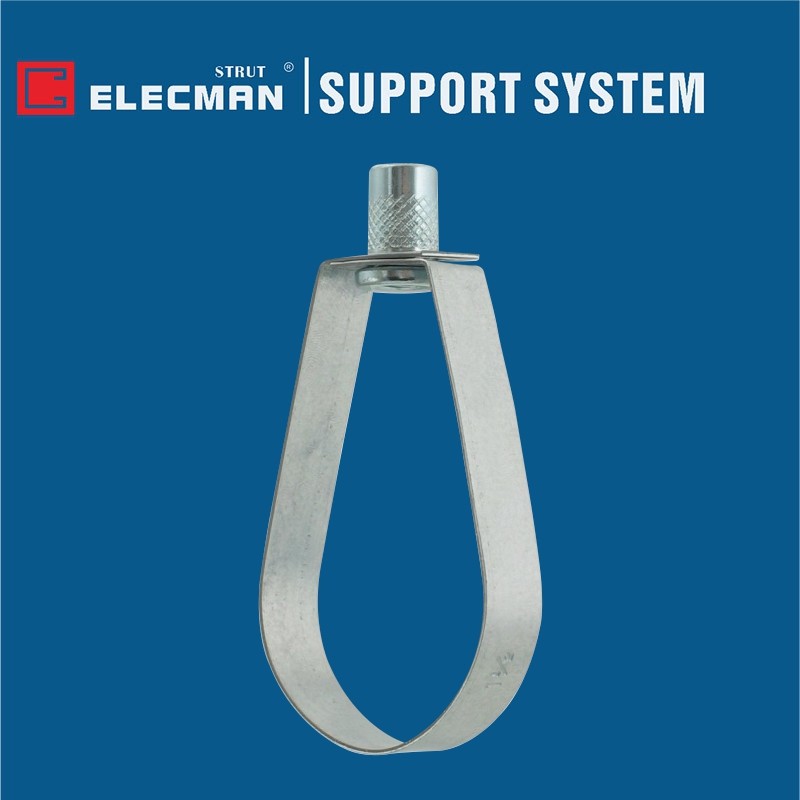

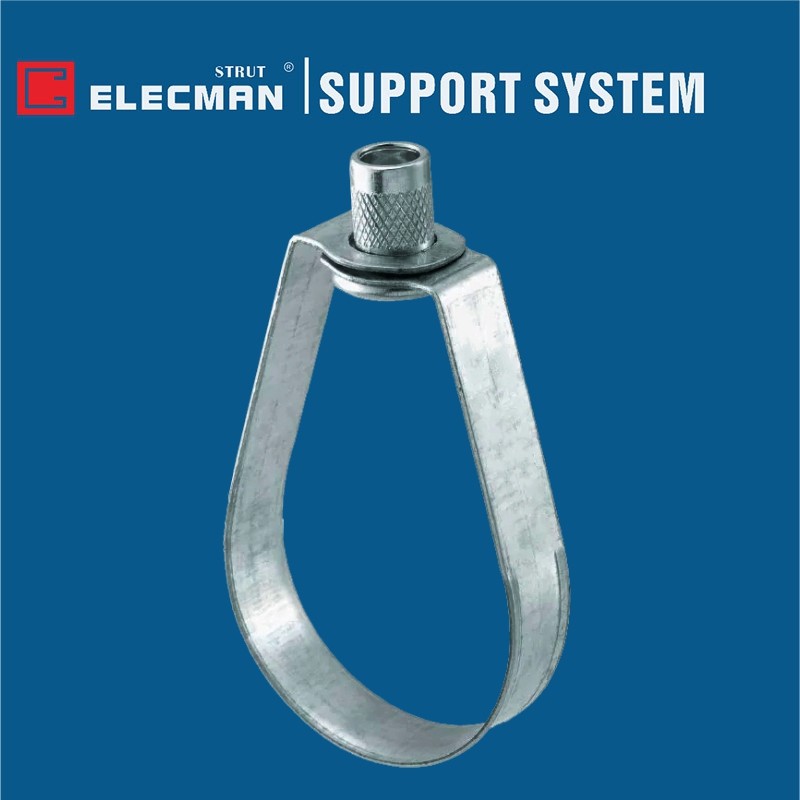

ELECMAN ® Galvanized Steel E-Z Grip Sprinkler Loop Pipe Hanger With Knurled Nut
Applications
ELECMAN ® Galvanized steel E-Z grip sprinkler loop pipe hanger with knurled nut are used for supporting sprinkler piping in fire protection applications, and recommended for suspending stationary non-insulated pipe lines. Ideal for suspension using Threaded pins and Threaded rods.
Features
Specification Data
ELECMAN provides full size galvanized steel E-Z grip sprinkler loop pipe hanger with knurled nut from 3/4" to 10".
| CAT # | Trade Size | Diameter | Rod Size(A) | Strip Size | Total Height(H) | Safe Working Load |
| ES-8008 A | 3/4" | 28mm | 10mm | 1.5 * 20mm | 61mm | 200kgs |
| ES-8008 B | 1" | 35mm | 10mm | 1.5 * 20mm | 68mm | 200kgs |
| ES-8008 C | 1-1/4" | 42mm | 10mm | 1.5 * 20mm | 75mm | 200kgs |
| ES-8008 D | 1-1/2" | 48mm | 10mm | 1.5 * 20mm | 81mm | 200kgs |
| ES-8008 E | 2" | 60mm | 10mm | 1.5 * 20mm | 100mm | 200kgs |
| ES-8008 F | 2-1/2" | 73mm | 10mm | 2 * 32mm | 120mm | 450kgs |
| ES-8008 G | 3" | 89mm | 10mm | 2 * 32mm | 135mm | 450kgs |
| ES-8008 H | 3-1/2" | 105mm | 10mm | 2 * 32mm | 150mm | 450kgs |
| ES-8008 I | 4" | 115mm | 10mm | 2.5 * 32mm | 165mm | 500kgs |
| ES-8008 J | 5" | 140mm | 12mm | 2.5 * 40mm | 195mm | 550kgs |
| ES-8008 K | 6" | 168mm | 12mm | 3 * 40mm | 230mm | 700kgs |
| ES-8008 L | 8" | 219mm | 12mm | 3 * 50mm | 290mm | 700kgs |
| ES-8008 M | 10" | 273mm | 12mm | 3 * 50mm | 315mm | 700kgs |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the plugs body is made of high quality brass, every parts of the plugs are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. For internal packing, use small carton boxes or self sealing plastic bag, for external packing, use good quality corrugated carton. ELECMAN can follow any requirement of customers.
