| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | ES-8009 |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Corrugated Carton |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Carbon Steel | Surface Finish: | Zinc Plated, Hot-Dipped Galvanized |
|---|---|---|---|
| Type: | With Bolt & Nut | Size: | 1/2" - 4" |
| Usage: | Pipe Supports | Color: | Sliver |
| High Light: | EMT Conduit Pipe Hangers,2 inch Conduit Pipe Hangers,EMT 2 inch conduit hanger |
||

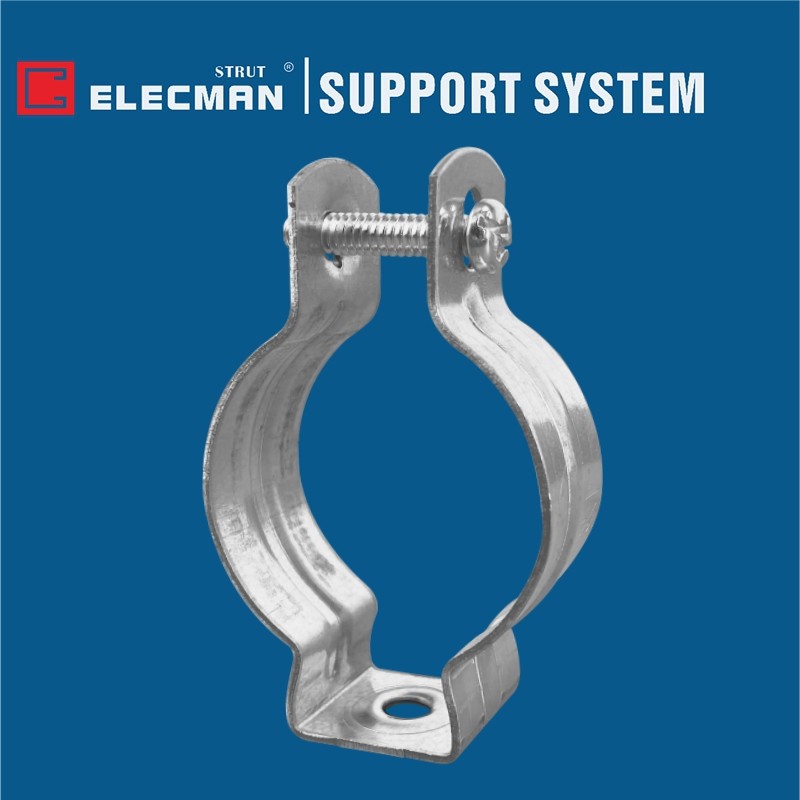

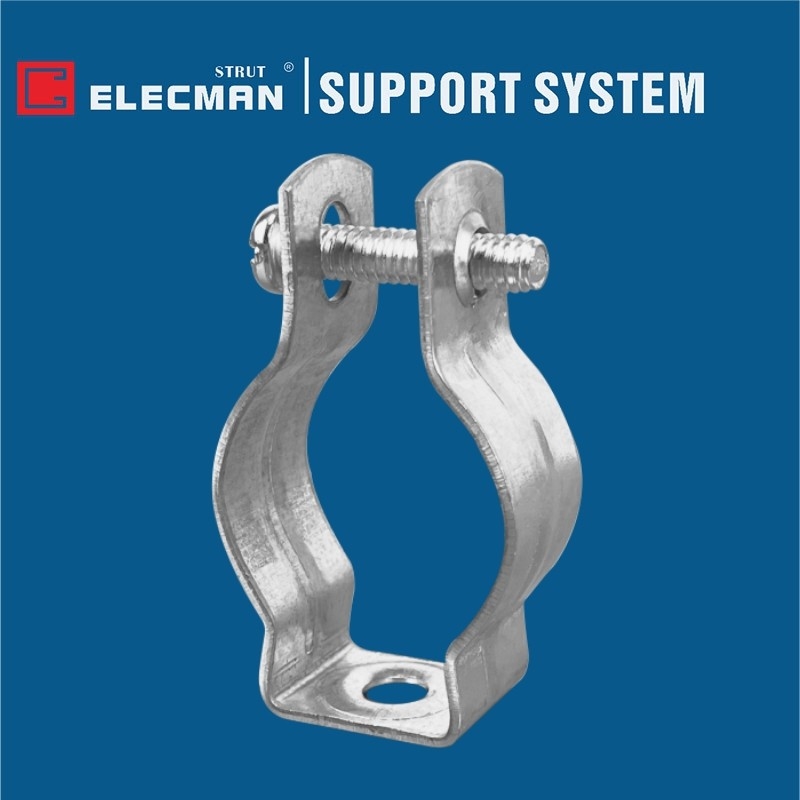

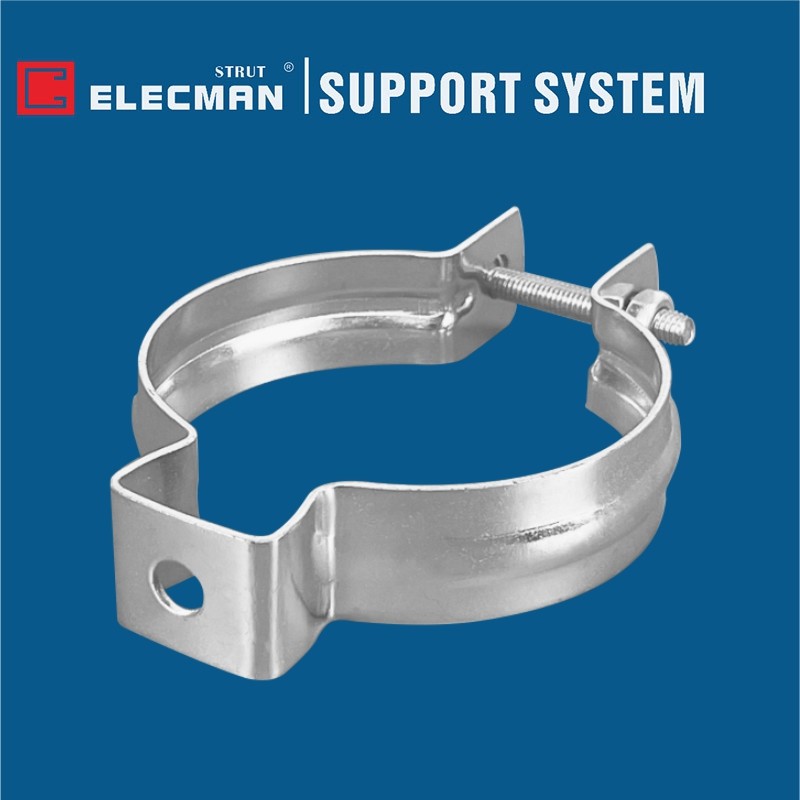

ELECMAN ® Universal Steel EMT Rigid Conduit Hanger With Attached Bolt & Nut
Applications
ELECMAN® Universal steel EMT Rigid conduit hangers with attached bolt & nut are used to support runs of EMT and Rigid conduit from ceilings and walls in dry or wet location. Bolt features slotted Phillips head and nut.
Features
Specification Data
ELECMAN provides full size universal steel EMT Rigid conduit hangers with attached bolt & nut.
| CAT # | Trade Size | Diameter(A) | H | B |
| ES-8009 A | 1/2" | 13/16" | 1-7/8" | 3/4" |
| ES-8009 B | 3/4" | 1" | 2-1/8" | 3/4" |
| ES-8009 C | 1" | 1-3/16" | 2-7/16" | 7/8" |
| ES-8009 D | 1-1/4" | 1-3/4" | 2-7/8" | 7/8" |
| ES-8009 E | 1-1/2" | 1-7/8" | 3-1/4" | 1" |
| ES-8009 F | 2" | 2-1/4" | 3-7/8" | 1" |
| ES-8009 G | 2-1/2" | 2-7/8" | 4-5/8" | 1-1/8" |
| ES-8009 H | 3" | 3-1/2" | 5-1/2" | 1-3/16" |
| ES-8009 I | 3-1/2" | 4" | 5-3/4" | 1-1/4" |
| ES-8009 J | 4" | 4-1/2" | 6-1/4" | 1-1/4" |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the plugs body is made of high quality brass, every parts of the plugs are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. For internal packing, use small carton boxes or self sealing plastic bag, for external packing, use good quality corrugated carton. ELECMAN can follow any requirement of customers.
