| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Model Number: | ES-6044 |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Electro-Galvanized, Plain, Green, Stainless Steel, Aluminum, Hot-Dipped Galvanized |
|---|---|---|---|
| Type: | Three Holes Type | Size: | 3-1/2" * 2-1/4" |
| Angle: | 90 Degree | Color: | Sliver |
| High Light: | Strut Angle Fittings L Bracket,ELECMAN Strut Angle Fittings,90 Degree 3 hole l bracket |
||

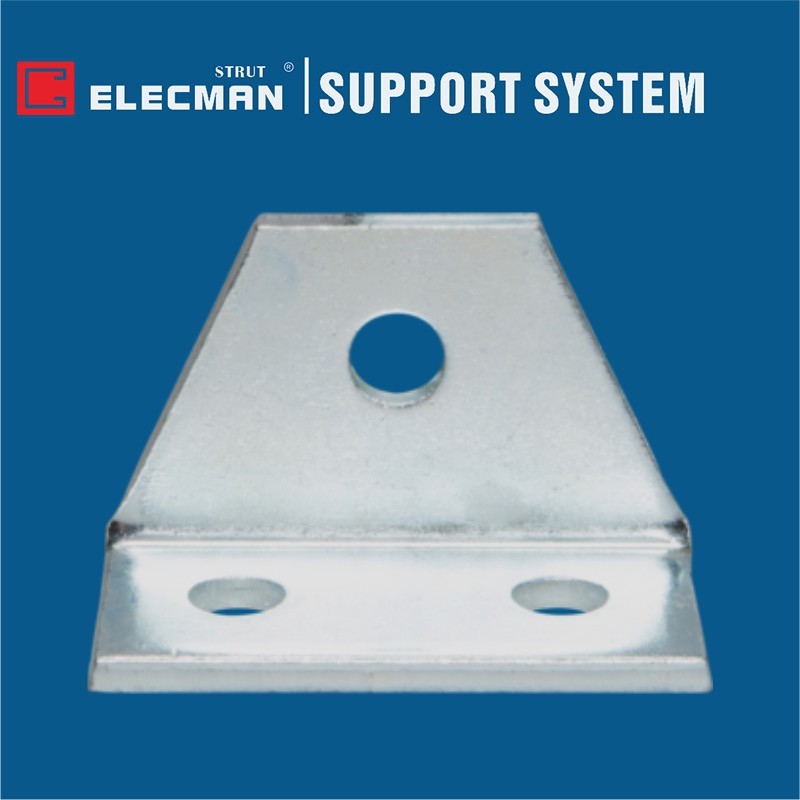

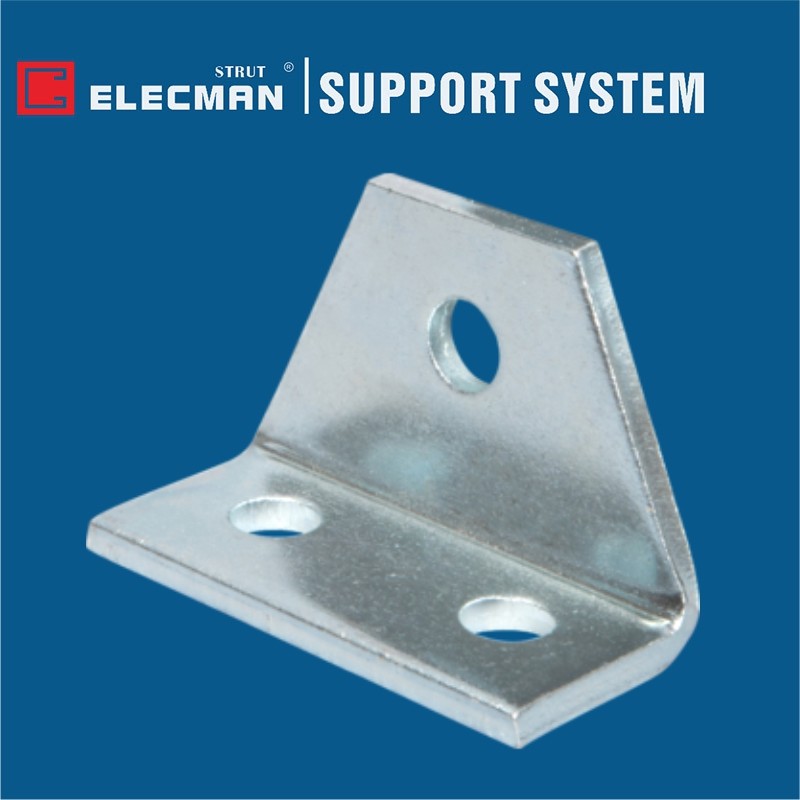

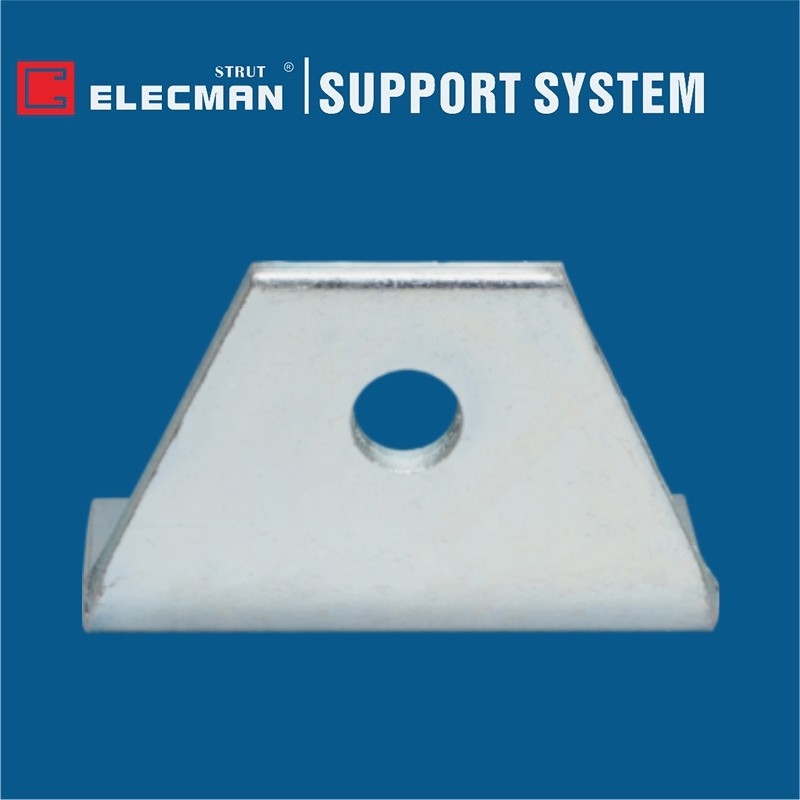

ELECMAN ® Galvanized Steel Three Holes Joint Angle Connector 3-1/2" * 2-1/4"
Applications
ELECMAN ® Galvanized steel three holes joint angle connectors are designed to marry two intersecting metal framing channels at a 90 degree angle, and used for strength/reinforcement and are electro galvanized for added durability. This particular connector is sized at 3-1/2" * 2-1/4" and features 3 holes for support.
Features
Specification Data
ELECMAN provides full size galvanized steel three holes joint angle connector 3-1/2" * 2-1/4".
| Cat.# | Length | Height | Width | Thickness | Hole Diameter | Hole Spacing End Distance | Hole Spacing Center to Center |
| ES-6044 | 3-1/2" | 2-1/4" | 1-5/8" | 1/4" | 9/16" | 13/16" | 1-7/8" |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the plugs body is made of high quality brass, every parts of the plugs are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. For internal packing, use small carton boxes or self sealing plastic bag, for external packing, use good quality corrugated carton. ELECMAN can follow any requirement of customers.
