| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Model Number: | ES-6026 |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Electro-Galvanized, Plain, Green, Stainless Steel, Aluminum, Hot-Dipped Galvanized |
|---|---|---|---|
| Type: | Two Hole Type | Thickness: | 1/4" |
| Shape: | Angle "L" | Color: | Sliver |
| High Light: | ELECMAN 90 degree angle strut bracket,90 degree angle strut bracket,Stainless Steel strut 90 bracket |
||

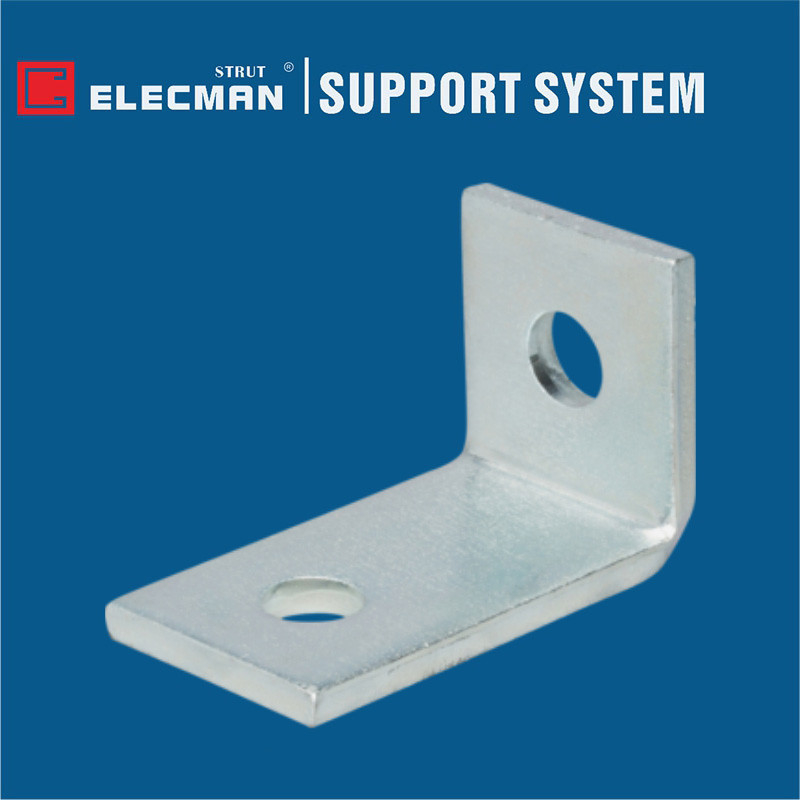

ELECMAN ® Galvanized Steel Two Holes Corner Angle
Applications
ELECMAN ® Galvanized steel two holes corner angle are used when a connection needs to be made and the angle is less than or greater than 90 degrees. Angle corner plates allow you to create a weldless connection on either the inside or outside of your strut channel depending on which fitting you choose and which way the mouth of your channel is facing.
Features
Specification Data
ELECMAN provides full size galvanized steel two holes corner angle 1-7/8".
| Cat.# | Length | Height | Width | Thickness | Hole Diameter | Hole Spacing End Distance | Hole Spacing Center to Center |
| ES-6025 A | 3" | 1-7/8" | 1-5/8" | 1/4" | 9/16" | 13/16" | 1-7/8" |
| ES-6025 B | 3-1/2" | ||||||
| ES-6025 C | 4" |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the plugs body is made of high quality brass, every parts of the plugs are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. For internal packing, use small carton boxes or self sealing plastic bag, for external packing, use good quality corrugated carton. ELECMAN can follow any requirement of customers.
