| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | JSB |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Bundles with Woven Bag |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | PVC & Steel | Surface Finish: | PVC Coated |
|---|---|---|---|
| Size: | 1/4" - 4" | Color: | Black & Grey |
| IP Rating: | IP64 & IP65 | Section Shape: | Round |
| High Light: | Waterproof liquid tight flexible conduit,GI liquid tight flexible conduit,GI liquidtight conduit |
||

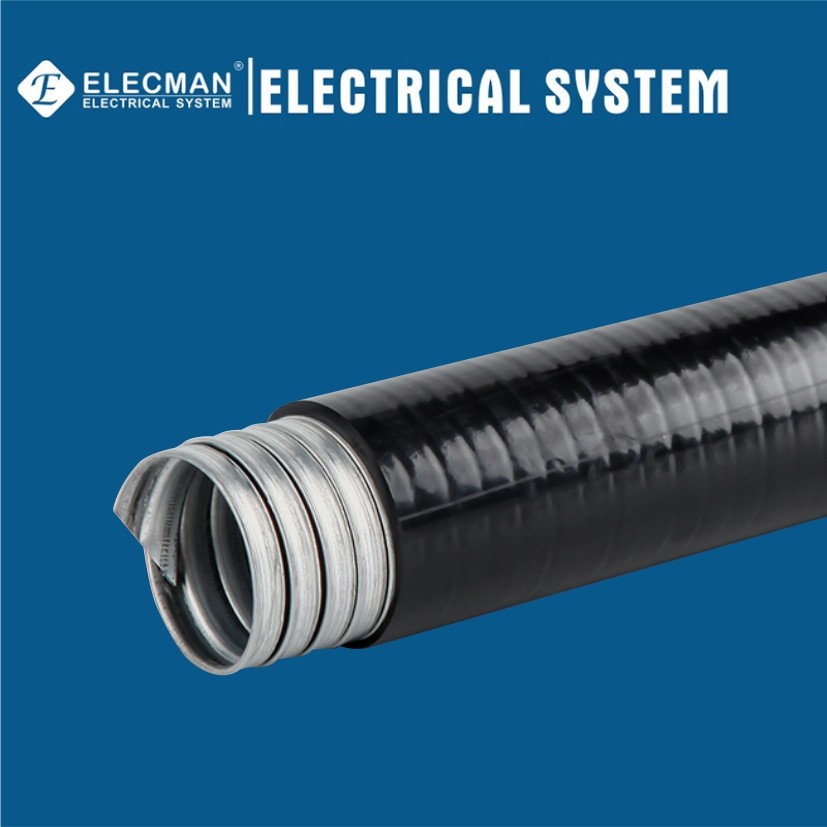

ELECMAN ® Liquid Tight Waterproof Gi Flexible/Corrugated Metal Steel Grey/Black Conduit
Applications
ELECMAN ® Liquid tight waterproof Gi flexible/corrugated metal steel grey/black conduit is manufactured from an galvanized steel flexible inner core which is pressure coated with an oil resistant, high temperature grade of plasticised PVC. The PVC is keyed into the corrugations of the inner steel flexible core, which prevents the PVC from wrinkling when the conduit is bent to its minimum bend radius. The PVC coating provides a smooth outer surface onto which liquid tight compression fittings can be secured. Liquidtight metal conduit offers high mechanical strength combined with complete protection against liquids and dust.
ELECMAN ® Liquid tight waterproof Gi flexible/corrugated metal steel grey/black conduit is suitable for use in a variety of environments and applications from general purpose wiring in wet or damp locations, to direct burial and in concrete embedment, to raised computer room floors and site lighting jobs.
Features
Certifications and Compliances
ELECMAN® Liquid tight waterproof Gi flexible/corrugated metal steel grey/black conduits shall be produced to the following specification:
Specification Data
ELECMAN provides full size liquid tight waterproof Gi flexible/corrugated metal steel grey/black conduit from 1/4" to 4".
| CAT # | Trade size | Inside Diameter | Outside Diameter | Bending Radius | Length | ||
| MIN(mm) | MAX(mm) | MIN(mm) | MAX(mm) | m/Roll | |||
| JSB-025 | 1/4" | 6.20 | 6.70 | 11.40 | 11.90 | 35 | 100 |
| JSB-038 | 3/8" | 12.30 | 12.80 | 17.50 | 18.00 | 60 | 100 |
| JSB-050 | 1/2" | 15.80 | 16.30 | 20.80 | 21.30 | 85 | 50 |
| JSB-075 | 3/4" | 20.70 | 21.20 | 26.30 | 26.70 | 100 | 50 |
| JSB-100 | 1" | 26.20 | 26.60 | 32.70 | 33.40 | 150 | 50 |
| JSB-125 | 1-1/4" | 34.80 | 35.40 | 41.40 | 42.20 | 180 | 25 |
| JSB-150 | 1-1/2" | 40.10 | 40.60 | 47.40 | 48.30 | 220 | 25 |
| JSB-200 | 2" | 51.30 | 51.90 | 59.40 | 60.30 | 250 | 25 |
| JSB-250 | 2-1/2" | 63.00 | 63.60 | 72.10 | 73.00 | 300 | 10 |
| JSB-300 | 3" | 78.00 | 78.70 | 87.90 | 88.90 | 450 | 10 |
| JSB-400 | 4" | 101.60 | 102.60 | 113.20 | 114.30 | 600 | 10 |
| Notes: Length of roll can be made according to customers' requirements. Black Color or Gray Color is available. |
|||||||
Quality Control
Every ELECMAN people know deeply the core value of ELECMAN is to provide high quality products to customers, that is why ELECMAN QC departments have very strict quality controlling process, from raw material to products, ELECMAN QC department supervise every process, make sure every process follow the standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for electrical flexible conduits, from 1/4" to 4", ELECMAN provide flexible conduits are packed in rolls for internal, used good quality corrugated carton for external packing. ELECMAN can follow any packing requirements of customers.
