| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | JS |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Bundles with Woven Bag |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Galvanized |
|---|---|---|---|
| Size: | 1/4" To 6" | Color: | Sliver |
| Structure: | Square Lock | IP Rating: | IP65 |
| High Light: | GI Metallic Flexible Conduit,Metallic Flexible Conduit hose,GI flexible conduit hose |
||

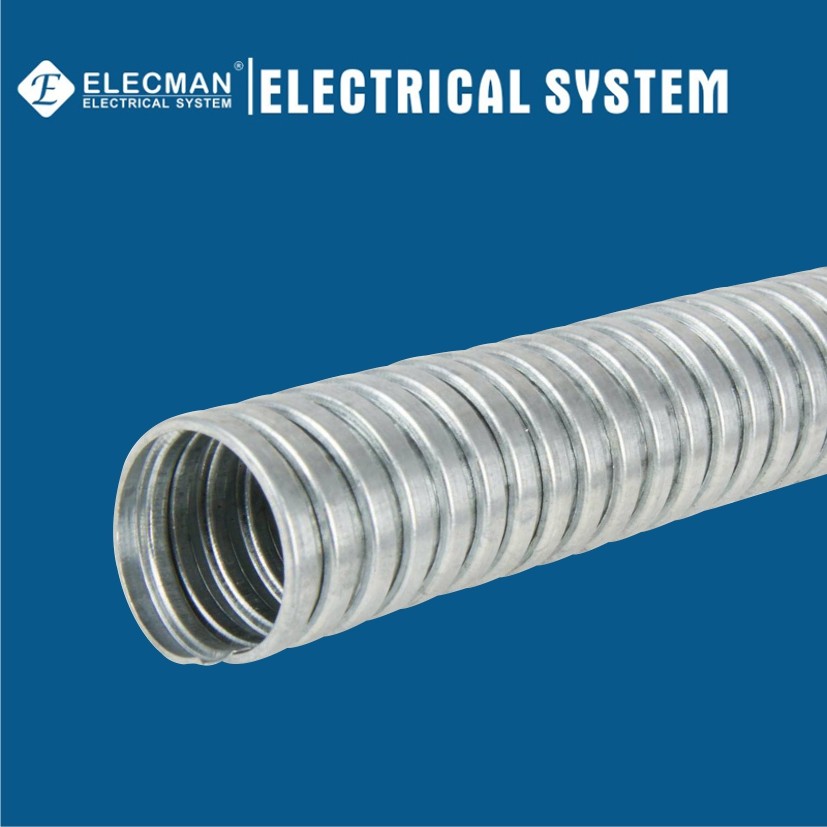

ELECMAN ® 1/4" To 6" Metallic Flexible Conduit UL Standard GI Flexible Steel Hose
Applications
ELECMAN ® 1/4" to 6" metallic flexible conduit UL standard GI flexible steel hose is used to flexible metal raceway for electrical power, control and cable communications. Flexible steel conduit is ideal for installations in close quarters which require extra flexibility. This conduit is made with high-grade galvanized steel to provide an excellent combination of strength and durability, and the interlocking design features continuous metal strips to offer integrity and flexibility.
Features
Certifications and Compliances
ELECMAN® 1/4" to 6" metallic flexible conduits shall be produced to the following specification:
Specification Data
ELECMAN provides UL listed metallic flexible conduits from 1/4" to 6".
| CAT # | Trade size | Inside Diameter | Outside Diameter | Bending Radius | Length | ||
| MIN(mm) | MAX(mm) | MIN(mm) | MAX(mm) | m/Roll | |||
| JS-025 | 1/4" | 9.70 | 10.20 | 13.50 | 14.00 | 40 | 100 |
| JS-038 | 3/8" | 12.30 | 12.80 | 15.70 | 16.20 | 50 | 100 |
| JS-050 | 1/2" | 15.80 | 16.30 | 19.20 | 19.70 | 65 | 50 |
| JS-075 | 3/4" | 20.70 | 21.20 | 24.50 | 25.10 | 75 | 50 |
| JS-100 | 1" | 26.00 | 26.60 | 30.40 | 31.00 | 100 | 50 |
| JS-125 | 1-1/4" | 34.70 | 35.40 | 39.60 | 40.30 | 125 | 25 |
| JS-150 | 1-1/2" | 40.00 | 40.60 | 45.20 | 48.80 | 150 | 25 |
| JS-200 | 2" | 51.30 | 51.90 | 56.50 | 57.10 | 175 | 25 |
| JS-250 | 2-1/2" | 63.00 | 63.60 | 70.20 | 70.80 | 200 | 10 |
| JS-300 | 3" | 78.00 | 78.70 | 85.20 | 85.90 | 225 | 10 |
| JS-400 | 4" | 101.60 | 102.60 | 108.50 | 109.50 | 275 | 10 |
| JS-500 | 5" | 125.00 | 127.00 | 135.00 | 137.00 | 300 | 5 |
| JS-600 | 6" | 150.00 | 153.00 | 160.00 | 162.00 | 400 | 5 |
| Notes:Length of roll can be made according to customers' requirements. | |||||||
Quality Control
Every ELECMAN people know deeply the core value of ELECMAN is to provide high quality products to customers, that is why ELECMAN QC departments have very strict quality controlling process, from raw material to products, ELECMAN QC department supervise every process, make sure every process follow the standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for electrical flexible conduits, from 1/4" to 6", ELECMAN provide flexible conduits are packed in rolls for internal, used good quality corrugated carton for external packing. ELECMAN can follow any packing requirements of customers.
