| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | JSB |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Bundles with Woven Bag |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | PVC & Steel | Surface Finish: | PVC Coated |
|---|---|---|---|
| Size: | 1/4" - 4" | Color: | Black & Grey |
| IP Rating: | IP64 & IP65 | Section Shape: | Round |
| High Light: | Liquid Tight Electrical Flexible Conduits,Black Galvanized Electrical Flexible Conduits,Liquid Tight flexible conduit hose |
||

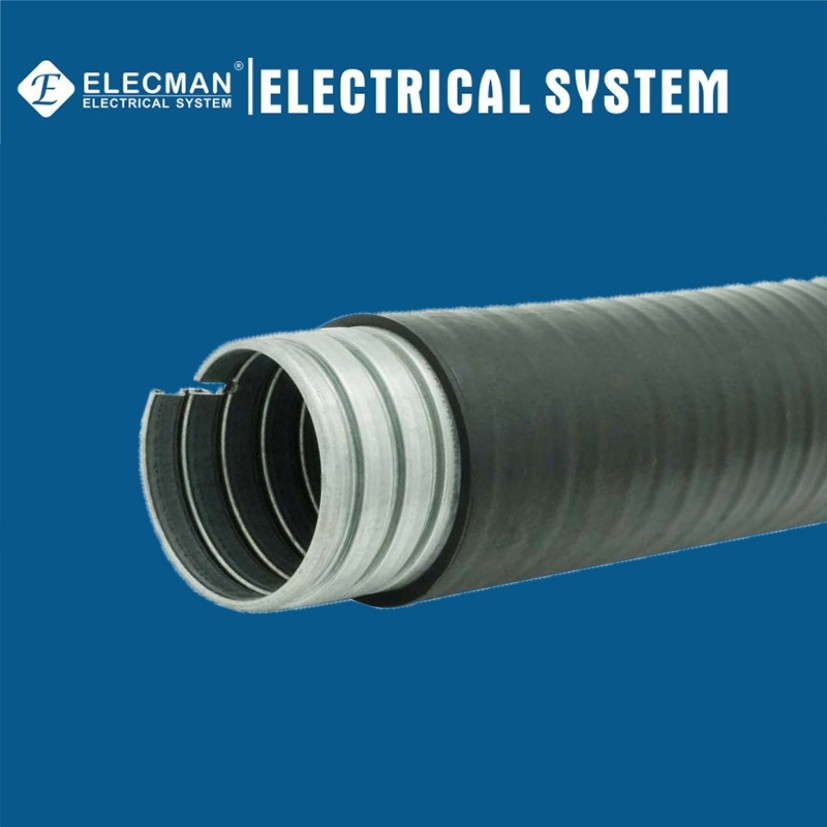

ELECMAN ® Liquid Tight Flexible Steel Conduit 3/4 Inch Black Galvanized Flexible Hose
Applications
ELECMAN ® Liquid tight flexible steel conduit is also known as seal tight conduit. flexible liquidtight metallic conduit is fabricated with a crush and corrosion resistant steel core to ensure lasting mechanical protection, helping to avoid rework and downtime costs. PVC jacket is oil and sunlight resistant; smooth interior promotes easy wire pull through. Pair with liquidtight connectors for simple installation
Features
Certifications and Compliances
ELECMAN® Liquid tight flexible steel conduit shall be produced to the following specification:
Specification Data
ELECMAN provides full size liquid tight flexible steel conduit from 1/4" to 4".
| CAT # | Trade size | Inside Diameter | Outside Diameter | Bending Radius | Length | ||
| MIN(mm) | MAX(mm) | MIN(mm) | MAX(mm) | m/Roll | |||
| JSB-025 | 1/4" | 6.20 | 6.70 | 11.40 | 11.90 | 35 | 100 |
| JSB-038 | 3/8" | 12.30 | 12.80 | 17.50 | 18.00 | 60 | 100 |
| JSB-050 | 1/2" | 15.80 | 16.30 | 20.80 | 21.30 | 85 | 50 |
| JSB-075 | 3/4" | 20.70 | 21.20 | 26.30 | 26.70 | 100 | 50 |
| JSB-100 | 1" | 26.20 | 26.60 | 32.70 | 33.40 | 150 | 50 |
| JSB-125 | 1-1/4" | 34.80 | 35.40 | 41.40 | 42.20 | 180 | 25 |
| JSB-150 | 1-1/2" | 40.10 | 40.60 | 47.40 | 48.30 | 220 | 25 |
| JSB-200 | 2" | 51.30 | 51.90 | 59.40 | 60.30 | 250 | 25 |
| JSB-250 | 2-1/2" | 63.00 | 63.60 | 72.10 | 73.00 | 300 | 10 |
| JSB-300 | 3" | 78.00 | 78.70 | 87.90 | 88.90 | 450 | 10 |
| JSB-400 | 4" | 101.60 | 102.60 | 113.20 | 114.30 | 600 | 10 |
| Notes: Length of roll can be made according to customers' requirements. Black Color or Gray Color is available. |
|||||||
Quality Control
Every ELECMAN people know deeply the core value of ELECMAN is to provide high quality products to customers, that is why ELECMAN QC departments have very strict quality controlling process, from raw material to products, ELECMAN QC department supervise every process, make sure every process follow the standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for electrical flexible conduits, from 1/4" to 4", ELECMAN provide flexible conduits are packed in rolls for internal, used good quality corrugated carton for external packing. ELECMAN can follow any packing requirements of customers.
