Malleable Iron Threaded IMC Rigid Form 5 Conduit Bodies X Type 1/2" - 4"

ELECMAN ® Form 5 Malleable Iron 1/2" - 4" IMC/Rigid Conduit Body Threaded X Type

Applications

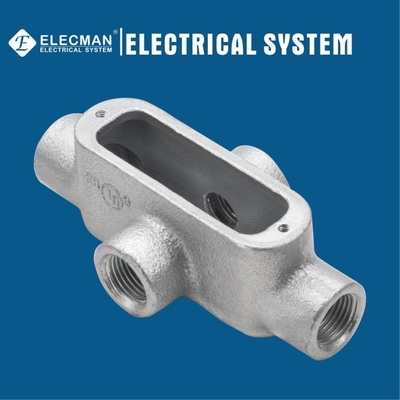

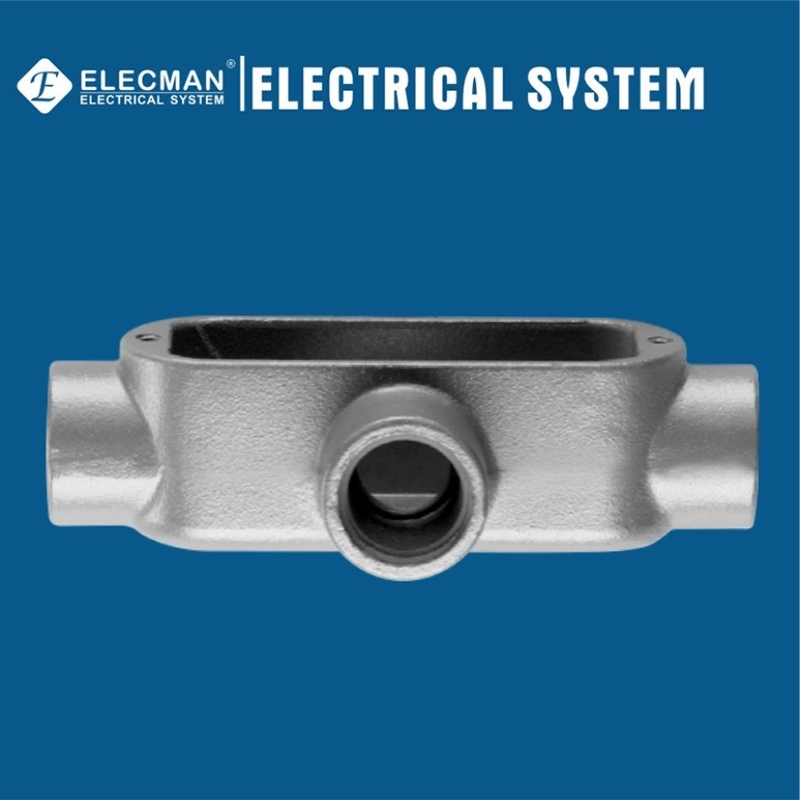

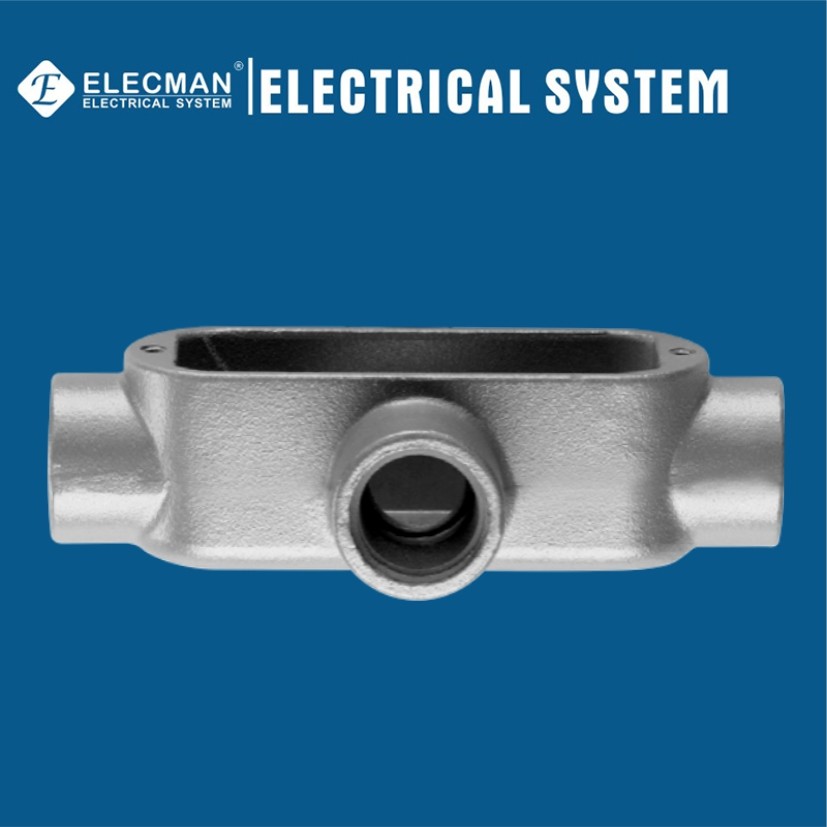

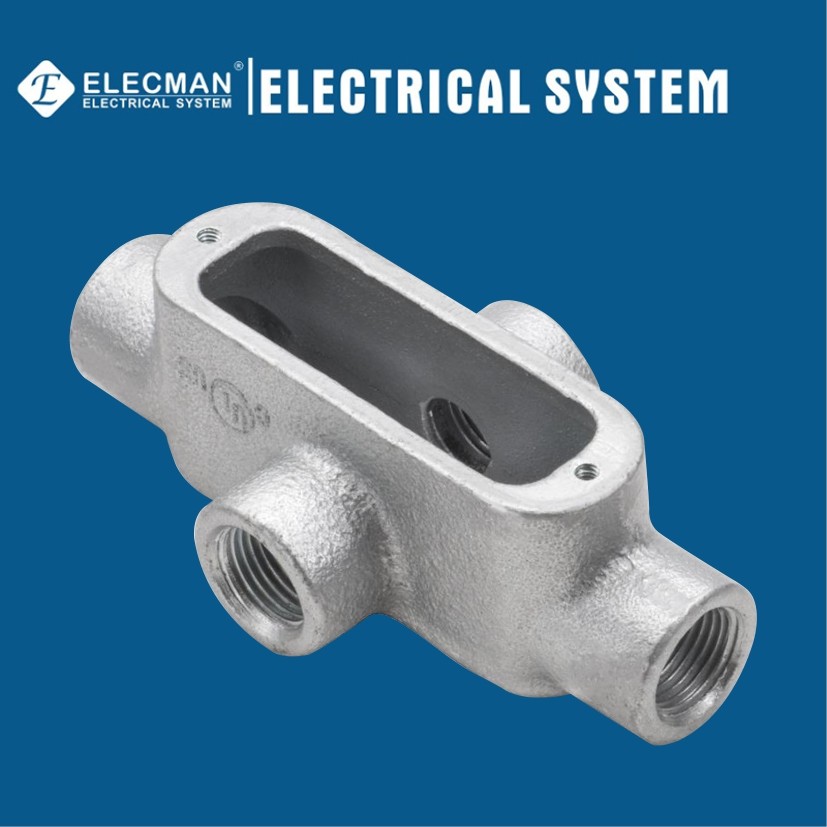

ELECMAN ® Form 5 malleable iron 1/2" - 4" IMC/Rigid conduit bodies provide access for wire pulling or straight lines. They also provide an opportunity for a bend where there isn't enough space on the wall. The different types are all based on the shape of the conduit bodies. Each type of conduit body has an access, inlet and outlet. The location of the inlet and outlet in relation to the conduit body determines the body's shape.

Features

• Interchangeable with Appleton Form 35 conduit bodies.
• Built-in rollers on 11/4” to 4” C and LB bodies to facilitate wire pulling.
• Smooth and rounded integral bushings for protection of wire insulation
• Solid neoprene gaskets may be converted to open type by pulling out perforated center section.
• Stainless steel cover screws.
• Domed sheet steel covers provide additional cubic capacity.
• Integral gasket cover provides NEMA 4 rating.

Certifications and Compliances

ELECMAN® Form 5 malleable iron IMC/Rigid conduit bodies threaded X type are produced to the following specifications:

• UL Standard 514A
• Fed.Spec. W-C-586D
• NEMA:FB-1
• NEMA 4

Specification Data

ELECMAN provides full size form 5 malleable iron IMC/Rigid conduit bodies threaded X type.

FORM 5 Threaded Conduit Bodies - X Type
Malleable Iron
	CAT #	Trade Size	Dim A	Dim B	Dim C
	MX050	1/2"	1-5/16"	5-1/4"	1-5/16"
	MX075	3/4"	1-9/16"	6-1/16"	1-9/16"
	MX100	1"	1-13/16"	7-1/8"	1-13/16"
	MX125	1-1/4"	2-7/16"	9-5/16"	3-3/4"
	MX150	1-1/2"	2-9/16"	9-5/16"	3-3/4"
	MX200	2"	3-3/16"	11-13/16"	4-1/8"

Packing Information

Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. For internal packing, use small carton boxes or self sealing plastic bag, for external packing, use good quality corrugated carton. ELECMAN can follow any requirement of customers.

More Specifications

ELECMAN provides more specification and type form 5 malleable iron IMC/Rigid conduit bodies threaded type.

FORM 5 Conduit Body LB Type(threaded type)
CAT #	Trade Size	Dim A	Dim B	Dim C	Description	Pictures
MLB050	1/2"	1-5/16"	4-11/16"	2-1/16"	Malleable Iron LB Type Threaded Connection
MLB075	3/4"	1-1/2"	5-3/8"	2-1/4"
MLB100	1"	1-13/16"	6-3/16"	2-5/8"
MLB125	1-1/4"	2-5/8"	8-1/8"	2-3/4"
MLB150	1-1/2"	2-5/8"	8-1/8"	2-13/16"
MLB200	2"	3-1/8"	10-1/2"	4-7/16"
MLB250	2-1/2"	4-5/16"	13-7/8"	5-3/8"
MLB300	3"	4-5/16"	13-7/8"	5-7/8"
MLB325	3-1/2"	5-5/8"	16-1/4"	6-7/8"
MLB400	4"	5-5/8"	16-5/8"	7-3/16"
FORM 5 Conduit Body LL Type(threaded type)
CAT #	Trade Size	Dim A	Dim B	Dim C	Description	Pictures
MLL050	1/2"	2-1/16"	4-11/16"	1-3/8"	Malleable Iron LL Type Threaded Connection
MLL075	3/4"	2-1/4"	5-3/8"	1-11/16"
MLL100	1"	2-5/8"	6-3/16"	1-7/8"
MLL125	1-1/4"	2-3/4"	8-1/8"	2-3/4"
MLL150	1-1/2"	3-1/2"	8-1/8"	2-13/16"
MLL200	2"	4-1/8"	10-1/2"	3-5/16"
MLL250	2-1/2"	4-11/16"	13-5/8"	3-7/8"
MLL300	3"	5-7/8"	13-7/8"	4-3/4"
MLL325	3-1/2"	6-1/8"	16-1/4"	5-5/8"
MLL400	4"	6-15/16"	16-1/4"	5-5/8"
FORM 5 Conduit Body LR Type(threaded type)
CAT #	Trade Size	Dim A	Dim B	Dim C	Description	Pictures
MLR050	1/2"	2-1/16"	4-11/16"	1-3/8"	Malleable Iron LR Type Threaded Connection
MLR075	3/4"	2-1/4"	5-3/8"	1-11/16"
MLR100	1"	2-5/8"	6-3/16"	1-7/8"
MLR125	1-1/4"	2-3/4"	8-1/8"	2-3/4"
MLR150	1-1/2"	2-13/16"	8-1/8"	2-13/16"
MLR200	2"	4-7/16"	10-1/2"	3-5/16"
MLR250	2-1/2"	5-3/8"	13-5/8"	3-7/8"
MLR300	3"	5-7/8"	13-7/8"	4-3/4"
MLR325	3-1/2"	6-7/8"	16-1/4"	5-5/8"
MLR400	4"	7-3/16"	16-5/8"	5-5/8"
FORM 5 Conduit Body C Type(threaded type)
CAT #	Trade Size	Dim A	Dim B	Dim C	Description	Pictures
MC050	1/2"	1-5/16"	5-3/8"	1-3/8"	Malleable Iron C Type Threaded Connection
MC075	3/4"	1-1/2"	6"	1-11/16"
MC100	1"	1-13/16"	7-1/16"	1-7/8"
MC125	1-1/4"	2-5/8"	9"	2-3/4"
MC150	1-1/2"	2-5/8"	9"	2-13/16"
MC200	2"	3-1/8"	11-1/2"	3-5/16"
MC250	2-1/2"	4-5/16"	15"	3-7/8"
MC300	3"	4-5/16"	15-1/8"	4-3/4"
MC325	3-1/2"	4-7/8"	18-1/8"	5-5/8"
MC400	4"	4-7/8"	18-1/8"	5-5/8"
FORM 5 Conduit Body T Type(threaded type)
CAT #	Trade Size	Dim A	Dim B	Dim C	Description	Pictures
MT050	1/2"	2-1/16"	5-3/8"	1-5/16"	Malleable Iron T Type Threaded Connection
MT075	3/4"	2-1/4"	6"	1-1/2"
MT100	1"	2-5/8"	7-1/16"	1-13/16"
MT125	1-1/4"	2-3/4"	9"	2-5/8"
MT150	1-1/2"	3-1/2"	9"	2-5/8"
MT200	2"	4-1/8"	11-1/2"	3-1/8"
MT250	2-1/2"	5-11/16"	15"	4-5/16"
MT300	3"	5-7/8"	15-1/8"	4-5/16"
MT325	3-1/2"	6-13/16"	18-1/8"	4-7/8"
MT400	4"	7-3/16"	18-1/8"	4-7/8“
FORM 5 Conduit Body TB Type(threaded type)
CAT #	Trade Size	Dim A	Dim B	Dim C	Description	Pictures
MTB050	1/2"	1-5/16"	5-1/4"	1-5/16"	Malleable Iron TB Type Threaded Connection
MTB075	3/4"	1-9/16"	6-1/16"	1-9/16"
MTB100	1"	1-13/16"	7-1/8"	1-13/16"
MTB125	1-1/4"	2-7/16"	9-5/16"	3-3/4"
MTB150	1-1/2"	2-9/16"	9-5/16"	3-3/4"
MTB200	2"	3-3/16"	11-13/16"	4-1/8"
FORM 5 Conduit Body X Type(threaded type)
CAT #	Trade Size	Dim A	Dim B	Dim C	Description	Pictures
MX050	1/2"	2-13/16"	5-7/16"	1-3/4"	Malleable Iron X Type Threaded Connection
MX075	3/4"	2-15/16"	6-1/16"	2"
MX100	1"	3-9/16"	7-1/8"	2-1/4"
MX125	1-1/4"	4-7/16"	9-1/8"	2-9/16"
MX150	1-1/2"	4-7/16"	9-1/8"	2-3/4"
MX200	2"	5-3/8"	11-3/4"	3-7/16"
