IMC Rigid Form 5 Condulet Malleable Iron Threaded LL Conduit Body 4"

ELECMAN ® Form 5 Malleable Iron 1/2" - 4" IMC/Rigid Conduit Body Threaded LL Type

Applications

ELECMAN ® Form 5 malleable iron 1/2" - 4" IMC/Rigid conduit bodies threaded LL type permit 90°back bends in conduit systems, provide easy access for splicing and can correct and change direction of conduit runs.

Features

• Interchangeable with Appleton Form 35 conduit bodies.
• Built-in rollers on 11/4” to 4” C and LB bodies to facilitate wire pulling.
• Smooth and rounded integral bushings for protection of wire insulation
• Solid neoprene gaskets may be converted to open type by pulling out perforated center section.
• Stainless steel cover screws.
• Domed sheet steel covers provide additional cubic capacity.
• Integral gasket cover provides NEMA 4 rating.

Certifications and Compliances

ELECMAN® Form 5 malleable iron IMC/Rigid conduit bodies threaded LL type are produced to the following specifications:

• UL Standard 514A
• Fed.Spec. W-C-586D
• NEMA:FB-1
• NEMA 4

Specification Data

ELECMAN provides full size form 5 malleable iron IMC/Rigid conduit bodies threaded LL type.

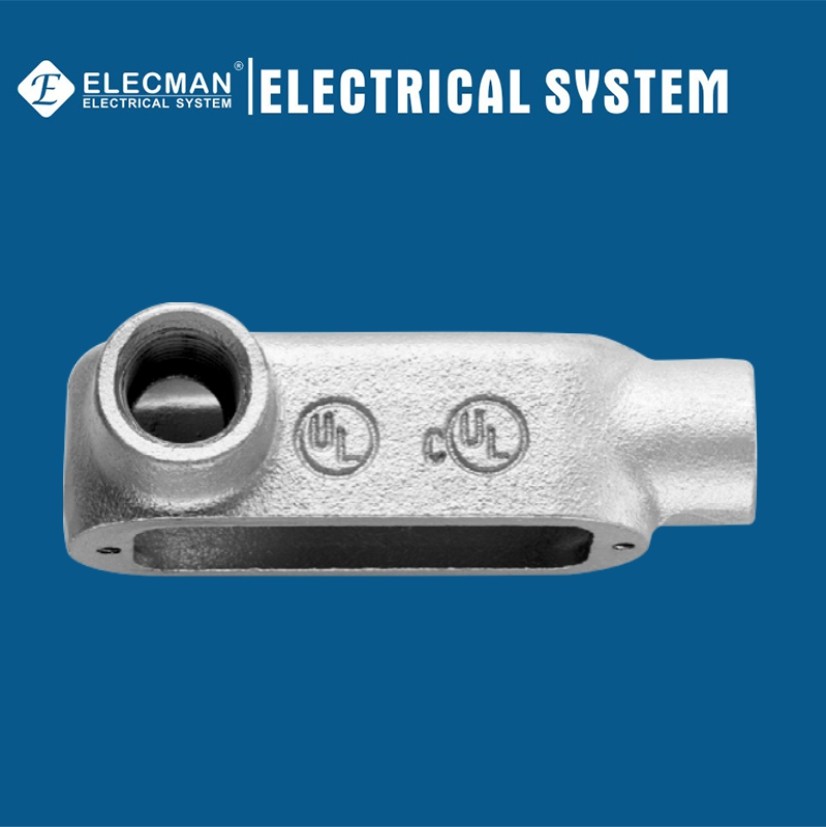

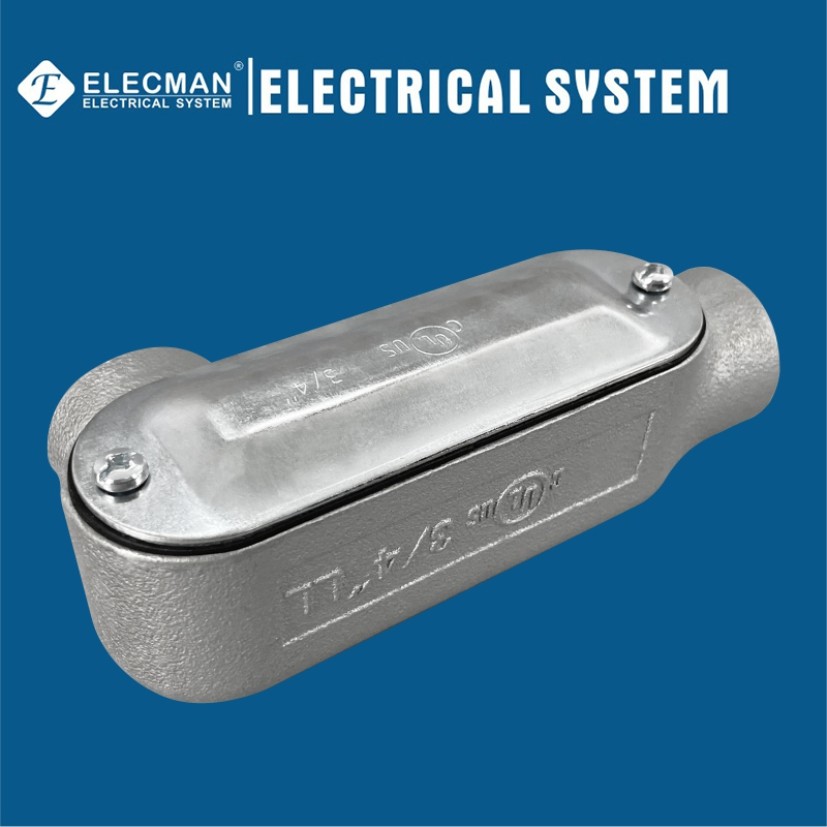

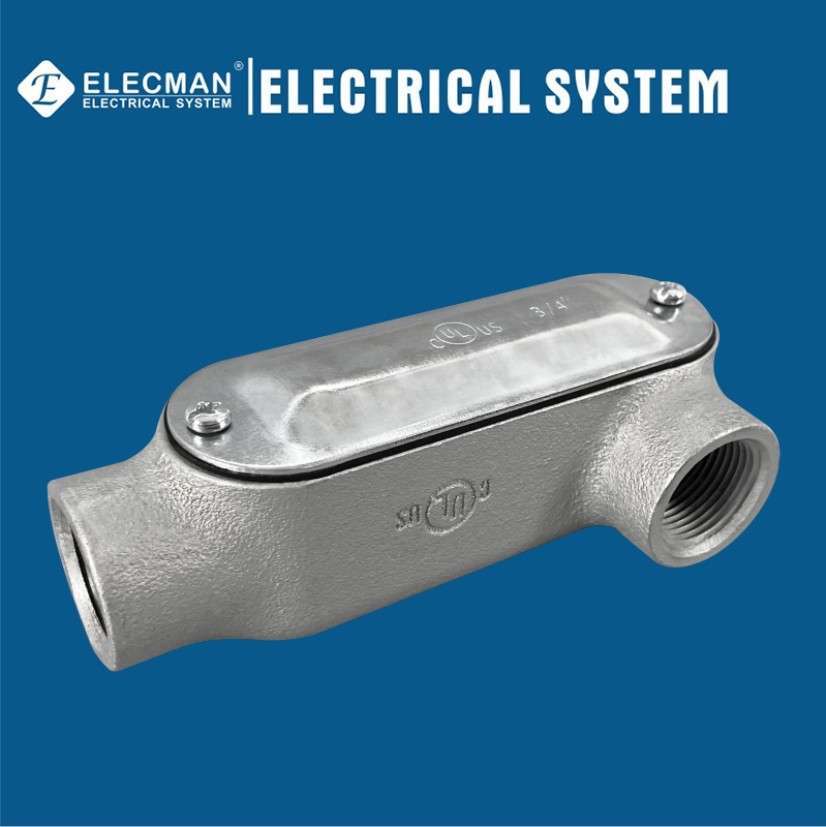

Form 5 Threaded Conduit Bodies - LL Type
Malleable Iron
	CAT #	Trade Size	Dim A	Dim B	Dim C
	MLL050	1/2"	2-1/16"	4-11/16"	1-3/8"
	MLL075	3/4"	2-1/4"	5-3/8"	1-11/16"
	MLL100	1"	2-5/8"	6-3/16"	1-7/8"
	MLL125	1-1/4"	2-3/4"	8-1/8"	2-3/4"
	MLL150	1-1/2"	3-1/2"	8-1/8"	2-13/16"
	MLL200	2"	4-1/8"	10-1/2"	3-5/16"
	MLL250	2-1/2"	4-11/16"	13-5/8"	3-7/8"
	MLL300	3"	5-7/8"	13-7/8"	4-3/4"
	MLL325	3-1/2"	6-1/8"	16-1/4"	5-5/8"
	MLL400	4"	6-15/16"	16-1/4"	5-5/8"

Packing Information

Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. For internal packing, use small carton boxes or self sealing plastic bag, for external packing, use good quality corrugated carton. ELECMAN can follow any requirement of customers.

More Specifications

ELECMAN provides more specification and type form 5 malleable iron IMC/Rigid conduit bodies threaded type.

FORM 5 Conduit Body LB Type(threaded type)
CAT #	Trade Size	Dim A	Dim B	Dim C	Description	Pictures
MLB050	1/2"	1-5/16"	4-11/16"	2-1/16"	Malleable Iron LB Type Threaded Connection
MLB075	3/4"	1-1/2"	5-3/8"	2-1/4"
MLB100	1"	1-13/16"	6-3/16"	2-5/8"
MLB125	1-1/4"	2-5/8"	8-1/8"	2-3/4"
MLB150	1-1/2"	2-5/8"	8-1/8"	2-13/16"
MLB200	2"	3-1/8"	10-1/2"	4-7/16"
MLB250	2-1/2"	4-5/16"	13-7/8"	5-3/8"
MLB300	3"	4-5/16"	13-7/8"	5-7/8"
MLB325	3-1/2"	5-5/8"	16-1/4"	6-7/8"
MLB400	4"	5-5/8"	16-5/8"	7-3/16"
FORM 5 Conduit Body LL Type(threaded type)
CAT #	Trade Size	Dim A	Dim B	Dim C	Description	Pictures
MLL050	1/2"	2-1/16"	4-11/16"	1-3/8"	Malleable Iron LL Type Threaded Connection
MLL075	3/4"	2-1/4"	5-3/8"	1-11/16"
MLL100	1"	2-5/8"	6-3/16"	1-7/8"
MLL125	1-1/4"	2-3/4"	8-1/8"	2-3/4"
MLL150	1-1/2"	3-1/2"	8-1/8"	2-13/16"
MLL200	2"	4-1/8"	10-1/2"	3-5/16"
MLL250	2-1/2"	4-11/16"	13-5/8"	3-7/8"
MLL300	3"	5-7/8"	13-7/8"	4-3/4"
MLL325	3-1/2"	6-1/8"	16-1/4"	5-5/8"
MLL400	4"	6-15/16"	16-1/4"	5-5/8"
FORM 5 Conduit Body LR Type(threaded type)
CAT #	Trade Size	Dim A	Dim B	Dim C	Description	Pictures
MLR050	1/2"	2-1/16"	4-11/16"	1-3/8"	Malleable Iron LR Type Threaded Connection
MLR075	3/4"	2-1/4"	5-3/8"	1-11/16"
MLR100	1"	2-5/8"	6-3/16"	1-7/8"
MLR125	1-1/4"	2-3/4"	8-1/8"	2-3/4"
MLR150	1-1/2"	2-13/16"	8-1/8"	2-13/16"
MLR200	2"	4-7/16"	10-1/2"	3-5/16"
MLR250	2-1/2"	5-3/8"	13-5/8"	3-7/8"
MLR300	3"	5-7/8"	13-7/8"	4-3/4"
MLR325	3-1/2"	6-7/8"	16-1/4"	5-5/8"
MLR400	4"	7-3/16"	16-5/8"	5-5/8"
FORM 5 Conduit Body C Type(threaded type)
CAT #	Trade Size	Dim A	Dim B	Dim C	Description	Pictures
MC050	1/2"	1-5/16"	5-3/8"	1-3/8"	Malleable Iron C Type Threaded Connection
MC075	3/4"	1-1/2"	6"	1-11/16"
MC100	1"	1-13/16"	7-1/16"	1-7/8"
MC125	1-1/4"	2-5/8"	9"	2-3/4"
MC150	1-1/2"	2-5/8"	9"	2-13/16"
MC200	2"	3-1/8"	11-1/2"	3-5/16"
MC250	2-1/2"	4-5/16"	15"	3-7/8"
MC300	3"	4-5/16"	15-1/8"	4-3/4"
MC325	3-1/2"	4-7/8"	18-1/8"	5-5/8"
MC400	4"	4-7/8"	18-1/8"	5-5/8"
FORM 5 Conduit Body T Type(threaded type)
CAT #	Trade Size	Dim A	Dim B	Dim C	Description	Pictures
MT050	1/2"	2-1/16"	5-3/8"	1-5/16"	Malleable Iron T Type Threaded Connection
MT075	3/4"	2-1/4"	6"	1-1/2"
MT100	1"	2-5/8"	7-1/16"	1-13/16"
MT125	1-1/4"	2-3/4"	9"	2-5/8"
MT150	1-1/2"	3-1/2"	9"	2-5/8"
MT200	2"	4-1/8"	11-1/2"	3-1/8"
MT250	2-1/2"	5-11/16"	15"	4-5/16"
MT300	3"	5-7/8"	15-1/8"	4-5/16"
MT325	3-1/2"	6-13/16"	18-1/8"	4-7/8"
MT400	4"	7-3/16"	18-1/8"	4-7/8“
FORM 5 Conduit Body TB Type(threaded type)
CAT #	Trade Size	Dim A	Dim B	Dim C	Description	Pictures
MTB050	1/2"	1-5/16"	5-1/4"	1-5/16"	Malleable Iron TB Type Threaded Connection
MTB075	3/4"	1-9/16"	6-1/16"	1-9/16"
MTB100	1"	1-13/16"	7-1/8"	1-13/16"
MTB125	1-1/4"	2-7/16"	9-5/16"	3-3/4"
MTB150	1-1/2"	2-9/16"	9-5/16"	3-3/4"
MTB200	2"	3-3/16"	11-13/16"	4-1/8"
FORM 5 Conduit Body X Type(threaded type)
CAT #	Trade Size	Dim A	Dim B	Dim C	Description	Pictures
MX050	1/2"	2-13/16"	5-7/16"	1-3/4"	Malleable Iron X Type Threaded Connection
MX075	3/4"	2-15/16"	6-1/16"	2"
MX100	1"	3-9/16"	7-1/8"	2-1/4"
MX125	1-1/4"	4-7/16"	9-1/8"	2-9/16"
MX150	1-1/2"	4-7/16"	9-1/8"	2-3/4"
MX200	2"	5-3/8"	11-3/4"	3-7/16"
