| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | EXR-2 |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Corrugated Carton |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Aluminum | Surface Finish: | Powder Coated |
|---|---|---|---|
| Type: | 2-Gang | Size: | 4-9/16" * 4-1/2" * 1" |
| Shape: | Square | Color: | Gray |
| High Light: | ELECMAN extended electrical box,2 Gang extended electrical box,Weatherproof exterior outlet box |
||

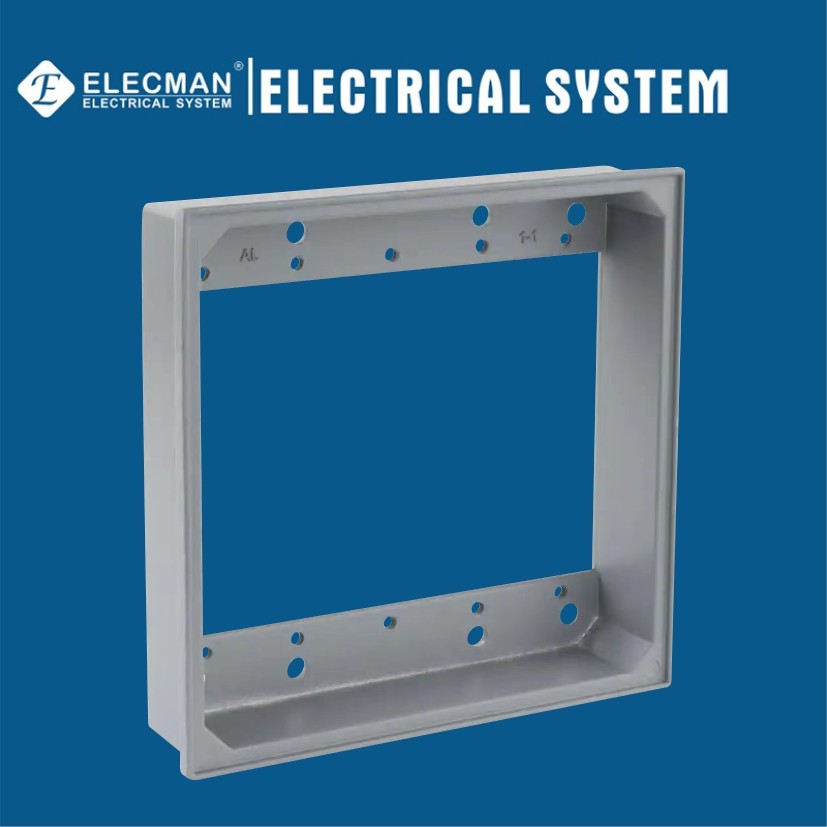

ELECMAN ® Aluminum 2 - Gang Weatherproof Electrical Box Extension Ring
Applications
ELECMAN® Aluminum 2 - Gang weatherproof electrical box extension rings are used to expand cubic capacity and enable flush finish.
Features
Certifications and Compliances
ELECMAN® Aluminum 2 - Gang weatherproof electrical box extension rings are produced to the following specifications:
Specification Data
ELECMAN provides full size aluminum 2 - Gang weatherproof electrical box extension rings.
| Cat.# | Width | Heigth | Depth | Volume |
| EXR-2 | 4-9/16" | 4-1/2" | 1" | 16.3 cu.In |
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. For internal packing, use small carton boxes or self sealing plastic bag, for external packing, use good quality corrugated carton. ELECMAN can follow any requirement of customers.
More Specifications
ELECMAN provides more specification aluminum 2 - Gang weatherproof box extension rings.
| 2-Gang Extension Rings With 6 Outlet Holes | 2-Gang Extension Rings With 8 Outlet Holes | ||||||
| Cat.# | Hole Size | Description | Pictures | Cat.# | Hole Size | Description | Pictures |
| 2EXG50-6 | 1/2" | 6 Outlet Holes Aluminum Die Cast Width:4-9/16" Height:4-1/2" Depth:1" Volume:15.0 cu.in |
|
2EXG50-8 | 1/2" | 8 Outlet Holes Aluminum Die Cast Width:4-9/16" Height:4-1/2" Depth:1" Volume:15.0 cu.in |
|
| 2EXG75-6 | 3/4" | 2EXG75-8 | 3/4" | ||||
| 2-Gang Weatherproof Extension Rings | |||||||
| Cat.# | Description | Pictures | |||||
| EXR-2 | Aluminum Die Cast Width:4-9/16" Height:4-1/2" Depth:1" Volume:16.3 cu.in |
|
|||||
