| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | 1G-5 |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Corrugated Carton |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Aluminum | Surface Finish: | Powder Coated |
|---|---|---|---|
| Type: | 1-Gang, 5 Outlet Holes | Size: | 2-3/4" * 4-1/2" * 2" |
| Color: | Gray | Shape: | Square |
| High Light: | Powder Coated Weatherproof Outlet Box,1Gang Weatherproof Outlet Boxes,Weatherproof outdoor outlet box |
||

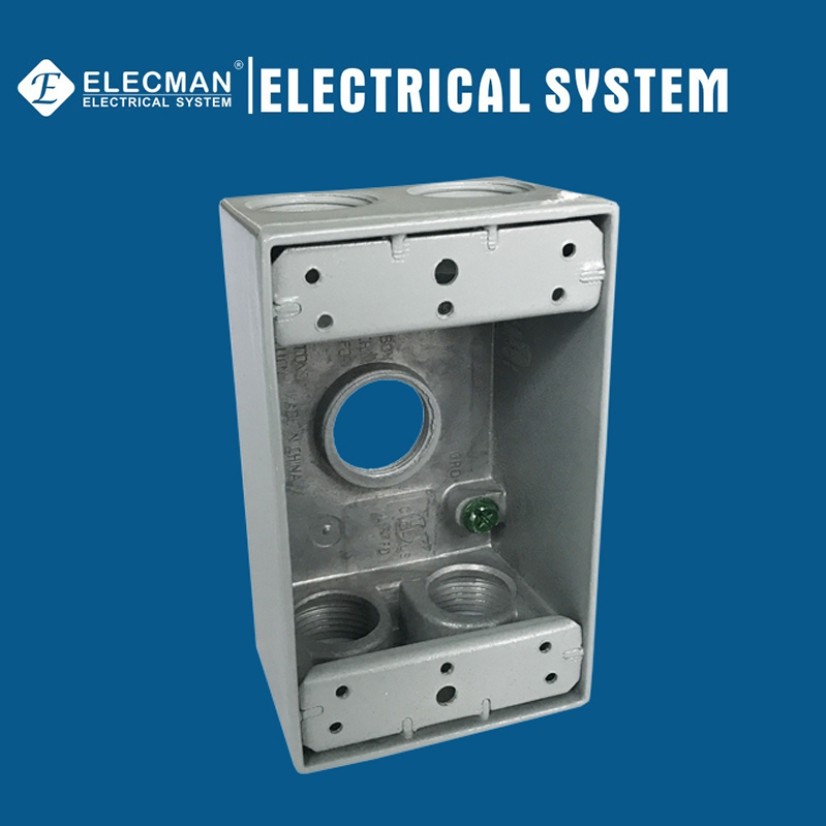

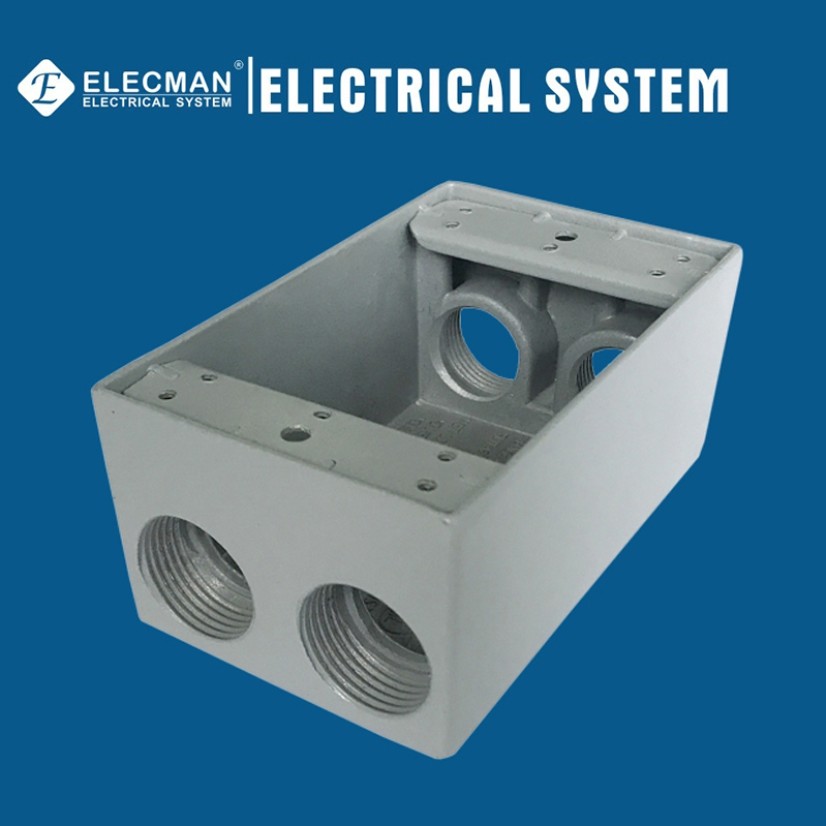

ELECMAN ® Aluminum 1 - Gang Weatherproof Electrical Box With 5 Outlet Holes
Applications
ELECMAN® Aluminum 1 - Gang weatherproof electrical boxes are designed for use with lighting fixtures, switches and other electrical devices. Fabricated from strong, durable and lightweight copper free aluminum and available in 3, 4 and 5 holes, side opening models with an 18 cubic inch capacity. Precision manufactured for optimum performance and longevity, premium powder coat finish ensures integrity. Threaded hubs range from 1/2" to 1".
Features
Certifications and Compliances
ELECMAN® Aluminum 1 - Gang weatherproof electrical boxes with 5 outlet holes are produced to the following specifications:
Specification Data
ELECMAN provides full size aluminum 1 - Gang weatherproof electrical boxes with 5 outlet holes.
| CAT # | Hole Size | Width | Height | Depth | Volume |
| 1G50-5 | 1/2" | 2-3/4" | 4-1/2" | 2" | 18.3 cu.In |
| 1G75-5 | 3/4" |
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. For internal packing, use small carton boxes or self sealing plastic bag, for external packing, use good quality corrugated carton. ELECMAN can follow any requirement of customers.
More Specifications
ELECMAN provides more specification aluminum 1- Gang weatherproof electrical boxes.
| 1-Gang Weatherproof Boxes With 3 Outlet Holes | 1-Gang Weatherproof Boxes With 4 Outlet Holes | ||||||
| Cat.# | Hole Size | Description | Picture | Cat.# | Hole Size | Description | Picture |
| 1G50-3 | 1/2" | 3 outlet holes Aluminum die cast Width:2-3/4" Height:4-1/2" Depth:2" Volume:18.3 cu.in. |
|
1G50-4 | 1/2" | 4 outlet holes Aluminum die cast Width:2-3/4" Height:4-1/2" Depth:2" Volume:18.3 cu.in. |
|
| 1G75-3 | 3/4" | 1G75-4 | 3/4" | ||||
| 1G100-3 | 1" | 1G100-4 | 1" | ||||
| 1-Gang Weatherproof Boxes With 5 Outlet Holes | 1-Gang Weatherproof Boxes With 5 X-config Outlet Holes | ||||||
| Cat.# | Hole Size | Description | Picture | Cat.# | Hole Size | Description | Picture |
| 1G50-5 | 1/2" | 5 outlet holes Aluminum die cast Width:2-3/4" Height:4-1/2" Depth:2" Volume:18.3 cu.in. |
|
1G50-5X | 1/2" | 5X-config outlet holes Aluminum die cast Width:2-3/4" Height:4-1/2" Depth:2" Volume:18.3 cu.in. |
|
| 1G75-5 | 3/4" | 1G75-5X | 3/4" | ||||
| 1-Gang Deep Weatherproof Boxes With 3 Outlet Holes | 1-Gang Deep Weatherproof Boxes With 4 Outlet Holes | ||||||
| Cat.# | Hole Size | Description | Picture | Cat.# | Hole Size | Description | Picture |
| 1DG50-3 | 1/2" | 3 outlet holes Aluminum die cast Width:2-3/4" Height:4-1/2" Depth:2-5/8" Volume:23.8 cu.in. |
|
1DG50-4 | 1/2" | 4 outlet holes Aluminum die cast Width:2-3/4" Height:4-1/2" Depth:2-5/8" Volume:23.8 cu.in. |
|
| 1DG75-3 | 3/4" | 1DG75-4 | 3/4" | ||||
