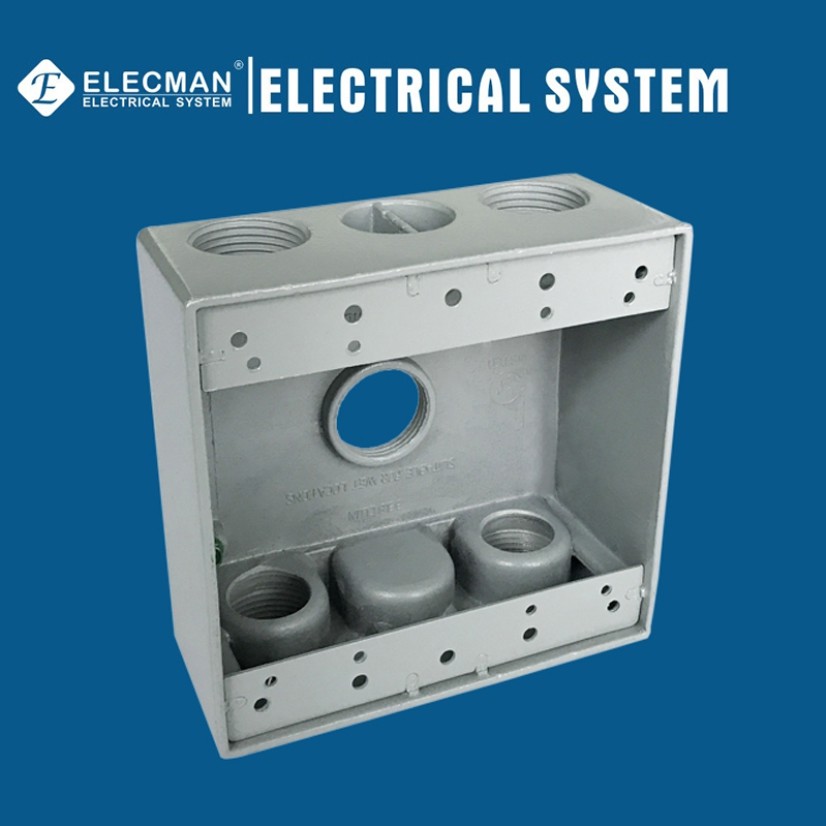

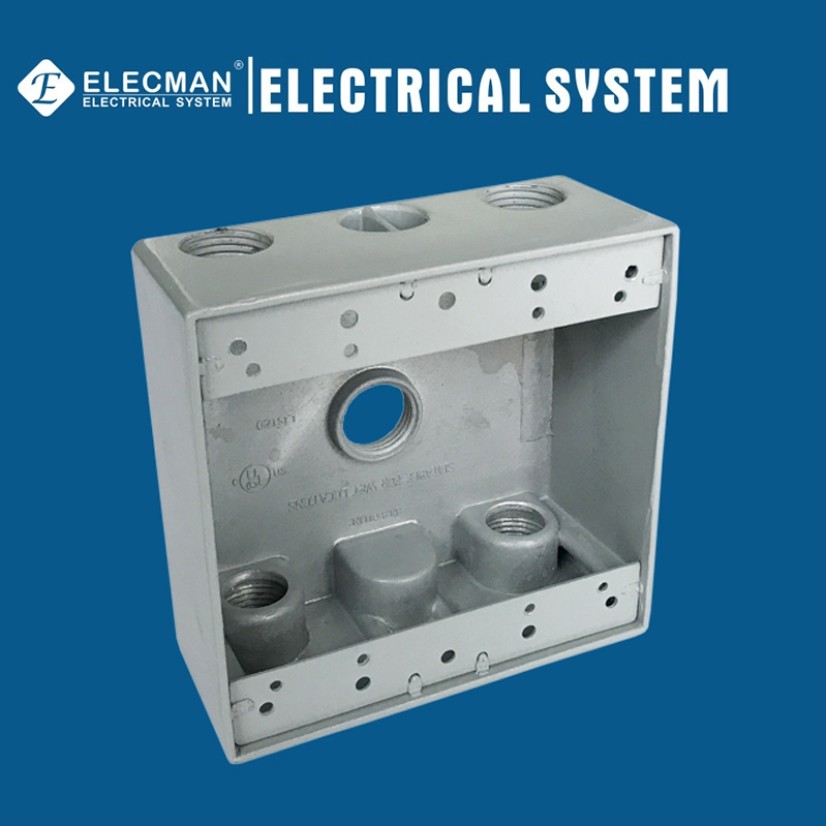

GFCI Electrical Aluminum 2 Gang Box Weatherproof Outlet Box With 5 Outlet Holes


ELECMAN ® Aluminum 2 - Gang Weatherproof Electrical Box With 5 Outlet Holes

Applications

ELECMAN® Aluminum 2 - Gang weatherproof electrical boxes with 5 outlet holes are use for in branch circuit wiring in wet, damp, or dry locations and may be used as weatherproof junction box, or as a housing for receptacles, switches, and GFCI’s. Internal threads and hubs comply with NEMA requirements and will accept all threaded fittings and threaded conduit.

Features

• Superior commercial quality die cast metal construction.
• Premium powder coat finish.
• 1/2", 3/4" knockouts.
• Closure plugs, mounting hardware and ground screw included.


Certifications and Compliances


ELECMAN® Aluminum 2 - Gang weatherproof electrical boxes with 5 outlet holes are produced to the following specifications:

• UL listed
• File No.: E513113


Specification Data

ELECMAN provides full size aluminum 2 - Gang weatherproof electrical boxes with 5 outlet holes.

Packing Information

Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. For internal packing, use small carton boxes or self sealing plastic bag, for external packing, use good quality corrugated carton. ELECMAN can follow any requirement of customers.



More Specifications

ELECMAN provides more specification aluminum 2- Gang weatherproof electrical boxes.

2-Gang Weatherproof Boxes With 3 Outlet Holes				2-Gang Weatherproof Boxes With 4 Outlet Holes
Cat.#	Hole Size	Description	Pictures	Cat.#	Hole Size	Description	Pictures
2G50-3	1/2"	3 outlet holes Aluminum die cast Width:4-9/16" Height:4-1/2" Depth:2" Volume:30.5 cu.in.		2G50-4	1/2"	4 outlet holes Aluminum die cast Width:4-9/16" Height:4-1/2" Depth:2" Volume:30.5 cu.in.
2G75-3	3/4"			2G75-4	3/4"
2-Gang Weatherproof Boxes With 5 Outlet Holes				2-Gang Weatherproof Boxes With 7 Outlet Holes
Cat.#	Hole Size	Description	Pictures	Cat.#	Hole Size	Description	Pictures
2G50-5	1/2"	5 outlet holes Aluminum die cast Width:4-9/16" Height:4-1/2" Depth:2" Volume:30.5 cu.in.		2G50-7	1/2"	5X-config outlet holes Aluminum die cast Width:4-9/16" Height:4-1/2" Depth:2" Volume:30.5 cu.in.
2G75-5	3/4"			2G75-7	3/4"
2-Gang Weatherproof Boxes With 9 Outlet Holes				2-Gang Weatherproof Boxes With 5 X-config Outlet Holes
Cat.#	Hole Size	Description	Pictures	Cat.#	Hole Size	Description	Pictures
2G50-9	1/2"	93 outlet holes Aluminum die cast Width:4-9/16" Height:4-1/2" Depth:2-5/8" Volume:30.5 cu.in.		2G50-5X	1/2"	5 X-config outlet holes Aluminum die cast Width:4-9/16" Height:4-1/2" Depth:2-5/8" Volume:30.5 cu.in.
2G75-9	3/4"			2G75-5X	3/4"
2-Gang Weatherproof Boxes With 6 X-config Outlet Holes				2-Gang Weatherproof Boxes With 7 X-config Outlet Holes
Cat.#	Hole Size	Description	Pictures	Cat.#	Hole Size	Description	Pictures
2G50-6X	1/2"	6 X-config outlet holes Aluminum die cast Width:4-9/16" Height:4-1/2" Depth:2" Volume:30.5 cu.in.		2G50-7X	1/2"	7 X-config outlet holes Aluminum die cast Width:4-9/16" Height:4-1/2" Depth:2" Volume:30.5 cu.in.
2G75-6X	3/4"			2G75-7X	3/4"
2-Gang Deep Weatherproof Boxes With 5 Outlet Holes				2-Gang Deep Weatherproof Boxes With 7 X-config Outlet Holes
Cat.#	Hole Size	Description	Pictures	Cat.#	Hole Size	Description	Pictures
2DG50-5	1/2"	5 outlet holes Aluminum die cast Width:4-9/16" Height:4-1/2" Depth:2-5/8" Volume:39.1 cu.in.		2DG50-7X	1/2"	7 X-config outlet holes Aluminum die cast Width:4-9/16" Height:4-1/2" Depth:2-5/8" Volume:39.1 cu.in.
2DG75-5	3/4"			2DG75-7X	3/4"
