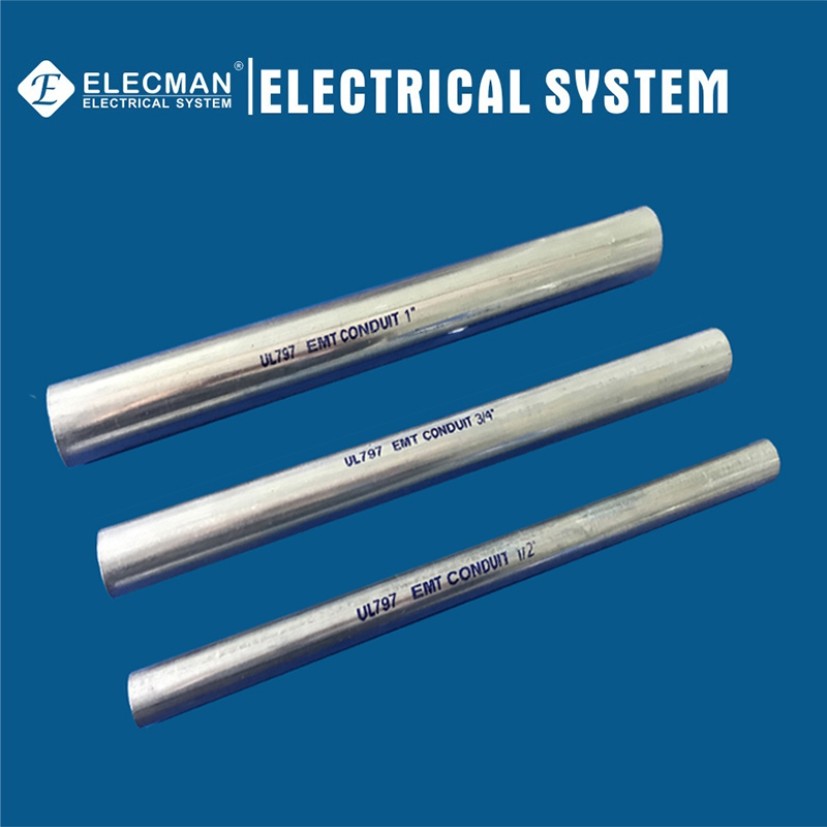

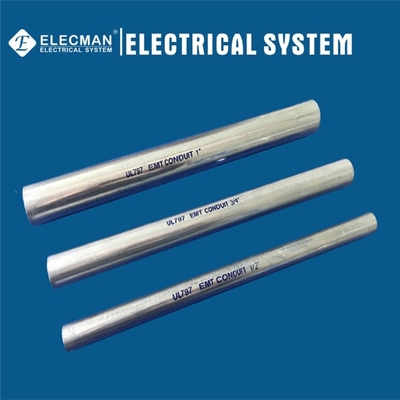

ELECMAN ® UL797 Carbon Steel Electrical Metallic Tubing (EMT Conduit)

ELECMAN® UL797 carbon steel electrical metallic tubing (EMT conduit), also commonly called thin-wall, is a listed steel raceway of circular cross section, which is unthreaded, and nominally 10' long. EMT is available in trade sizes 1/2 through 4. The outside is galvanized for corrosion protection and the inside has an approved corrosion-resistant organic coating.

Application

ELECMAN® UL797 carbon steel electrical metallic tubing (EMT conduit) is a tube used to protect and route electrical wiring in a building or structure.

Features

• ​Protects insulated electrical conductors and cables from magnetic fields, impact damage and crushing.
• Excellent mechanical protection for conductors.
• Ductility for faster and easier bending.
• High grade mild strip steel for durability and longer life.
• The outside is galvanized for corrosion protection and the inside has an approved corrosion-resistant organic coating.
• EMT itself is not threaded, but can be used with threaded fittings and clamps to it.
• EMT conduit connects with set screw type connectors for indoor and outdoor use.​​

Certifications and Compliances

ELECMAN® UL797 carbon steel electrical metallic tubing (EMT conduit) in accordance with the National Electrical Code (NEC). Electrical metallic tubing shall be carbon steel, electrically welded, galvanized and produced to the following specifications:

• UL standard for Electrical Metallic tubing - steel, UL797, file # E491791
• National Electric Code, Article 358
• American National Standards Institute C80.3
• cUL Listing for CSA C22.2 No. 83.1-07

​
Specification Data

​ELECMAN ® UL797 carbon steel electrical metallic tubing (EMT) is listed to UL Safety Standard 797 and manufactured in accordance with ANSI C80.3. details shall accord with Table 1.

Raw Material

ELECMAN ® Electrical metallic tubing (EMT) is produced from Carbon structural steel (Q195).

Chemical Composition

Steel type and chemical composition (melting analysis) shall accord with Table 2.

Manufacturing Process

ELECMAN ® Electrical metallic tubing (EMT) is manufactured according to following production process:

Quality Control

Every ELECMAN people know deeply the core value of ELECMAN is to provide high quality products to customers, that is why ELECMAN QC departments have very strict quality controlling process, from raw material to products, ELECMAN QC department supervise every process, make sure every process follow the standard, for EMT conduit, QC department need to inspect the dimensions, welding line, zinc coatings and bending feature.

Packing Information

EMT conduits are packed in bundles with woven bag, we also can put customers' sticker on pipes, on woven bag, we will put a big sticker with detailed information for customers to distinguish different sizes. for regular packing information, please check the Table 3.
