| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | EEN(90°) |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Corrugated Carton |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Carbon Steel | Surface Finish: | Hot Dipped Galvanized Or Pre-Galvanized |
|---|---|---|---|
| Type: | Unthreaded | Size: | 1/2" To 4" |
| Section Shape: | Round | Angle: | 90° |
| High Light: | 90 Degree EMT Conduits,EMT Conduits Elbow,EMT 90 degree conduit elbow |
||

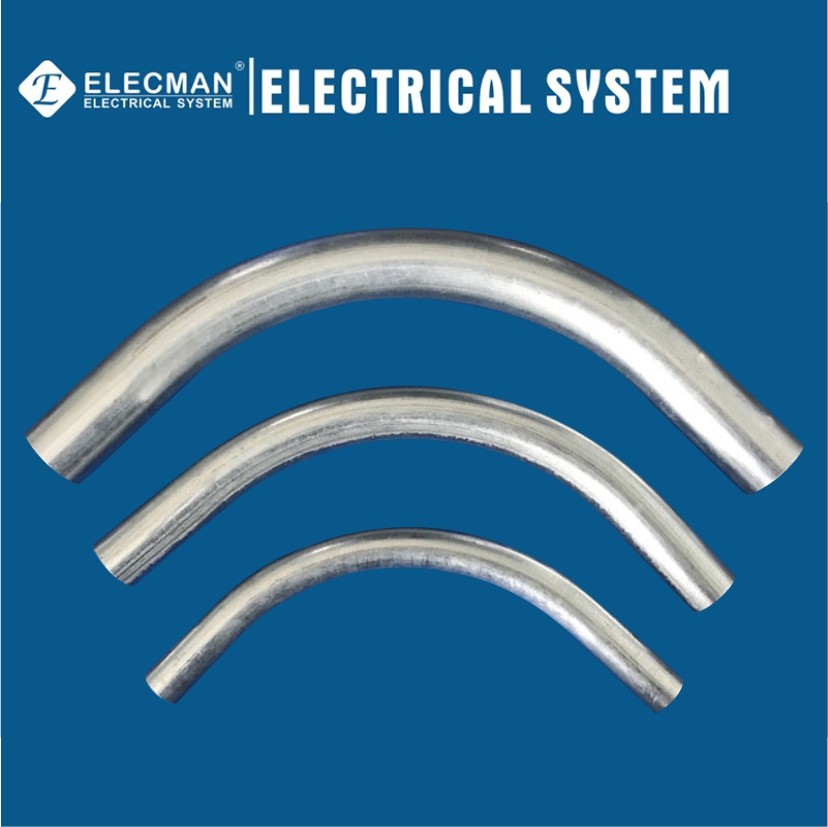

ELECMAN ® UL797 Galvanized Steel EMT Eblow 90 Degree
Applications
ELECMAN ® UL797 galvanized steel EMT eblows 90 degree are used to change the direction in a run of EMT conduit but still allows for easy wire pulling thanks to a large radius. Usable indoors and outdoors.
Features
Certifications and Compliances
ELECMAN® UL797 galvanized steel EMT eblows 90 degree shall be carbon steel, electrically welded, galvanized and produced to the following specifications:
Specification Data
ELECMAN provides full size UL797 galvanized steel EMT eblows 90 degree from 1/2" to 4".
| 45° Type | 90° Type | ||
| CAT # | Trade Size | CAT # | Trade Size |
| EEF050 | 1/2" | EEN050 | 1/2" |
| EEF075 | 3/4" | EEN075 | 3/4" |
| EEF100 | 1" | EEN100 | 1" |
| EEF125 | 1-1/4" | EEN125 | 1-1/4" |
| EEF150 | 1-1/2" | EEN150 | 1-1/2" |
| EEF200 | 2" | EEN200 | 2" |
| EEF250 | 2-1/2" | EEN250 | 2-1/2" |
| EEF300 | 3" | EEN300 | 3" |
| EEF350 | 3-1/2" | EEN350 | 3-1/2" |
| EEF400 | 4" | EEN400 | 4" |
Quality Control
Every ELECMAN people know deeply the core value of ELECMAN is to provide high quality products to customers, that is why ELECMAN QC departments have very strict quality controlling process, from raw material to products, ELECMAN QC department supervise every process, make sure every process follow the standard, for EMT elbow, QC department need to inspect the dimensions, welding line, zinc coatings and bending feature.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT elbows, from 1/2" to 4", ELECMAN provide EMT elbows are packed in small carton box or self sealing plastic bag . ELECMAN can follow any packing requirements of customers.
