| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | RSO |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Carbon Steel | Type: | One Hole |
|---|---|---|---|
| Surface Finish: | Zinc Plated | Size: | 1/2 In. To 4 In. |
| Color: | Sliver | Connection: | Set Screw |
| High Light: | One Hole Galvanized Steel Rigid Strap,2 Inch IMC Rigid Strap,Zinc Plated IMC Rigid Conduit Fittings |
||

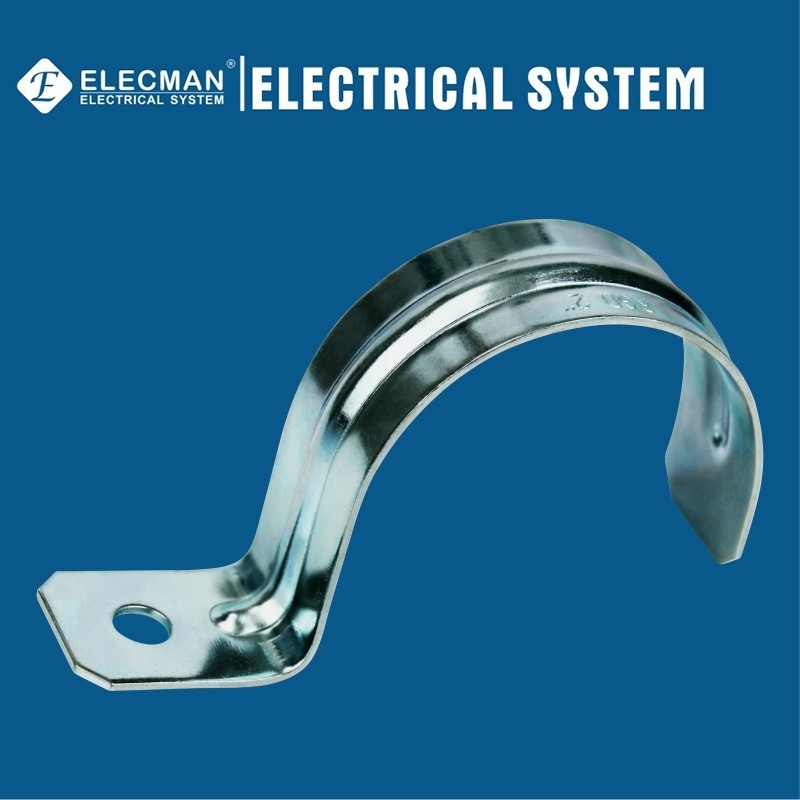

ELECMAN ® Conduit Fitting 2 In. IMC Rigid Strap One Hole Galvanized Steel
Applications
ELECMAN® Steel IMC Rigid one-hole steel strap supports rigid/IMC conduit to a mounting surface with reinforced rib & holes for extra strength. Easy to install and available in a variety of sizes to suit multiple applications.
Features
Certifications and Compliances
ELECMAN® Galvanized steel IMC/Rigid conduit strap one hole type shall be produced to the following specification:
Specification Data
ELECMAN provides full size galvanized steel IMC/Rigid conduit straps two hole type from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | DIM C(inch) | INNER PACK | MASTER PACK | WEIGHT/C |
| RSO050 | 1/2" | 1.657 | 0.571 | 0.665 | 200 | 2000 | 19.30 |
| RSO075 | 3/4" | 1.937 | 0.646 | 0.933 | 150 | 1500 | 15.90 |
| RSO100 | 1" | 2.276 | 0.772 | 1.110 | 100 | 1000 | 16.10 |
| RSO125 | 1-1/4" | 2.858 | 0.878 | 1.480 | 75 | 300 | 10.50 |
| RSO150 | 1-1/2" | 3.126 | 1.000 | 1.673 | 50 | 200 | 7.60 |
| RSO200 | 2" | 3.921 | 1.138 | 2.020 | 50 | 200 | 9.40 |
| RSO250 | 2-1/2" | 5.012 | 1.173 | 2.602 | 20 | 100 | 10.20 |
| RSO300 | 3" | 5.374 | 1.215 | 3.291 | 25 | 150 | 17.30 |
| RSO400 | 4" | 6.850 | 1.157 | 4.177 | 10 | 60 | 8.50 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the strap body is made of high quality steel, every part of the strap are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for IMC/Rigid conduit fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 4", ELECMAN provides plastic packing inside the outer box.
