| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | RSO |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Carbon Steel | Type: | One Hole Type |
|---|---|---|---|
| Surface Finish: | Zinc Plated | Size: | 1/2" To 4" |
| Section Shape: | Saddle | Connection: | Set Screw |
| High Light: | One Hole Rigid Conduit Straps,Snap In Type IMC Rigid Strap,Galvanized Steel Rigid Conduit Straps |
||

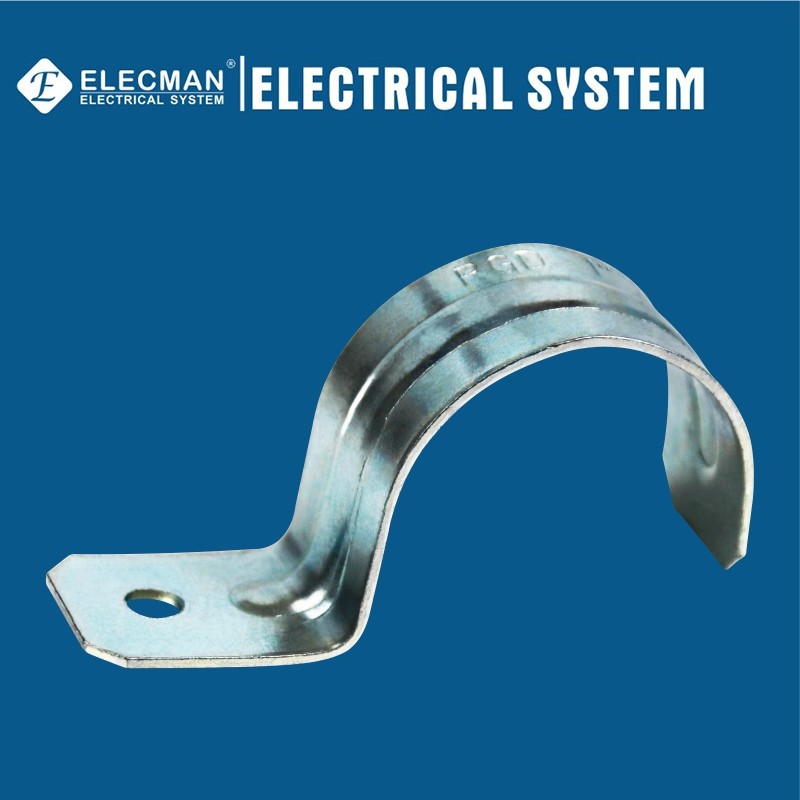

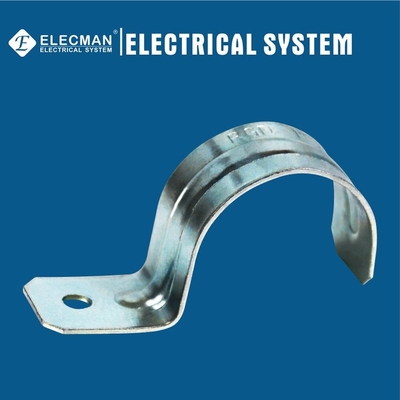

ELECMAN ® Galvanized Steel 1 In. One Hole IMC Rigid Strap Snap-in Type
Applications
ELECMAN® Steel one hole IMC rigid strap has a snap-in feature with a ribbed design which gives extra strength to this 1-hole rigid pipe strap. The sturdiness of this pipe strap makes it ideal for industrial usage. The reinforced hole on this strap gives more strengthening support to the pipings.
Features
Certifications and Compliances
ELECMAN® Galvanized steel IMC/Rigid conduit strap one hole type shall be produced to the following specification:
Specification Data
ELECMAN provides full size galvanized steel IMC/Rigid conduit straps two hole type from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | DIM C(inch) | INNER PACK | MASTER PACK | WEIGHT/C |
| RSO050 | 1/2" | 1.657 | 0.571 | 0.665 | 200 | 2000 | 19.30 |
| RSO075 | 3/4" | 1.937 | 0.646 | 0.933 | 150 | 1500 | 15.90 |
| RSO100 | 1" | 2.276 | 0.772 | 1.110 | 100 | 1000 | 16.10 |
| RSO125 | 1-1/4" | 2.858 | 0.878 | 1.480 | 75 | 300 | 10.50 |
| RSO150 | 1-1/2" | 3.126 | 1.000 | 1.673 | 50 | 200 | 7.60 |
| RSO200 | 2" | 3.921 | 1.138 | 2.020 | 50 | 200 | 9.40 |
| RSO250 | 2-1/2" | 5.012 | 1.173 | 2.602 | 20 | 100 | 10.20 |
| RSO300 | 3" | 5.374 | 1.215 | 3.291 | 25 | 150 | 17.30 |
| RSO400 | 4" | 6.850 | 1.157 | 4.177 | 10 | 60 | 8.50 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the strap body is made of high quality steel, every part of the strap are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for IMC/Rigid conduit fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 4", ELECMAN provides plastic packing inside the outer box.
