| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | RSO |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Carbon Steel | Type: | One Hole Type |
|---|---|---|---|
| Surface Finish: | Zinc Plated | Size: | 1/2" To 4" |
| Section Shape: | Saddle | Connection: | Set Screw |
| High Light: | IMC Rigid Conduit Straps,3/4" Galvanized Steel Rigid Conduit Fitting,One Hole Rigid Strap |
||

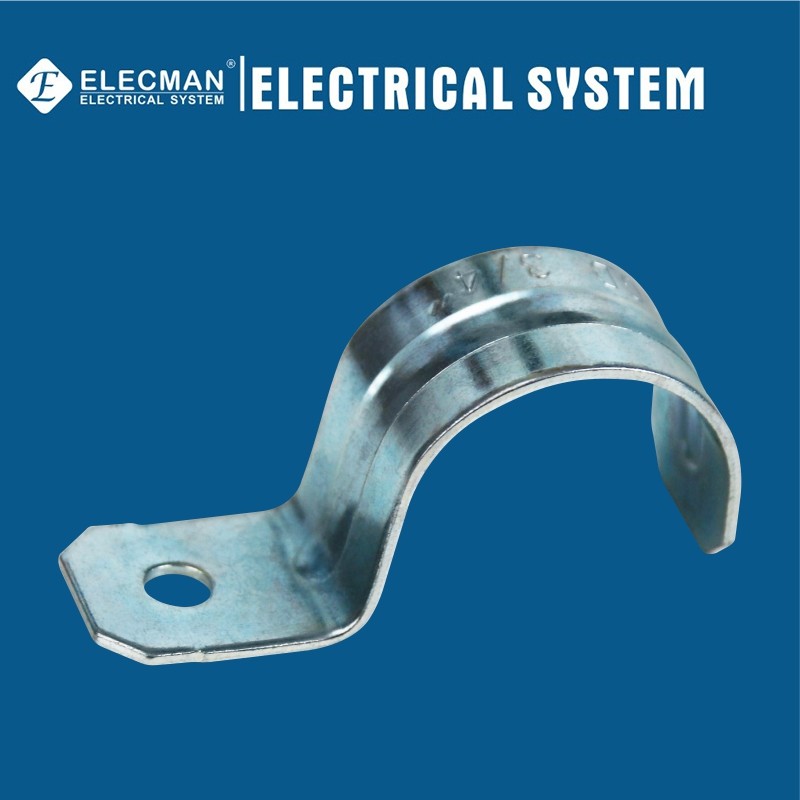

ELECMAN ® IMC Rigid Strap One Hole Galvanized Steel 3/4" Rigid Conduit Fitting
Applications
ELECMAN® Steel one hole IMC rigid straps are made to last for a long time and is highly durable, engineered with premium quality top grade material. This steel rigid strap is used when extra load bearing is needed to attach the conduit to wood, masonry or alike surfaces.
Features
Certifications and Compliances
ELECMAN® Galvanized steel IMC/Rigid conduit strap one hole type shall be produced to the following specification:
Specification Data
ELECMAN provides full size galvanized steel IMC/Rigid conduit straps two hole type from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | DIM C(inch) | INNER PACK | MASTER PACK | WEIGHT/C |
| RSO050 | 1/2" | 1.657 | 0.571 | 0.665 | 200 | 2000 | 19.30 |
| RSO075 | 3/4" | 1.937 | 0.646 | 0.933 | 150 | 1500 | 15.90 |
| RSO100 | 1" | 2.276 | 0.772 | 1.110 | 100 | 1000 | 16.10 |
| RSO125 | 1-1/4" | 2.858 | 0.878 | 1.480 | 75 | 300 | 10.50 |
| RSO150 | 1-1/2" | 3.126 | 1.000 | 1.673 | 50 | 200 | 7.60 |
| RSO200 | 2" | 3.921 | 1.138 | 2.020 | 50 | 200 | 9.40 |
| RSO250 | 2-1/2" | 5.012 | 1.173 | 2.602 | 20 | 100 | 10.20 |
| RSO300 | 3" | 5.374 | 1.215 | 3.291 | 25 | 150 | 17.30 |
| RSO400 | 4" | 6.850 | 1.157 | 4.177 | 10 | 60 | 8.50 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the strap body is made of high quality steel, every part of the strap are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for IMC/Rigid conduit fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 4", ELECMAN provides plastic packing inside the outer box.
