| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | ESO |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | One Hole Type | Size: | 1/2 Inch - 4 Inch |
| Connection: | Set Screw | Color: | Sliver |
| High Light: | 2 Inch EMT Straps,One Hole EMT Conduit Straps,Galvanized Steel EMT Conduit Straps |
||

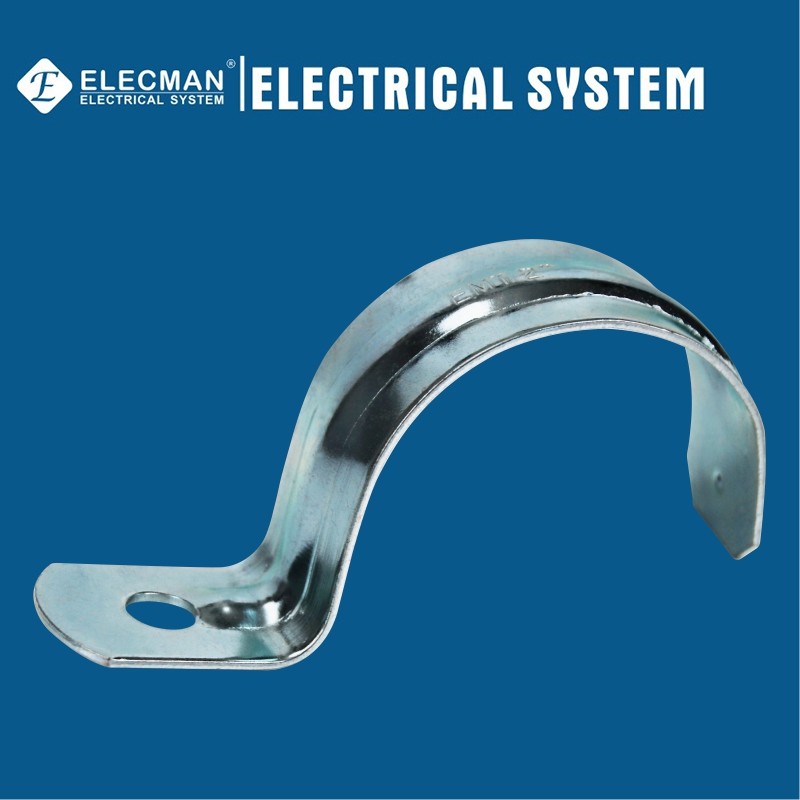

ELECMAN ® EMT Conduit Fitting 2 In. EMT Strap One Hole Galvanized Steel
Applications
ELECMAN® 2 in. one hole zinc plated steel EMT strap used to secure 2 inch EMT conduit. The strap includes a reinforcement rib and the hole is reinforced for extra strength. The strap snaps on to conduit for fast and easy installation. EMT straps are durable, easy to install and available in different sizes and materials.
Features
Certifications and Compliances
ELECMAN® Galvanized steel EMT conduit strap one hole type shall be produced to the following specification:
Specification Data
ELECMAN provides full size Galvanized steel EMT conduit strap one hole type from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | DIM C(inch) | INNER PACK | MASTER PACK | WEIGHT/C |
| ESO050 | 1/2" | 1.657 | 0.571 | 0.665 | 500 | 2000 | 13.70 |
| ESO075 | 3/4" | 1.937 | 0.646 | 0.933 | 300 | 1200 | 10.30 |
| ESO100 | 1" | 2.276 | 0.772 | 1.110 | 175 | 700 | 11.50 |
| ESO125 | 1-1/4" | 2.858 | 0.878 | 1.480 | 400 | 9.50 | |
| ESO150 | 1-1/2" | 3.126 | 1.000 | 1.673 | 300 | 8.50 | |
| ESO200 | 2" | 3.921 | 1.138 | 2.020 | 200 | 9.10 | |
| ESO250 | 2-1/2" | 5.012 | 1.173 | 2.602 | 150 | 14.50 | |
| ESO300 | 3" | 5.374 | 1.215 | 3.291 | 70 | 8.30 | |
| ESO400 | 4" | 6.850 | 1.157 | 4.177 | 50 | 7.50 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the coupling body is made of high quality steel, every part of the coupling are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
