| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | ESO |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | One Hole | Size: | 1/2" - 4" |
| Connection: | Snap In | Color: | Sliver |
| High Light: | One Hole Type EMT Conduit Strap,1-1/2" EMT Conduit Strap,Galvanized Steel EMT Strap |
||

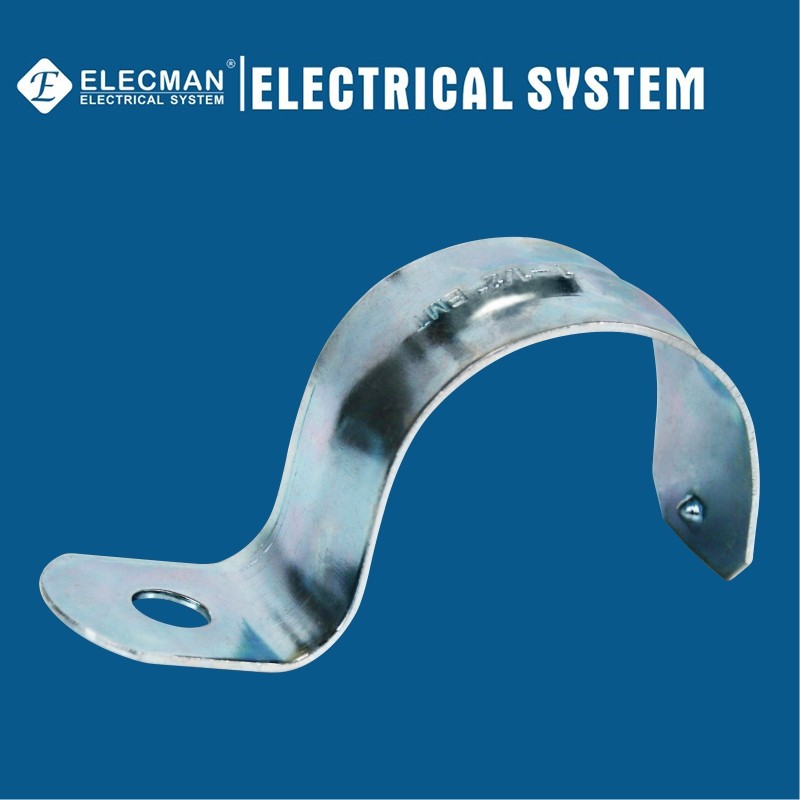

ELECMAN ® Galvanized Steel EMT Strap One Hole Type 1-1/2" EMT Conduit Strap
Applications
ELECMAN® Steel EMT strap one hole type is used to mount EMT conduit. It has stamped steel construction for enhanced durability, and a reinforced hole and reinforced rib for extra strength. A single hole design makes it easy for the installer to secure pipes to any surface.
Features
Certifications and Compliances
ELECMAN® Galvanized steel EMT conduit strap one hole type shall be produced to the following specification:
Specification Data
ELECMAN provides full size Galvanized steel EMT conduit strap one hole type from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | DIM C(inch) | INNER PACK | MASTER PACK | WEIGHT/C |
| ESO050 | 1/2" | 1.657 | 0.571 | 0.665 | 500 | 2000 | 13.70 |
| ESO075 | 3/4" | 1.937 | 0.646 | 0.933 | 300 | 1200 | 10.30 |
| ESO100 | 1" | 2.276 | 0.772 | 1.110 | 175 | 700 | 11.50 |
| ESO125 | 1-1/4" | 2.858 | 0.878 | 1.480 | 400 | 9.50 | |
| ESO150 | 1-1/2" | 3.126 | 1.000 | 1.673 | 300 | 8.50 | |
| ESO200 | 2" | 3.921 | 1.138 | 2.020 | 200 | 9.10 | |
| ESO250 | 2-1/2" | 5.012 | 1.173 | 2.602 | 150 | 14.50 | |
| ESO300 | 3" | 5.374 | 1.215 | 3.291 | 70 | 8.30 | |
| ESO400 | 4" | 6.850 | 1.157 | 4.177 | 50 | 7.50 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the coupling body is made of high quality steel, every part of the coupling are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
