| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | ESO |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | One Hole | Size: | 1/2" - 4" |
| Connection: | Snap In | Color: | Sliver |
| High Light: | 1 Hole EMT Strap,Electrical Metallic Tube EMT Strap,Galvanized Steel Electrical Conduit Straps |
||

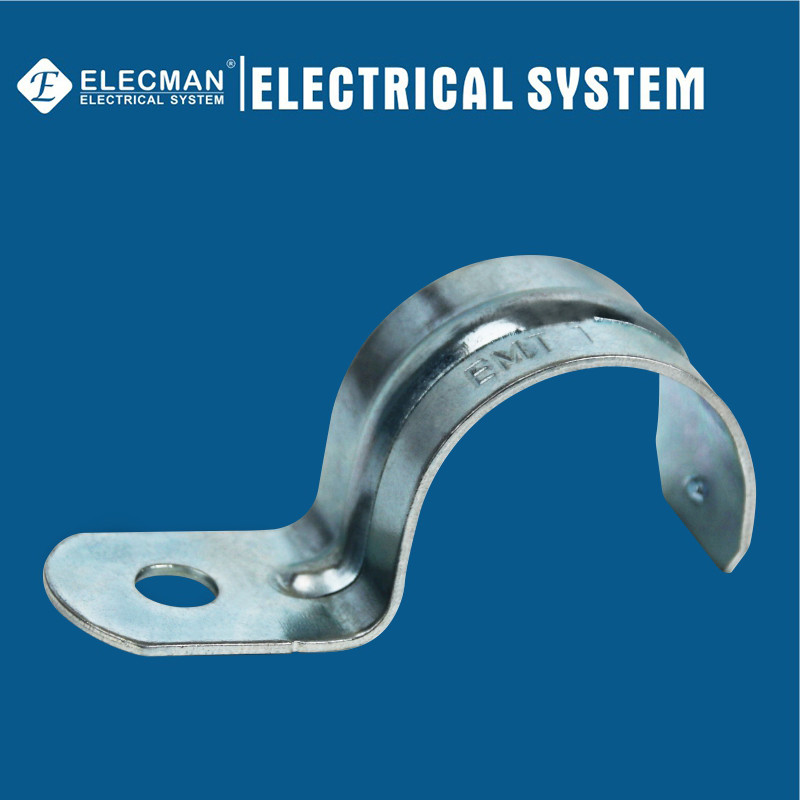

ELECMAN ® Galvanized Steel 1 In. 1- Hole Electrical Metallic Tube (EMT) Strap
Applications
ELECMAN® One hole EMT straps take less time to complete each task as the design of these EMT pipe straps can easily secure all EMT conduits. The zinc-plated steel is corrosion resistant and each pipe strap is cULus listed.
Features
Certifications and Compliances
ELECMAN® Galvanized steel EMT conduit strap one hole type shall be produced to the following specification:
Specification Data
ELECMAN provides full size Galvanized steel EMT conduit strap one hole type from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | DIM C(inch) | INNER PACK | MASTER PACK | WEIGHT/C |
| ESO050 | 1/2" | 1.657 | 0.571 | 0.665 | 500 | 2000 | 13.70 |
| ESO075 | 3/4" | 1.937 | 0.646 | 0.933 | 300 | 1200 | 10.30 |
| ESO100 | 1" | 2.276 | 0.772 | 1.110 | 175 | 700 | 11.50 |
| ESO125 | 1-1/4" | 2.858 | 0.878 | 1.480 | 400 | 9.50 | |
| ESO150 | 1-1/2" | 3.126 | 1.000 | 1.673 | 300 | 8.50 | |
| ESO200 | 2" | 3.921 | 1.138 | 2.020 | 200 | 9.10 | |
| ESO250 | 2-1/2" | 5.012 | 1.173 | 2.602 | 150 | 14.50 | |
| ESO300 | 3" | 5.374 | 1.215 | 3.291 | 70 | 8.30 | |
| ESO400 | 4" | 6.850 | 1.157 | 4.177 | 50 | 7.50 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the coupling body is made of high quality steel, every part of the coupling are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
