| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | ESO |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | One Hole | Size: | 1/2" - 4" |
| Connection: | Snap In | Color: | Sliver |
| High Light: | 3/4" EMT Conduit Fitting,One Hole Galvanized Steel EMT Strap,3/4" EMT Conduit Strap |
||

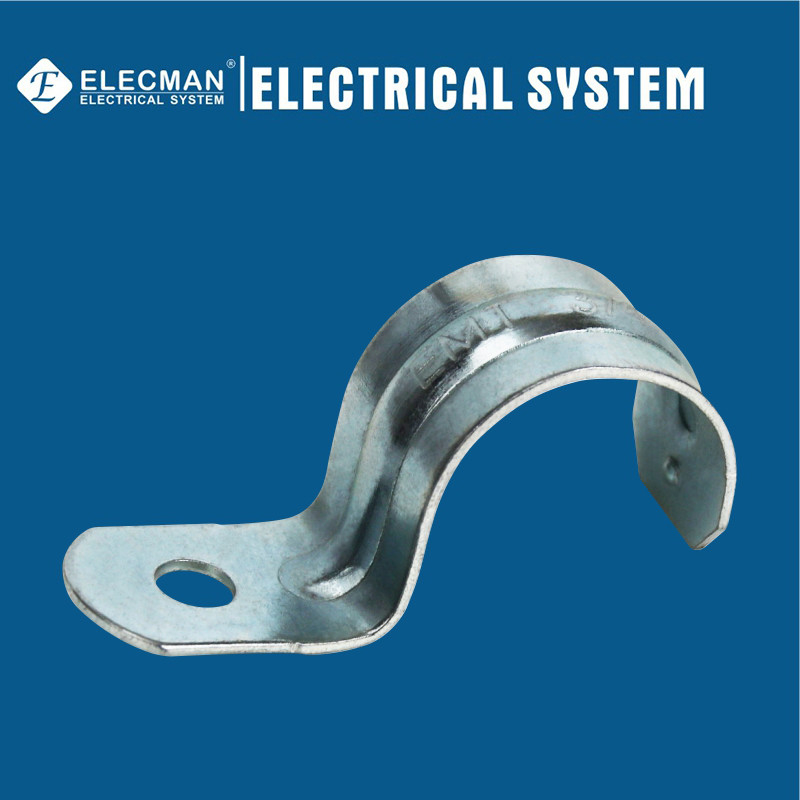

ELECMAN ® EMT Strap One Hole Galvanized Steel 3/4" EMT Conduit Fitting
Applications
ELECMAN® One Hole EMT Straps are used to secure EMT conduit to wood, masonry, and other working surfaces. They are manufactured from carbon steel and feature an inverted rib on the backside for increased rigidity. They are zinc plated for increased corrosion resistance.
Features
Certifications and Compliances
ELECMAN® Galvanized steel EMT conduit strap one hole type shall be produced to the following specification:
Specification Data
ELECMAN provides full size Galvanized steel EMT conduit strap one hole type from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | DIM C(inch) | INNER PACK | MASTER PACK | WEIGHT/C |
| ESO050 | 1/2" | 1.657 | 0.571 | 0.665 | 500 | 2000 | 13.70 |
| ESO075 | 3/4" | 1.937 | 0.646 | 0.933 | 300 | 1200 | 10.30 |
| ESO100 | 1" | 2.276 | 0.772 | 1.110 | 175 | 700 | 11.50 |
| ESO125 | 1-1/4" | 2.858 | 0.878 | 1.480 | 400 | 9.50 | |
| ESO150 | 1-1/2" | 3.126 | 1.000 | 1.673 | 300 | 8.50 | |
| ESO200 | 2" | 3.921 | 1.138 | 2.020 | 200 | 9.10 | |
| ESO250 | 2-1/2" | 5.012 | 1.173 | 2.602 | 150 | 14.50 | |
| ESO300 | 3" | 5.374 | 1.215 | 3.291 | 70 | 8.30 | |
| ESO400 | 4" | 6.850 | 1.157 | 4.177 | 50 | 7.50 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the coupling body is made of high quality steel, every part of the coupling are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
