| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | TRC |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Malleable-Iron | Surface Finish: | Electro-Galvanized |
|---|---|---|---|
| Type: | Three Pieces Type | Size: | 1/2 Inch - 6 Inch |
| Connection: | Female Thread | Usage: | Electrical Wires Installation |
| High Light: | Malleable Iron 3 piece rigid coupling,IMC Rigid Conduit 3 piece coupling,Malleable Iron rigid 3 piece coupling |
||

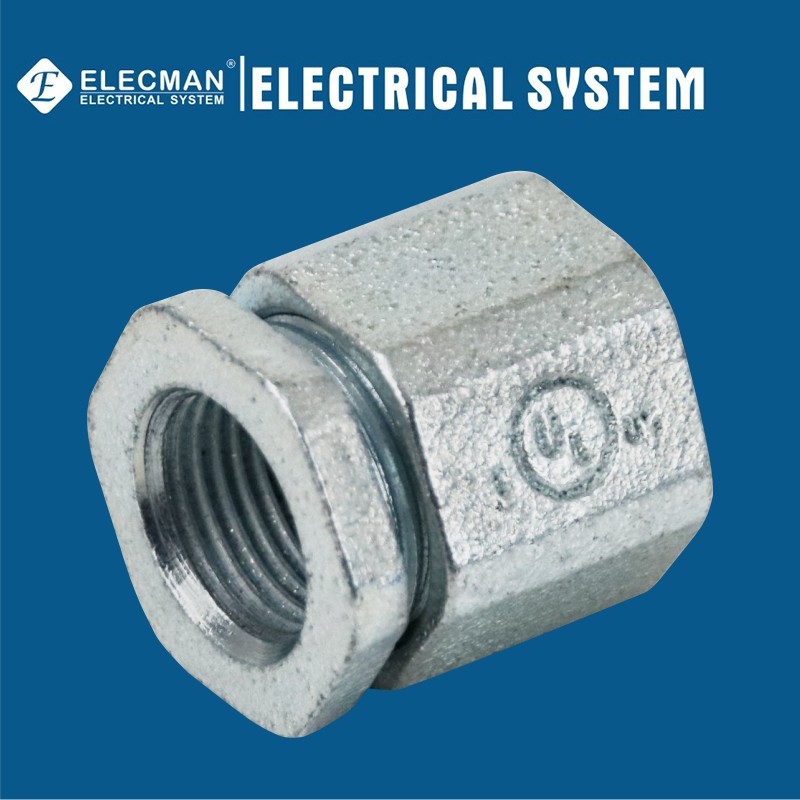

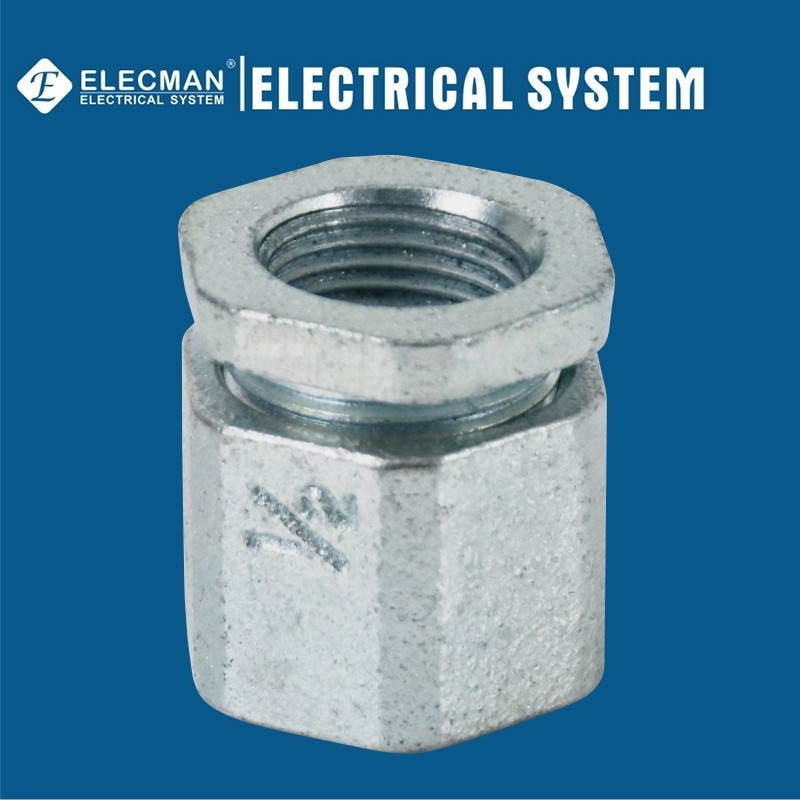

ELECMAN ® 1/2" EG Malleable Iron IMC Rigid Conduit Three Piece Coupling
Applications
ELECMAN® EG malleable iron IMC Rigid couplings three piece type are available in a wide variety of sizes, fabricated from high grade malleable iron to suit multiple applications, and are used to join two lengths of conduit when neither can be turned. The hex ring and ferrule are placed on the other piece. Once all the pieces are in place, the hex ring slides up and tightens to join the two pieces together.
ELECMAN® The electro galvanizing process to conduit bodies, covers and accompanying components such as bushings, couplings and supports. The galvanizing process protects from corrosion induced by the harsh environmental conditions, instilling end user confidence in the quality, reliability and longevity of the fitting.
Features
Certifications and Compliances
ELECMAN® Malleable iron IMC/Rigid conduit three pieces coupling threaded connection shall be produced to the following specification:
Specification Data
ELECMAN provides full size malleable iron IMC/Rigid conduit three pieces coupling threaded connection from 1/2" to 6".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | DIM C(inch) | INNER PACK | MASTER PACK |
| TPC050 | 1/2" | 1.313 | 1.375 | 1.375 | 10 | 100 |
| TPC075 | 3/4" | 1.565 | 1.563 | 1.563 | 5 | 50 |
| TPC100 | 1" | 1.625 | 1.875 | 1.875 | 5 | 50 |
| TPC125 | 1-1/4" | 2.125 | 2.375 | 2.375 | 5 | 25 |
| TPC150 | 1-1/2" | 2.375 | 2.813 | 2.813 | 5 | 25 |
| TPC200 | 2" | 2.625 | 3.313 | 3.313 | 2 | 10 |
| TPC250 | 2-1/2" | 3.125 | 4.063 | 4.063 | 2 | 10 |
| TPC300 | 3" | 3.188 | 4.688 | 4.688 | - | 5 |
| TPC350 | 3-1/2" | 3.563 | 5.063 | 5.063 | - | 1 |
| TPC400 | 4" | 4.000 | 5.750 | 5.750 | - | 1 |
| TPC500 | 5" | 4.000 | 7.250 | 8.250 | - | 1 |
| TPC600 | 6" | 3.875 | 8.313 | 8.313 | - | 1 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the coupling body is made of high quality malleable iron, every parts of the coupling are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for IMC/Rigid fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 6", ELECMAN provides plastic packing inside the outer box.
