| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | TRC |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Malleable Iron | Surface Finish: | Hot Dipped Galvanized |
|---|---|---|---|
| Type: | Threaded, Three Pieces Type | Size: | 1/2" To 6" |
| Application: | Connect IMC Rigid Conduit | Connection: | Female |
| High Light: | Hot Dip Galvanized Three Piece Coupling,Malleable Iron Three Piece Coupling,Hot Dip Galvanized 3 Piece Coupling |
||

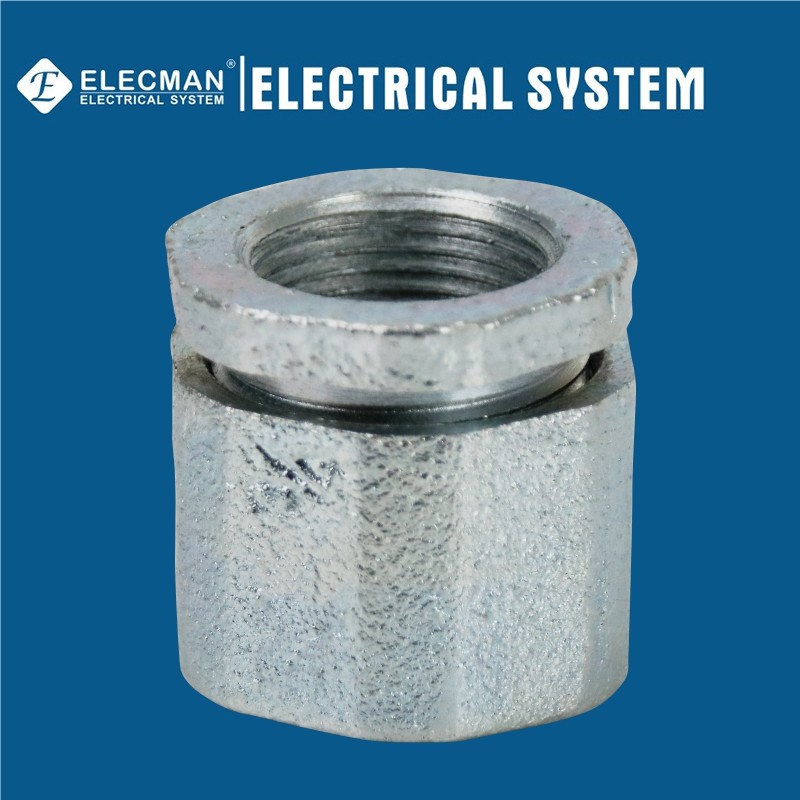

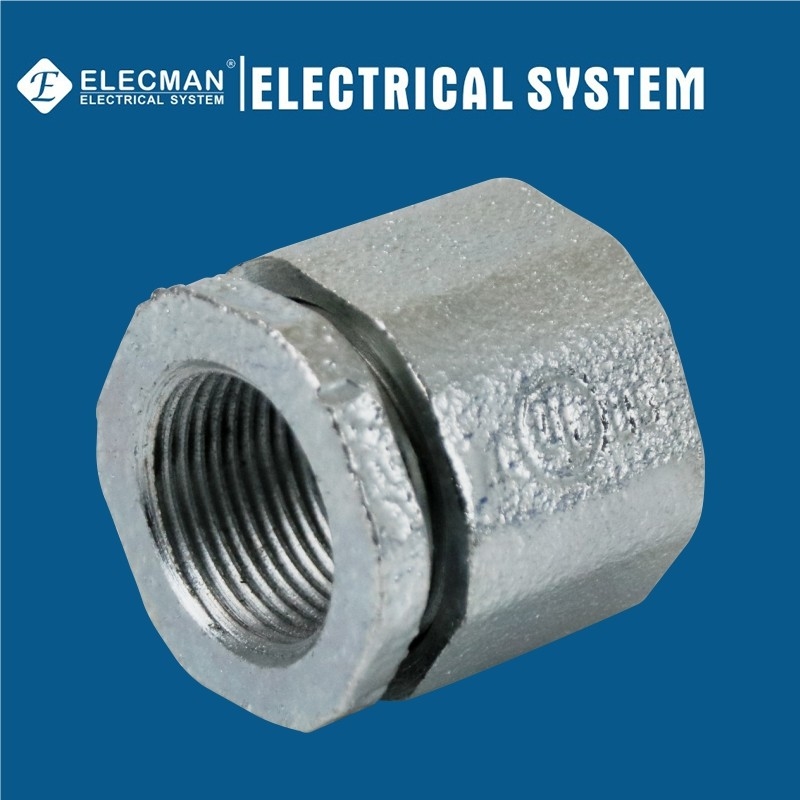

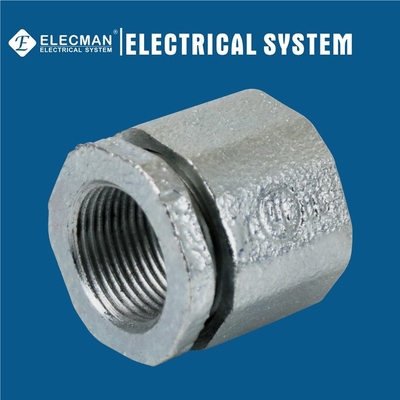

ELECMAN ® Hot Dip Galvanized Malleable Iron 3/4 in. Threaded Three Piece Coupling
Applications
ELECMAN® Malleable iron three-piece coupling include an outer hex ring, threaded ferrule, and hexagonal threaded nipple. These couplings join two pieces of threaded Rigid or IMC conduit that are fixed in place and can’t be rotated. They’re often used when a section of conduit has already been installed but requires additional length.
ELECMAN® The hot dip galvanizing process to conduit bodies, covers and accompanying components such as bushings, couplings and supports. The galvanizing process protects from corrosion induced by the harsh environmental conditions, instilling end user confidence in the quality, reliability and longevity of the fitting.
Features
Certifications and Compliances
ELECMAN® Malleable iron IMC/Rigid three pieces coupling threaded connection shall be produced to the following specification:
Specification Data
ELECMAN provides full size malleable iron IMC/Rigid three pieces coupling threaded connection from 1/2" to 6".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | DIM C(inch) | INNER PACK | MASTER PACK |
| TPC050 | 1/2" | 1.313 | 1.375 | 1.375 | 10 | 100 |
| TPC075 | 3/4" | 1.565 | 1.563 | 1.563 | 5 | 50 |
| TPC100 | 1" | 1.625 | 1.875 | 1.875 | 5 | 50 |
| TPC125 | 1-1/4" | 2.125 | 2.375 | 2.375 | 5 | 25 |
| TPC150 | 1-1/2" | 2.375 | 2.813 | 2.813 | 5 | 25 |
| TPC200 | 2" | 2.625 | 3.313 | 3.313 | 2 | 10 |
| TPC250 | 2-1/2" | 3.125 | 4.063 | 4.063 | 2 | 10 |
| TPC300 | 3" | 3.188 | 4.688 | 4.688 | - | 5 |
| TPC350 | 3-1/2" | 3.563 | 5.063 | 5.063 | - | 1 |
| TPC400 | 4" | 4.000 | 5.750 | 5.750 | - | 1 |
| TPC500 | 5" | 4.000 | 7.250 | 8.250 | - | 1 |
| TPC600 | 6" | 3.875 | 8.313 | 8.313 | - | 1 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the coupling body is made of high quality malleable iron, every parts of the coupling are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for IMC/Rigid fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 6", ELECMAN provides plastic packing inside the outer box.
