| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | TRC |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Zinc-Plated |
|---|---|---|---|
| Type: | 3-Piece Type | Size: | 1/2" To 6" |
| Connection: | Threaded | Usage: | Connect With IMC Rigid Conduit |
| High Light: | 2" 3 Piece Rigid Coupling,Zinc Plated 3 Piece Coupling,IMC Fittings Three Piece Coupling |
||

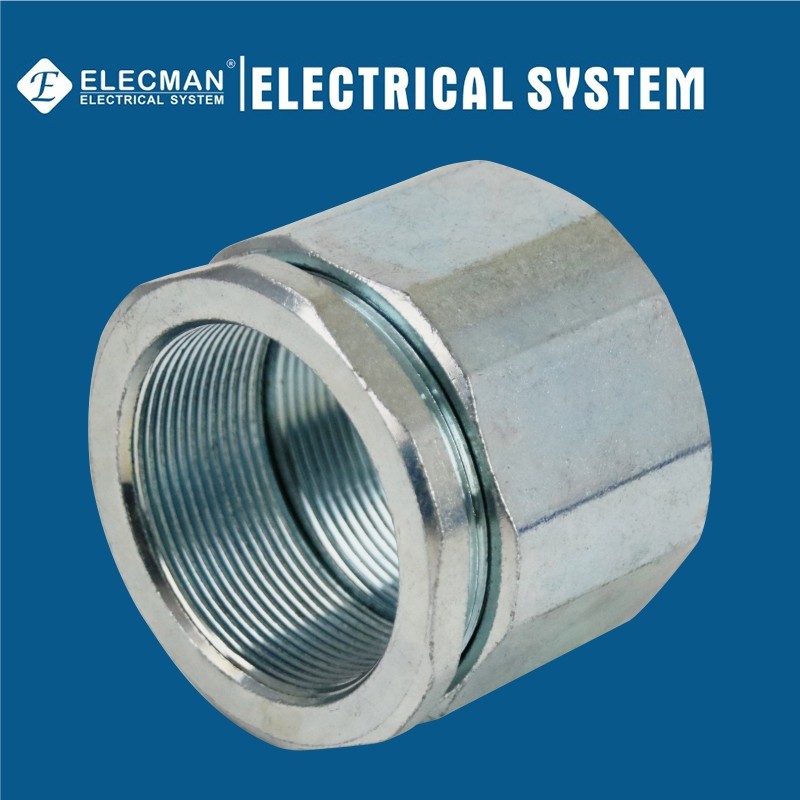

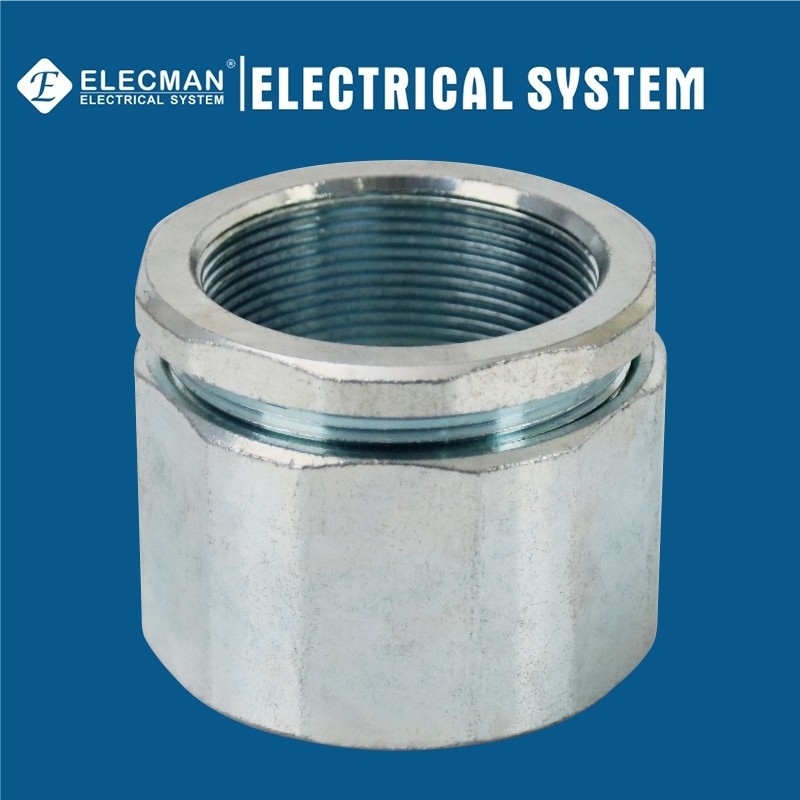

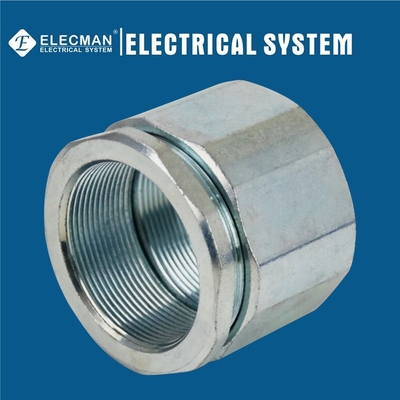

ELECMAN ® 2" Zinc Plated Steel Threaded IMC Rigid 3-Piece Coupling
Applications
ELECMAN® Steel three piece couplings are used to connect IMG/RSG conduits where neither threaded ends are not able to be rotated under confined spaces such as on ceilings or behind walls. Rigid couplings ensure mechanical protection and a secure connection of conduit. Sizes available from 1/2" to 6"; UL approved.
Features
Certifications and Compliances
ELECMAN® Steel IMC/Rigid conduit three pieces coupling threaded connection shall be produced to the following specification:
Specification Data
ELECMAN provides full size steel IMC/Rigid conduit three pieces coupling threaded connection from 1/2" to 6".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | DIM C(inch) | INNER PACK | MASTER PACK |
| TPC050 | 1/2" | 1.313 | 1.375 | 1.375 | 10 | 100 |
| TPC075 | 3/4" | 1.565 | 1.563 | 1.563 | 5 | 50 |
| TPC100 | 1" | 1.625 | 1.875 | 1.875 | 5 | 50 |
| TPC125 | 1-1/4" | 2.125 | 2.375 | 2.375 | 5 | 25 |
| TPC150 | 1-1/2" | 2.375 | 2.813 | 2.813 | 5 | 25 |
| TPC200 | 2" | 2.625 | 3.313 | 3.313 | 2 | 10 |
| TPC250 | 2-1/2" | 3.125 | 4.063 | 4.063 | 2 | 10 |
| TPC300 | 3" | 3.188 | 4.688 | 4.688 | - | 5 |
| TPC350 | 3-1/2" | 3.563 | 5.063 | 5.063 | - | 1 |
| TPC400 | 4" | 4.000 | 5.750 | 5.750 | - | 1 |
| TPC500 | 5" | 4.000 | 7.250 | 8.250 | - | 1 |
| TPC600 | 6" | 3.875 | 8.313 | 8.313 | - | 1 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the coupling body is made of high quality steel, every parts of the coupling are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for IMC/Rigid fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 6", ELECMAN provides plastic packing inside the outer box.
