| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | TRC |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | Three Pieces Type | Size: | 1/2" - 6" |
| Connection: | Threaded Connection | Color: | Sliver |
| High Light: | Steel IMC Rigid Conduit,1-1/4" IMC Rigid Conduit,Three Piece Coupling IMC Conduit |
||

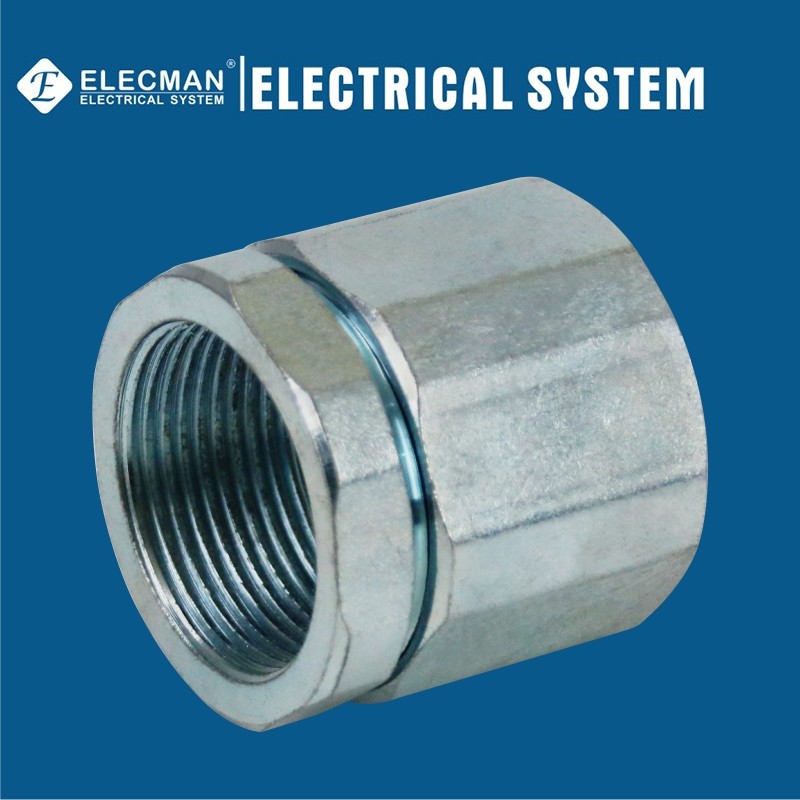

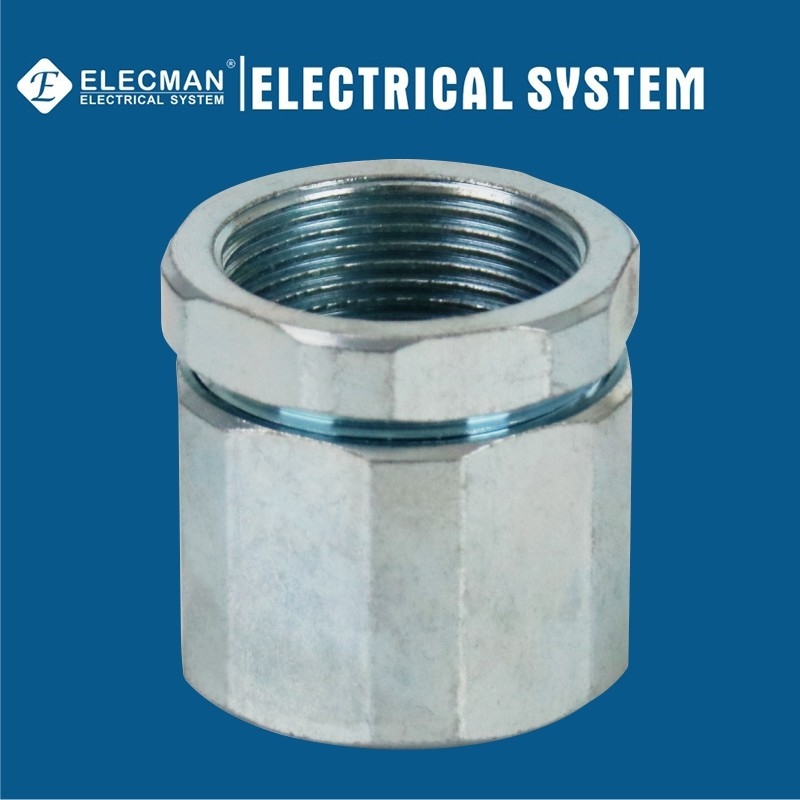

ELECMAN ® Steel IMC Rigid Conduit Thread Three Piece Coupling 1-1/4"
Applications
ELECMAN® Steel three piece type, threaded rigid couplings are used to join two threaded rigid or IMC conduits when neither of them can be turned to fit. Three piece couplings are available in a wide variety of sizes, fabricated from strong and resilient steel to suit multiple applications. Rigid couplings ensure mechanical protection and a secure connection of conduit. Sizes available from 1/2” to 2”; UL approved.
Features
Certifications and Compliances
ELECMAN® Steel IMC/Rigid conduit three pieces coupling threaded connection shall be produced to the following specification:
Specification Data
ELECMAN provides full size steel IMC/Rigid conduit three pieces coupling threaded connection from 1/2" to 6".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | DIM C(inch) | INNER PACK | MASTER PACK |
| TPC050 | 1/2" | 1.313 | 1.375 | 1.375 | 10 | 100 |
| TPC075 | 3/4" | 1.565 | 1.563 | 1.563 | 5 | 50 |
| TPC100 | 1" | 1.625 | 1.875 | 1.875 | 5 | 50 |
| TPC125 | 1-1/4" | 2.125 | 2.375 | 2.375 | 5 | 25 |
| TPC150 | 1-1/2" | 2.375 | 2.813 | 2.813 | 5 | 25 |
| TPC200 | 2" | 2.625 | 3.313 | 3.313 | 2 | 10 |
| TPC250 | 2-1/2" | 3.125 | 4.063 | 4.063 | 2 | 10 |
| TPC300 | 3" | 3.188 | 4.688 | 4.688 | - | 5 |
| TPC350 | 3-1/2" | 3.563 | 5.063 | 5.063 | - | 1 |
| TPC400 | 4" | 4.000 | 5.750 | 5.750 | - | 1 |
| TPC500 | 5" | 4.000 | 7.250 | 8.250 | - | 1 |
| TPC600 | 6" | 3.875 | 8.313 | 8.313 | - | 1 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the coupling body is made of high quality steel, every parts of the coupling are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for IMC/Rigid fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 6", ELECMAN provides plastic packing inside the outer box.
