| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | RTOP |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel/Nylon Compression Ring | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | Insulated, Compression Type | Size: | 1/2" To 4" |
| Application: | Connect EMT Conduit | Color: | Sliver |
| High Light: | Steel 1/2 Raintight Coupling,EMT 1/2 Raintight Coupling,Raintight Compression Coupling Emt |
||

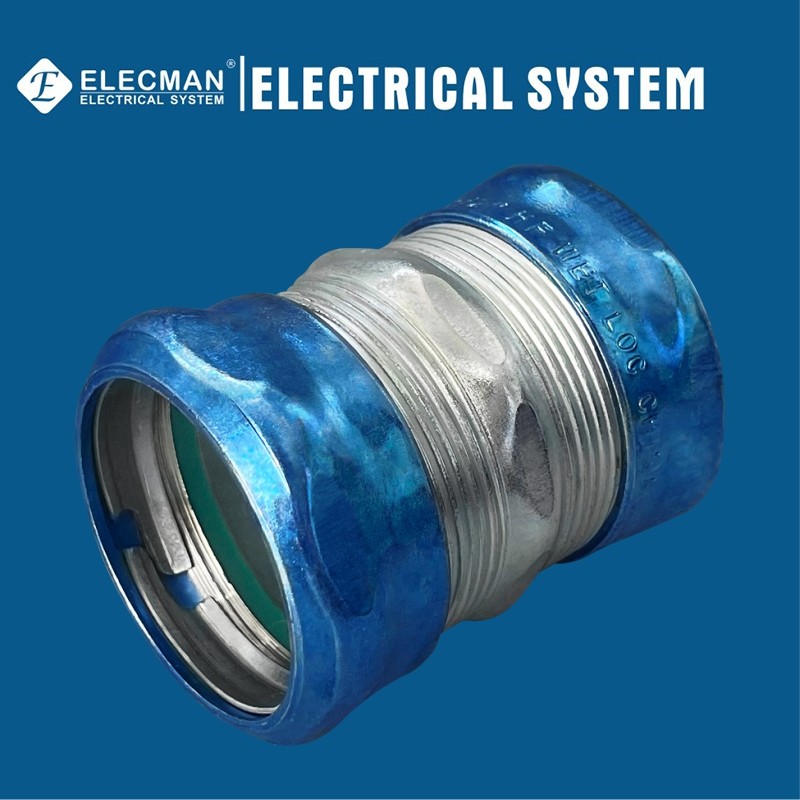

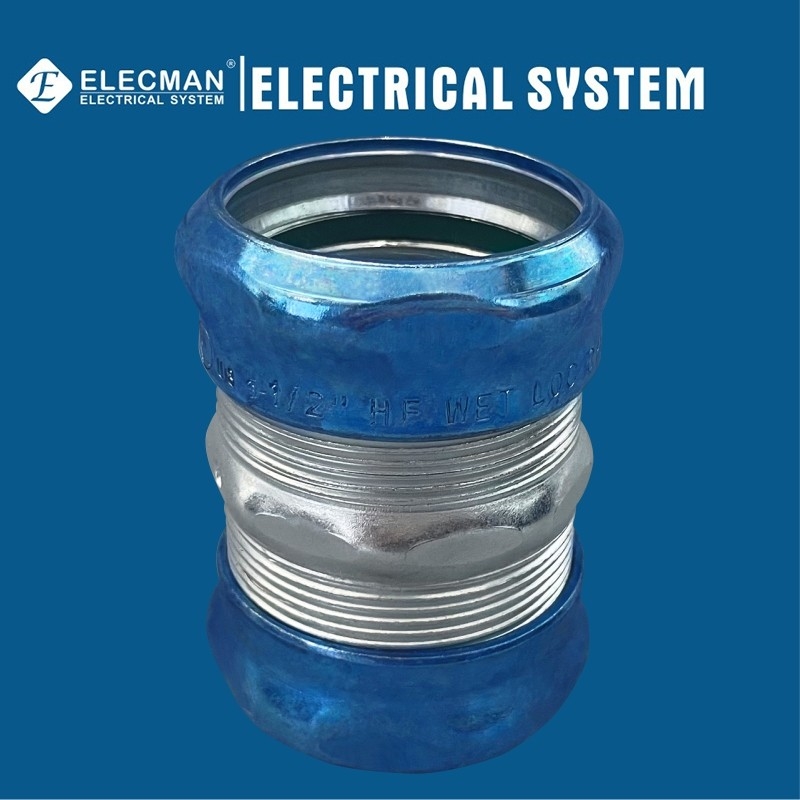

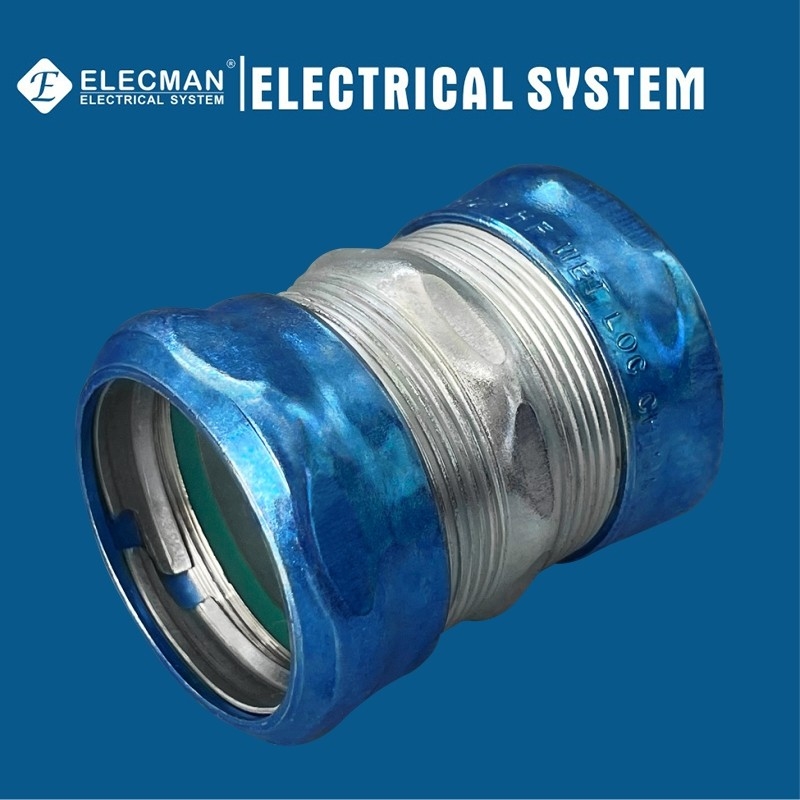

ELECMAN ® Raintight Steel EMT Coupling Compression Type 1-1/2 Inch
Applications
ELECMAN® Raintight compression EMT couplings grip unthreaded EMT conduit all around its diameter for a rigid connection. They position onto the ends of two lengths of conduit and have a gland that tightens with a wrench to lock in place. This type of EMT connector is easy to install with compression fitting technology. This steel EMT connector is available in sizes ranging from 1/2" to up to 4" in diameter.
Features
Certifications and Compliances
ELECMAN® Steel raintight EMT conduit coupling compression type shall be produced to the following specification:
Specification Data
ELECMAN provides full size steel raintight EMT conduit coupling compression type from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | INNER PACK | MASTER PACK | WEIGHT PER C |
| RTOP050 | 1/2" | 1.625 | 1.125 | 50 | 500 | 35.62 |
| RTOP075 | 3/4" | 1.750 | 1.375 | 25 | 250 | 23.95 |
| RTOP100 | 1" | 1.875 | 1.688 | 20 | 200 | 27.38 |
| RTOP125 | 1-1/4" | 2.250 | 2.063 | 10 | 100 | 20.43 |
| RTOP150 | 1-1/2" | 2.250 | 2.250 | 10 | 100 | 24.40 |
| RTOP200 | 2" | 2.375 | 2.750 | 5 | 50 | 15.98 |
| RTOP250 | 2-1/2" | 3.875 | 3.625 | - | 8 | 6.69 |
| RTOP300 | 3" | 4.000 | 4.250 | - | 6 | 6.50 |
| RTOP350 | 3-1/2" | 4.063 | 4.688 | - | 4 | 5.29 |
| RTOP400 | 4" | 4.938 | 5.188 | - | 4 | 6.45 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the coupling body is made of high quality steel, every part of the coupling are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
