| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | RTOP |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel/Nylon Compression Ring | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | Insulated, Compression Type | Size: | 1/2" - 4" |
| Connection: | EMT Conduit To EMT Conduit | Color: | Sliver |
| High Light: | 1 Inch EMT Compression Coupling,Steel 1 Emt Compression Coupling,Raintight EMT Coupling 1 Inch |
||

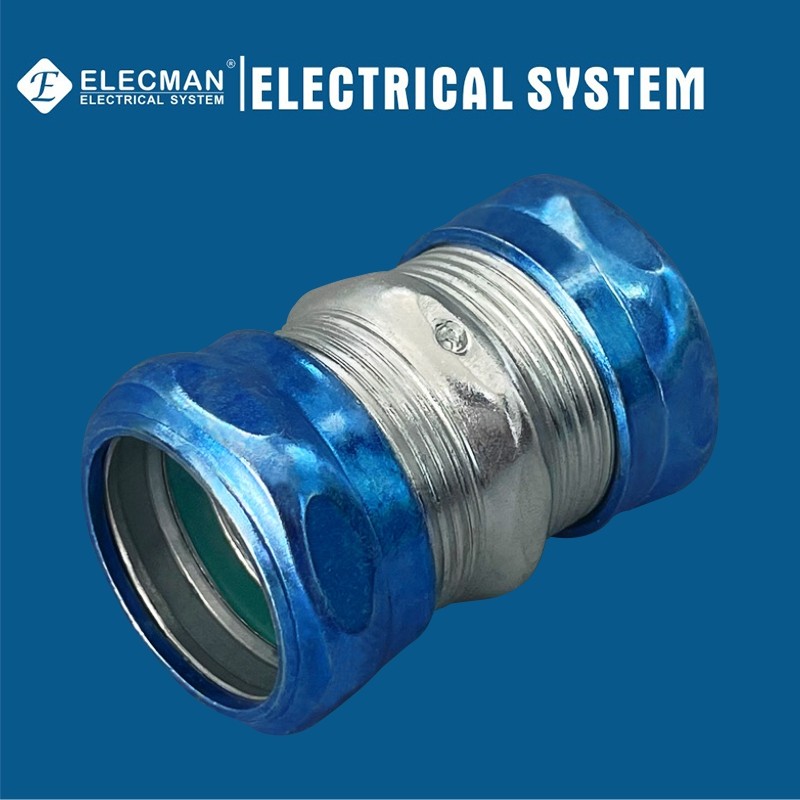

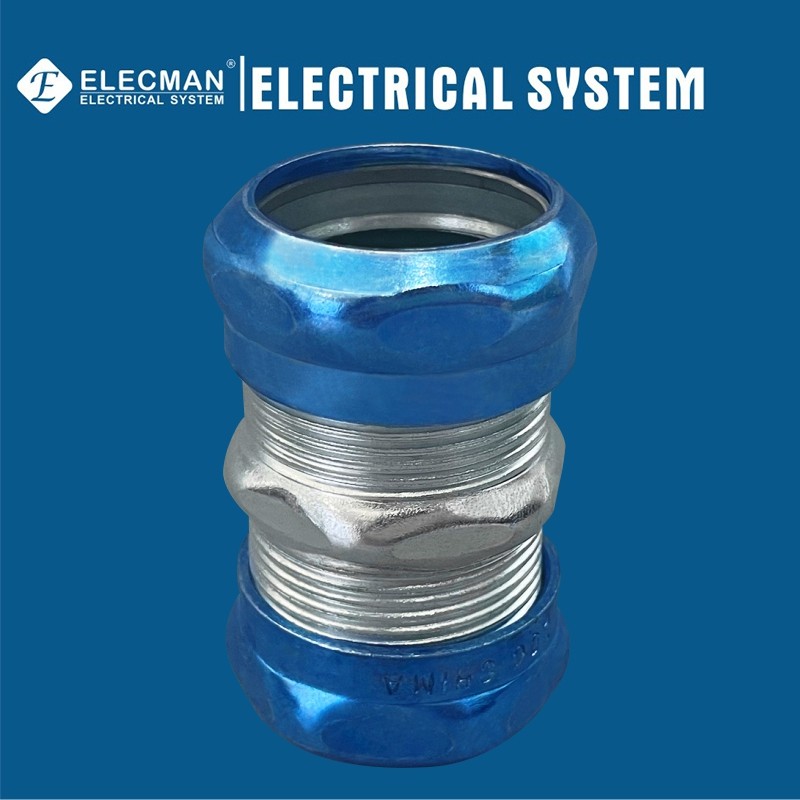

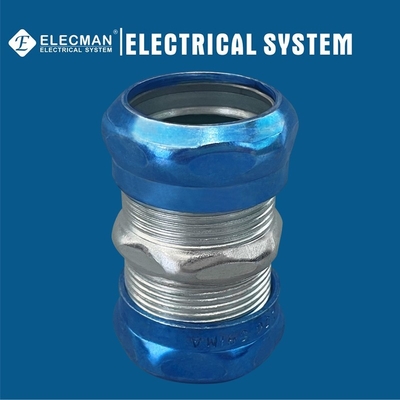

ELECMAN ® Raintight Steel EMT Coupling Compression Type 1 Inch
Applications
ELECMAN® Rain-tight steel EMT compression couplings are used in wet locations to connect the ends of two EMT thinwall conduits together to extend the raceway. The steel construction ensures mechanical protection and the connection between one conduit to another. In damp locations, compression couplings are also of excellent corrosion protection with zinc electroplated.
Features
Certifications and Compliances
ELECMAN® Steel raintight EMT conduit coupling compression type shall be produced to the following specification:
Specification Data
ELECMAN provides full size steel raintight EMT conduit coupling compression type from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | INNER PACK | MASTER PACK | WEIGHT PER C |
| RTOP050 | 1/2" | 1.625 | 1.125 | 50 | 500 | 35.62 |
| RTOP075 | 3/4" | 1.750 | 1.375 | 25 | 250 | 23.95 |
| RTOP100 | 1" | 1.875 | 1.688 | 20 | 200 | 27.38 |
| RTOP125 | 1-1/4" | 2.250 | 2.063 | 10 | 100 | 20.43 |
| RTOP150 | 1-1/2" | 2.250 | 2.250 | 10 | 100 | 24.40 |
| RTOP200 | 2" | 2.375 | 2.750 | 5 | 50 | 15.98 |
| RTOP250 | 2-1/2" | 3.875 | 3.625 | - | 8 | 6.69 |
| RTOP300 | 3" | 4.000 | 4.250 | - | 6 | 6.50 |
| RTOP350 | 3-1/2" | 4.063 | 4.688 | - | 4 | 5.29 |
| RTOP400 | 4" | 4.938 | 5.188 | - | 4 | 6.45 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the coupling body is made of high quality steel, every part of the coupling are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
