| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | RTON |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | Raintight Compression Type | Size: | 1/2" To 4" |
| Application: | Connect EMT Conduit | Connection: | Press Connection |
| High Light: | Raintight 1 Inch EMT Connector,EMT Connector Compression Type 1",Raintight Compression Type EMT Connector |
||

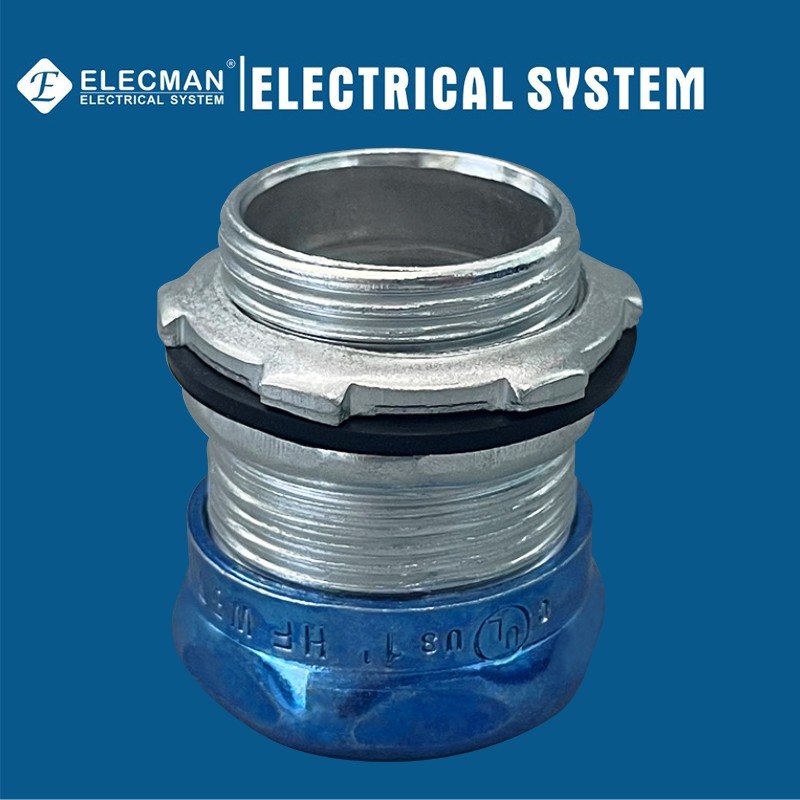

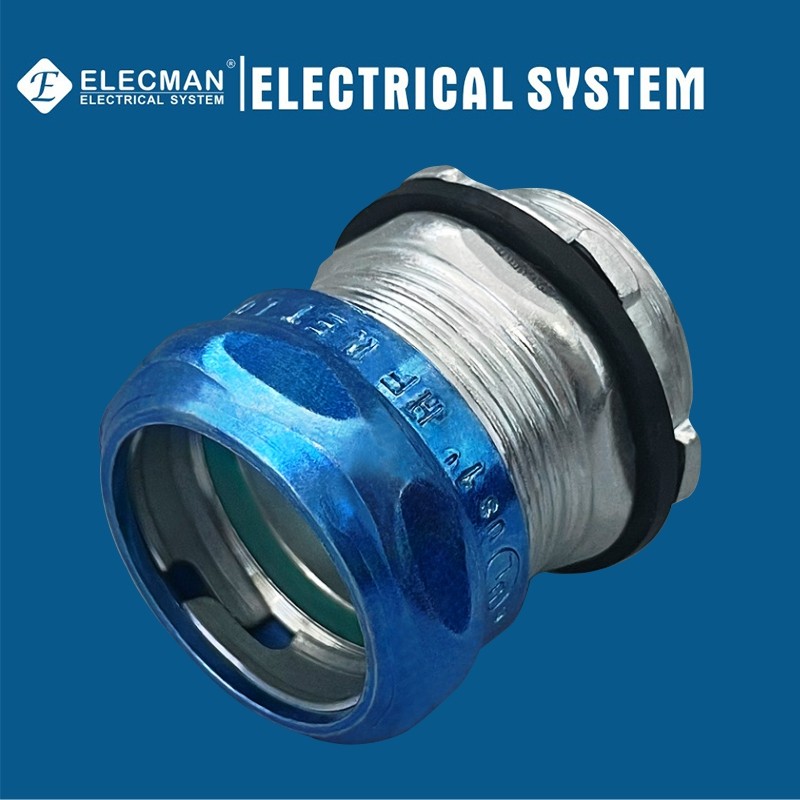

ELECMAN ® Raintight Steel EMT Connector Compression Type 1"
Applications
ELECMAN® Raintight compression connectors are used in wet locations to bond EMT thinwall conduits to electrical junction boxes or enclosures. Available with or without insulated throat liner. Insulated throat prevents cable stripping. Blue anadize compression nut indicates rain-tight application.
Features
Certifications and Compliances
ELECMAN® Steel raintight EMT conduit connector compression type shall be produced to the following specification:
Specification Data
ELECMAN provides full size steel raintight EMT conduit connector compression type from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | DIM C(inch) | INNER PACK | MASTER PACK | WEIGHT PER C |
| RTON050 | 1/2" | 0.625 | 0.438 | 1.125 | 50 | 500 | 27.95 |
| RTON075 | 3/4" | 0.688 | 0.438 | 1.375 | 25 | 250 | 18.71 |
| RTON100 | 1" | 0.688 | 0.500 | 1.688 | 20 | 200 | 21.76 |
| RTON125 | 1-1/4" | 0.938 | 0.688 | 2.063 | 10 | 100 | 17.29 |
| RTON150 | 1-1/2" | 1.063 | 0.688 | 2.250 | 10 | 100 | 20.64 |
| RTON200 | 2" | 1.125 | 0.750 | 2.750 | 5 | 50 | 14.08 |
| RTON250 | 2-1/2" | 1.688 | 0.813 | 3.625 | - | 8 | 5.35 |
| RTON300 | 3" | 1.688 | 0.938 | 4.250 | - | 6 | 5.39 |
| RTON350 | 3-1/2" | 1.813 | 1.000 | 4.688 | - | 4 | 4.37 |
| RTON400 | 4" | 1.813 | 1.000 | 5.188 | - | 4 | 4.85 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality steel, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
