| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | RTON |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel/Neoprene Rubber/Nylon Compression Ring | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | Compression Type | Size: | 1/2" To 4" |
| Application: | Connect EMT Conduit | Color: | Sliver |
| High Light: | 3/4 Inch EMT Connector Compression Type,EMT Connector Compression Type 3/4",EMT Connector Compression Type Raintight |
||

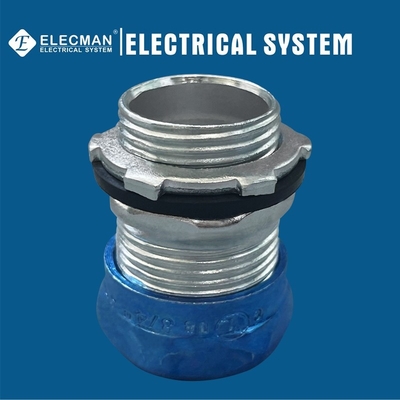

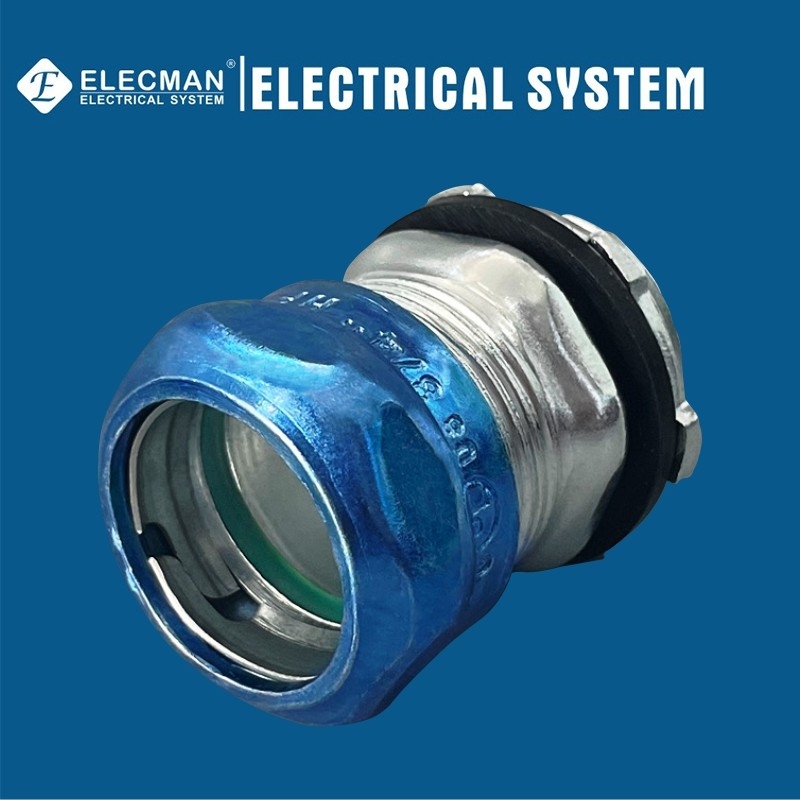

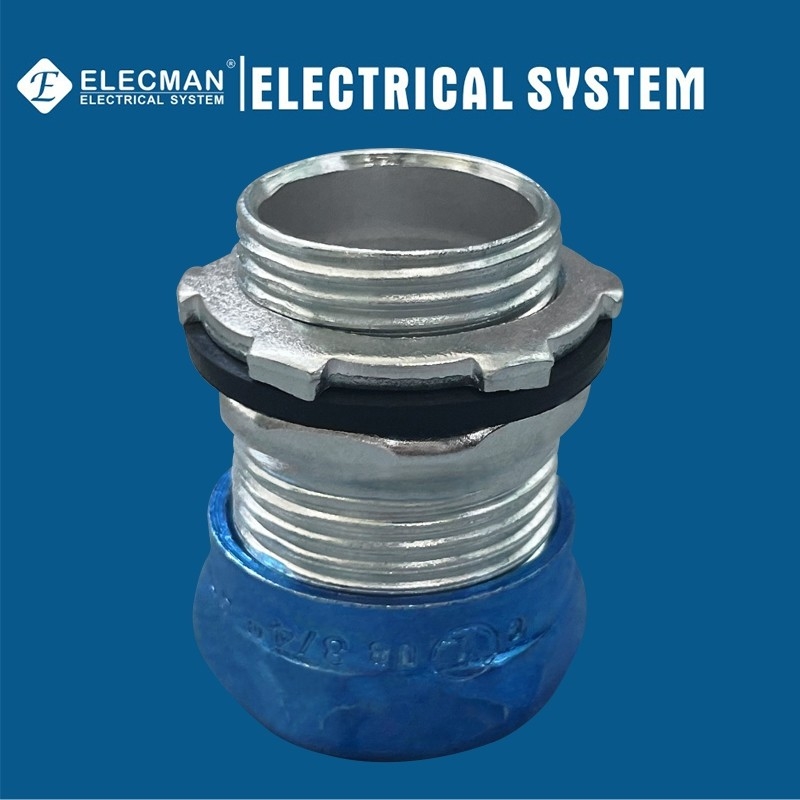

ELECMAN ® Raintight Steel EMT Connector Compression Type 3/4"
Applications
ELECMAN® 3/4 in. EMT raintight compression connector, uninsulated ia used to bond EMT conduit to a box or enclosure use raintight compression connectors in wet locations. Offered in two styles, insulated or noninsulated. Designed to comply with current raintight test requirements. Available in trade sizes of 1/2 in. through 4 in.
Features
Certifications and Compliances
ELECMAN® Steel raintight EMT conduit connector compression type shall be produced to the following specification:
Specification Data
ELECMAN provides full size steel raintight EMT conduit connector compression type from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | DIM C(inch) | INNER PACK | MASTER PACK | WEIGHT PER C |
| RTON050 | 1/2" | 0.625 | 0.438 | 1.125 | 50 | 500 | 27.95 |
| RTON075 | 3/4" | 0.688 | 0.438 | 1.375 | 25 | 250 | 18.71 |
| RTON100 | 1" | 0.688 | 0.500 | 1.688 | 20 | 200 | 21.76 |
| RTON125 | 1-1/4" | 0.938 | 0.688 | 2.063 | 10 | 100 | 17.29 |
| RTON150 | 1-1/2" | 1.063 | 0.688 | 2.250 | 10 | 100 | 20.64 |
| RTON200 | 2" | 1.125 | 0.750 | 2.750 | 5 | 50 | 14.08 |
| RTON250 | 2-1/2" | 1.688 | 0.813 | 3.625 | - | 8 | 5.35 |
| RTON300 | 3" | 1.688 | 0.938 | 4.250 | - | 6 | 5.39 |
| RTON350 | 3-1/2" | 1.813 | 1.000 | 4.688 | - | 4 | 4.37 |
| RTON400 | 4" | 1.813 | 1.000 | 5.188 | - | 4 | 4.85 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality steel, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
