| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | SCCP |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | Compression Type | Size: | 1/2" - 4" |
| Connection: | EMT Conduit To EMT Conduit | Color: | Sliver |
| High Light: | EMT Coupling Compression Type 1 Inch,1'' EMT Coupling Compression Type,Zinc Plated 1 Inch EMT Coupling |
||

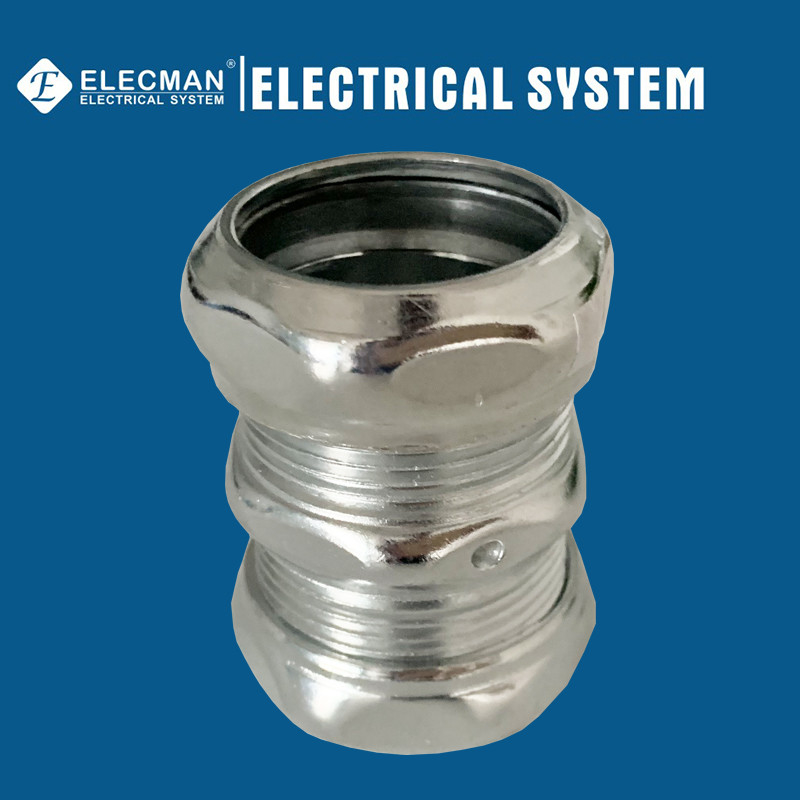

ELECMAN ® Steel EMT Coupling Compression Type 1 Inch
Applications
ELECMAN® EMT compression couplings are used to connect the ends of two unthreaded EMT conduits together. EMT compression couplings provide concrete tight connections when taped. Additionally, these couplings eliminate the need to thread bald conduits to fit old threaded couplings. EMT compression couplings are steel and with zinc-plated surface for excellent corrosion protection in damp location.
Features
Certifications and Compliances
ELECMAN® Steel EMT conduit coupling compression EMT conduit to EMT conduit type shall be produced to the following specification:
Specification Data
ELECMAN provides full size steel EMT conduit coupling compression EMT conduit to EMT conduit type from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | INNER PACK | MASTER PACK | WEIGHT PER C |
| SCCP050 | 1/2" | 1.625 | 1.125 | 50 | 500 | 35.50 |
| SCCP075 | 3/4" | 1.750 | 1.375 | 25 | 250 | 22.20 |
| SCCP100 | 1" | 1.875 | 1.688 | 50 | 200 | 25.10 |
| SCCP125 | 1-1/4" | 2.250 | 2.063 | 25 | 100 | 20.50 |
| SCCP150 | 1-1/2" | 2.250 | 2.250 | 10 | 40 | 9.30 |
| SCCP200 | 2" | 2.375 | 2.750 | 5 | 20 | 6.00 |
| SCCP250 | 2-1/2" | 3.875 | 3.625 | - | 12 | 10.20 |
| SCCP300 | 3" | 4.000 | 4.250 | - | 12 | 13.05 |
| SCCP350 | 3-1/2" | 4.063 | 4.688 | - | 6 | 7.60 |
| SCCP400 | 4" | 4.938 | 5.188 | - | 6 | 9.34 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the coupling body is made of high quality steel, every part of the coupling are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
