| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | SCCN |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | Compression Insulated Type | Size: | 1/2" - 4" |
| Application: | Wire Protection | Color: | Sliver |
| High Light: | Compression Type 2 Inch Emt Connectors,EMT Connector Compression Type 2",2" Insulated Emt Connectors |
||

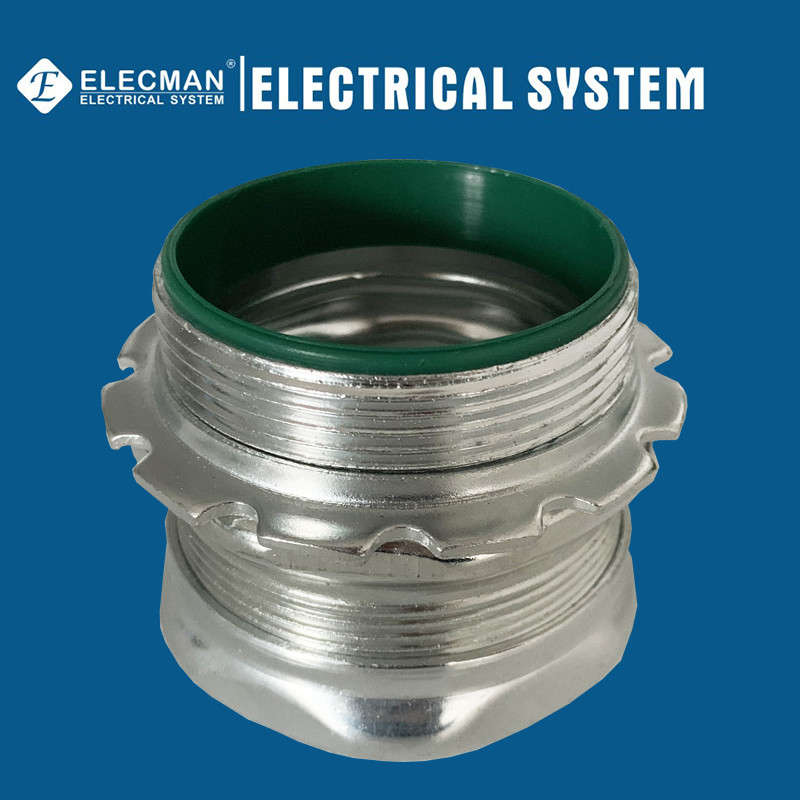

ELECMAN ® Steel EMT Connector Compression Insulated Type 2"
Applications
ELECMAN® Steel Insulated EMT compression connector of trade size 2-inches, is perfect for grounding and securing EMT raceways to boxes and enclosures. Concrete-tight connector features zinc-plated steel construction. It measures 1.52-Inch x 2.78-Inch. It offers compression to male hub threads NPS connection. Connector is UL listed.
Features
Certifications and Compliances
ELECMAN® Insulated steel EMT conduit connector compression type shall be produced to the following specification:
Specification Data
ELECMAN provides full size insulated steel EMT conduit connector compression type from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | DIM C(inch) | INNER PACK | MASTER PACK | WEIGHT PER C |
| SCCN050 | 1/2" | 0.625 | 0.500 | 1.125 | 50 | 500 | 26.25 |
| SCCN075 | 3/4" | 0.688 | 0.500 | 1.375 | 25 | 250 | 17.25 |
| SCCN100 | 1" | 0.688 | 0.562 | 1.688 | 50 | 200 | 20.45 |
| SCCN125 | 1-1/4" | 0.938 | 0.767 | 2.063 | 25 | 100 | 16.95 |
| SCCN150 | 1-1/2" | 1.063 | 0.767 | 2.250 | 10 | 40 | 8.25 |
| SCCN200 | 2" | 1.125 | 0.829 | 2.750 | 5 | 20 | 5.45 |
| SCCN250 | 2-1/2" | 1.688 | 0.923 | 3.625 | - | 12 | 8.47 |
| SCCN300 | 3" | 1.688 | 1.048 | 4.250 | - | 12 | 10.75 |
| SCCN350 | 3-1/2" | 1.813 | 1.110 | 4.688 | - | 6 | 6.05 |
| SCCN400 | 4" | 1.813 | 1.110 | 5.188 | - | 6 | 7.05 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality steel, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
