| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | SCCN |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | Compression Insulated Type | Size: | 1/2" - 4" |
| Application: | Wire Protection | Color: | Sliver |
| High Light: | 1" Insulated EMT Connectors,1/2" Insulated EMT Connectors,EMT Connector Compression Type Steel |
||

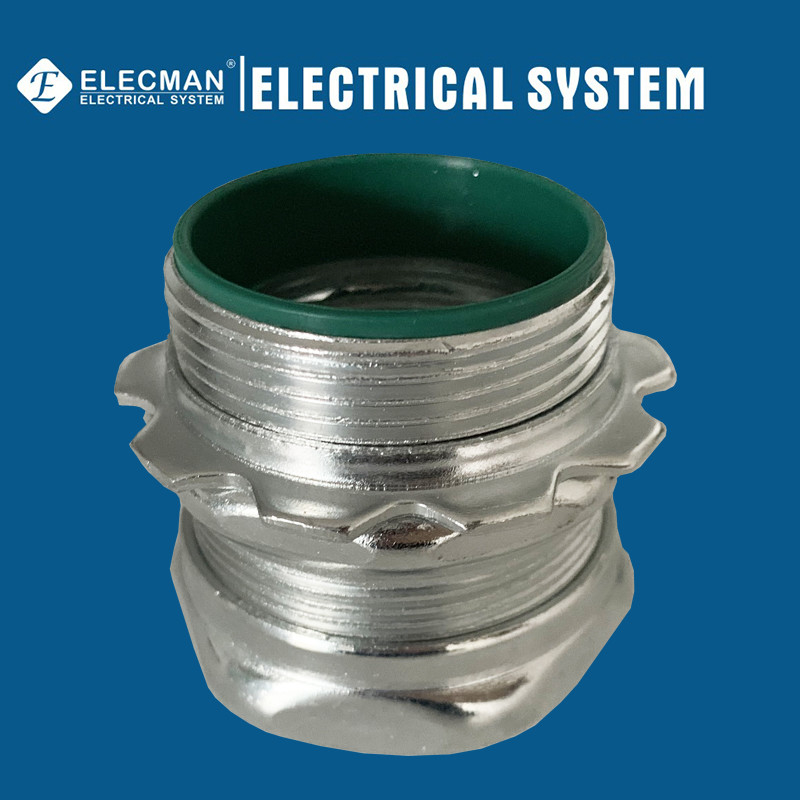

ELECMAN ® Steel EMT Connector Compression Insulated Type 1-1/2"
Applications
ELECMAN® EMT steel compression insulated connectors are used in dry locations to bond unthreaded EMT conduit to electrical junction boxes or enclosures. EMT compression connectors provide concrete tight connections when taped Its steel construction maintains mechanical protection and solid grounding of the conduit to the designated electrical junction box or enclosure. They eliminate the need to thread bald conduits to attach them to electrical junction boxes or enclosures. Compression connectors are pure zinc material for excellent corrosion protection.
Features
Certifications and Compliances
ELECMAN® Insulated steel EMT conduit connector compression type shall be produced to the following specification:
Specification Data
ELECMAN provides full size insulated steel EMT conduit connector compression type from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | DIM C(inch) | INNER PACK | MASTER PACK | WEIGHT PER C |
| SCCN050 | 1/2" | 0.625 | 0.500 | 1.125 | 50 | 500 | 26.25 |
| SCCN075 | 3/4" | 0.688 | 0.500 | 1.375 | 25 | 250 | 17.25 |
| SCCN100 | 1" | 0.688 | 0.562 | 1.688 | 50 | 200 | 20.45 |
| SCCN125 | 1-1/4" | 0.938 | 0.767 | 2.063 | 25 | 100 | 16.95 |
| SCCN150 | 1-1/2" | 1.063 | 0.767 | 2.250 | 10 | 40 | 8.25 |
| SCCN200 | 2" | 1.125 | 0.829 | 2.750 | 5 | 20 | 5.45 |
| SCCN250 | 2-1/2" | 1.688 | 0.923 | 3.625 | - | 12 | 8.47 |
| SCCN300 | 3" | 1.688 | 1.048 | 4.250 | - | 12 | 10.75 |
| SCCN350 | 3-1/2" | 1.813 | 1.110 | 4.688 | - | 6 | 6.05 |
| SCCN400 | 4" | 1.813 | 1.110 | 5.188 | - | 6 | 7.05 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality steel, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
