| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | SCCN |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Carbon Steel | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | Compression | Size: | 1/2" To 4" |
| Application: | Wire Protection | Color: | Sliver |
| High Light: | Compression Type 1 Inch EMT Connector,EMT Connector Compression Type 1 In,Steel 1 Inch EMT Connector |
||

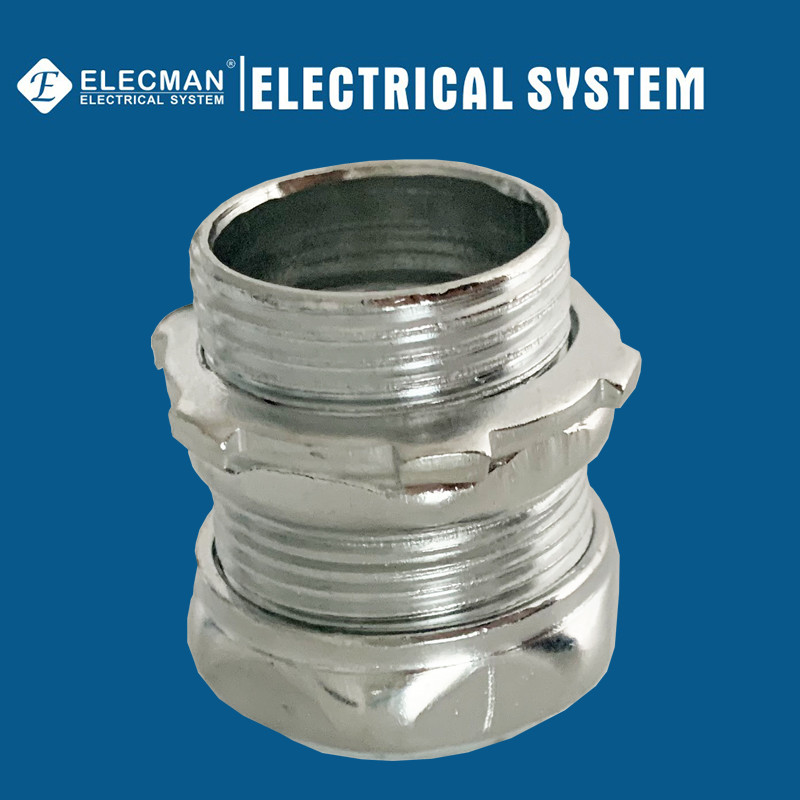

ELECMAN ® Steel EMT Connector Compression Type 1 In.
Applications
ELECMAN® Compression type steel constructed EMT connectors offer ease of use and provide a secure, concrete tight joining of thin wall EMT conduit. Assemblies include zinc plated steel locknut. All models available in sizes from 1/2" to 4", fabricated from strong, resilient steel with a zinc plated finish to ensure mechanical protection, UL listed.
Features
Certifications and Compliances
ELECMAN® Steel EMT conduit connector compression EMT conduit to box type shall be produced to the following specification:
Specification Data
ELECMAN provides full size Steel EMT conduit connector compression EMT conduit to box type from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | DIM C(inch) | INNER PACK | MASTER PACK | WEIGHT PER C |
| SCCN050 | 1/2" | 0.625 | 0.438 | 1.125 | 50 | 500 | 26.20 |
| SCCN075 | 3/4" | 0.688 | 0.438 | 1.375 | 25 | 250 | 17.20 |
| SCCN100 | 1" | 0.688 | 0.500 | 1.688 | 50 | 200 | 20.40 |
| SCCN125 | 1-1/4" | 0.938 | 0.688 | 2.063 | 25 | 100 | 16.90 |
| SCCN150 | 1-1/2" | 1.063 | 0.688 | 2.250 | 10 | 40 | 8.20 |
| SCCN200 | 2" | 1.125 | 0.750 | 2.750 | 5 | 20 | 5.40 |
| SCCN250 | 2-1/2" | 1.688 | 0.813 | 3.625 | - | 12 | 8.42 |
| SCCN300 | 3" | 1.688 | 0.938 | 4.25 | - | 12 | 10.70 |
| SCCN350 | 3-1/2" | 1.813 | 1.000 | 4.688 | - | 6 | 6.00 |
| SCCN400 | 4" | 1.813 | 1.000 | 5.188 | - | 6 | 7.00 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality steel, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
