| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | SCOP |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Carbon Steel | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | Set Screw Type | Size: | 1/2" To 4" |
| Connection: | EMT Conduit To EMT Conduit | Color: | Sliver |
| High Light: | 3'' EMT Coupling Set Screw Type,EMT Coupling Set Screw Type 1/2'',Carbon Steel 3 Inch EMT Coupling |
||

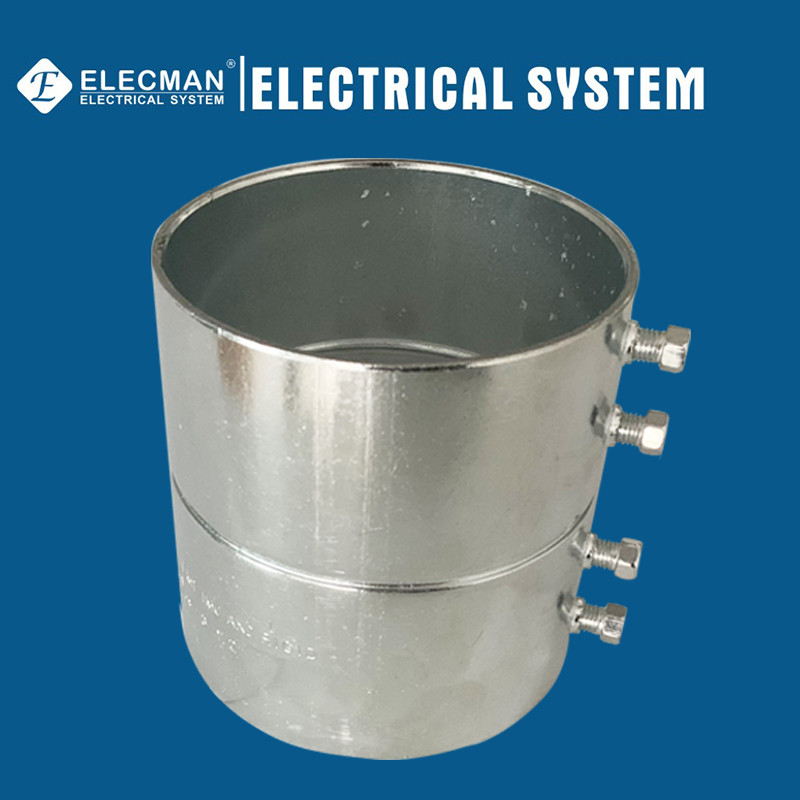

ELECMAN ® Steel EMT Coupling Set Screw Type 3-1/2 Inch
Applications
ELECMAN® Steel set screw EMT coupling is used in dry locations to connect the ends of two EMT conduits together to extend the raceway. The steel construction ensures mechanical protection and connection between one conduit to another. In addition, in damp locations, set-screw couplings are of excellent corrosion protection with zinc electroplated. UL passed to ensure the quality.
Features
Certifications and Compliances
ELECMAN® Steel EMT conduit couplings set screw EMT conduit to EMT conduit type shall be produced to the following specifications:
Specification Data
ELECMAN provides full size steel EMT conduit couplings set screw EMT conduit to EMT conduit type from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | INNER PACK | MASTER PACK | WEIGHT PER C |
| SCOP050 | 1/2" | 0.875 | 1.566 | 50 | 500 | 18.40 |
| SCOP075 | 3/4" | 1.130 | 1.817 | 25 | 250 | 12.00 |
| SCOP100 | 1" | 1.190 | 2.254 | 50 | 200 | 18.02 |
| SCOP125 | 1-1/4" | 1.750 | 2.064 | 25 | 100 | 15.73 |
| SCOP150 | 1-1/2" | 2.000 | 3.000 | 10 | 100 | 7.86 |
| SCOP200 | 2" | 2.440 | 3.250 | 5 | 50 | 5.37 |
| SCOP250 | 2-1/2" | 3.130 | 4.000 | - | 12 | 7.40 |
| SCOP300 | 3" | 3.750 | 4.250 | - | 12 | 9.10 |
| SCOP350 | 3-1/2" | 4.250 | 4.500 | - | 6 | 5.80 |
| SCOP400 | 4" | 4.750 | 4.750 | - | 6 | 6.70 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the coupling body is made of high quality steel, every part of the coupling are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
