| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | SCON |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | Two Set Screw Type | Size: | 1/2" - 4" |
| Color: | Sliver | Application: | Wire Protection |
| High Light: | 3 Emt Connector Set Screw Type,1/2'' EMT Connector Set Screw,1/2 In Emt Set Screw Connector |
||

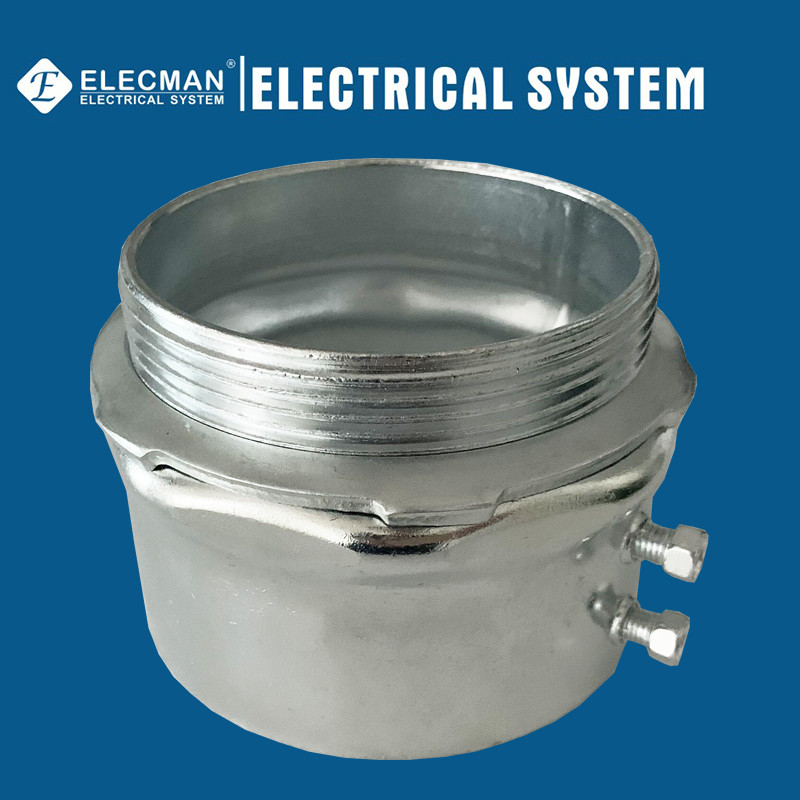

ELECMAN ® Steel EMT Connector Set Screw Type 3-1/2 in.
Applications
ELECMAN® 3-1/2" uninsulated steel set screw electrical connectors are used in dry locations to bond 3-1/2" EMT thinwall conduits to electrical junction boxes or enclosures. Uninsulated steel set screw connectors provide concrete tight connections when taped and properly secured with the included locknut, and are rated for electrical applications above 600 volts.
ELECMAN® Steel EMT set screw connectors heavy gauge steel construction maintains mechanical protection and solid grounding of the conduit to the designated electrical junction box or enclosure. Additionally, set screw connectors are zinc electroplated for excellent corrosion protection. Set screw connectors are also made with a versatile combination head screw that can securely fasten a conduit to an electrical junction box using a slotted, Phillips, or Robertson head screw driver.
Features
Certifications and Compliances
ELECMAN® Steel EMT connectors set screw type shall be produced to the following specifications:
Specification Data
ELECMAN provides full size steel EMT connectors set screw type from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | INNER PACK | MASTER PACK | WEIGHT PER C |
| SCON050 | 1/2" | 0.880 | 1.445 | 50 | 500 | 19.50 |
| SCON075 | 3/4" | 1.130 | 1.504 | 25 | 250 | 13.00 |
| SCON100 | 1" | 1.380 | 1.753 | 50 | 200 | 17.08 |
| SCON125 | 1-1/4" | 1.380 | 2.310 | 25 | 100 | 15.94 |
| SCON150 | 1-1/2" | 2.750 | 2.250 | 10 | 100 | 7.26 |
| SCON200 | 2" | 2.000 | 2.380 | 5 | 50 | 4.91 |
| SCON250 | 2-1/2" | 3.440 | 3.190 | - | 12 | 6.50 |
| SCON300 | 3" | 3.130 | 3.810 | - | 12 | 8.30 |
| SCON350 | 3-1/2" | 4.750 | 4.310 | - | 6 | 5.00 |
| SCON400 | 4" | 4.250 | 4.880 | - | 6 | 5.78 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality steel, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
