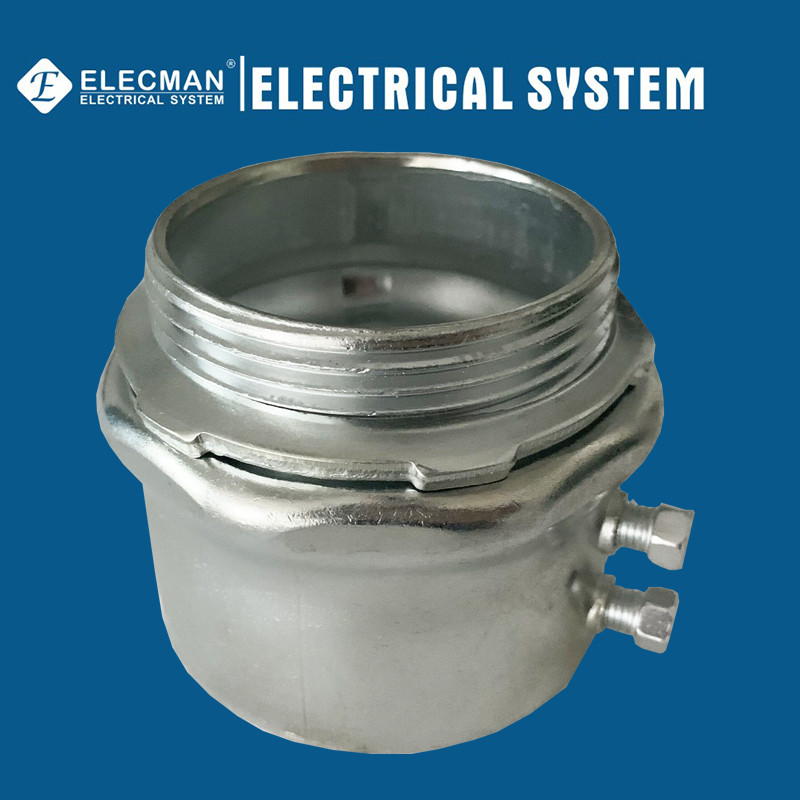

Steel EMT Connector Set Screw Type 2-1/2 In.


ELECMAN ® Steel EMT Connector Set Screw Type 2-1/2 in.

Applications

ELECMAN® Steel EMT set screw connectors of trade size 2-1/2", is perfect for joining EMT conduit to a box or enclosure. This concrete-tight connector features steel construction and zinc-plated finish. It measures 3.44-Inch Dia x 3.19-Inch. It has set screw to male NPS connection. Connector is UL listed, CSA certified and NEMA rated.

Features

• All steel construction insures mechanical protection for the raceway.
• Provide concrete-tight connections when taped.
• Male hub treads NPS.
• Insulated type are available.
• All components are zinc electro-plated for corrosion protection.
• Tri-head screws may be installed using a slotted, Phillips, or Robertson head screwdriver.
• 2-1/2 in. to 4 in. trade sizes are also UL listed for use on Rigid/IMC conduit, allowing for design and installation flexibility.
• 1/2 in. to 1 in. have one set screw, 1-1/4 in. to 4 in. have two set screws.


Certifications and Compliances

ELECMAN® Steel EMT connectors set screw type shall be produced to the following specifications:

• UL Listed
• File No.: E513114




Specification Data

ELECMAN provides full size steel EMT connectors set screw type from 1/2" to 4".







Quality Control

ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality steel, every part of the connector are produced according to the high standard.

Packing Information

Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
