| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | SCON |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | Set Screw Type | Size: | 1/2" - 4" |
| Color: | Sliver | Application: | Wire Protection |
| High Light: | 2'' EMT Connector Set Screw Type,2 In Emt Connector Screw Type,Steel 2 Emt Connector |
||

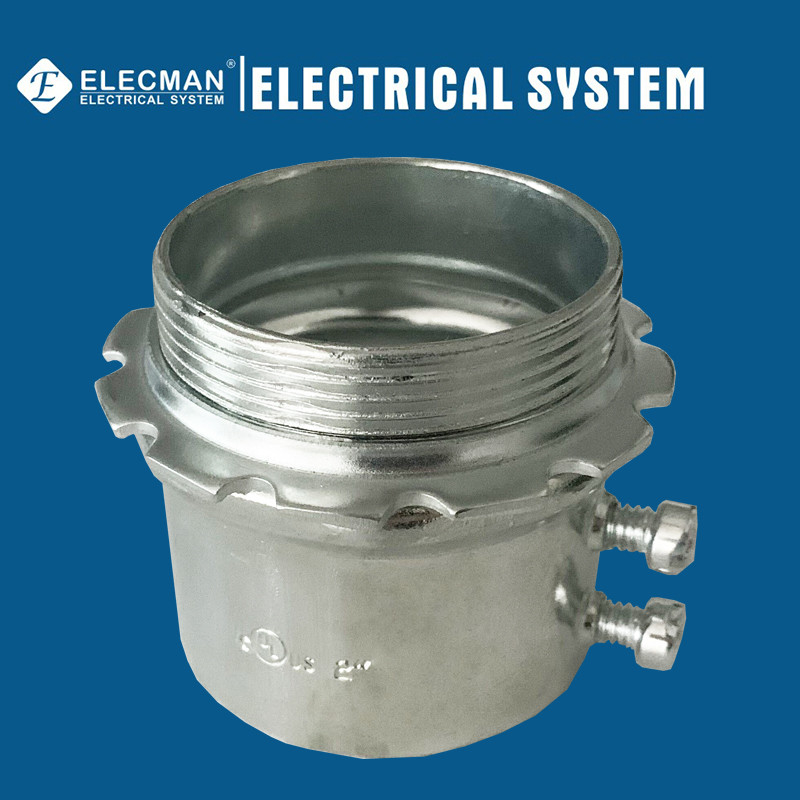

ELECMAN ® Steel EMT Connector Set Screw Type 2 in.
Applications
ELECMAN® Steel EMT set screw connectors are used to affix EMT conduit to a junction box or enclosure. These connectors are designed for use in dry locations only. When taped, they can be used for concrete-tight connections. cUL/US listed. All steel construction ensures mechanical protection for the raceway. Suitable for applications above 600 volts.
Features
Certifications and Compliances
ELECMAN® Steel EMT connectors set screw type shall be produced to the following specifications:
Specification Data
ELECMAN provides full size steel EMT connectors set screw type from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | INNER PACK | MASTER PACK | WEIGHT PER C |
| SCON050 | 1/2" | 0.880 | 1.445 | 50 | 500 | 19.50 |
| SCON075 | 3/4" | 1.130 | 1.504 | 25 | 250 | 13.00 |
| SCON100 | 1" | 1.380 | 1.753 | 50 | 200 | 17.08 |
| SCON125 | 1-1/4" | 1.380 | 2.310 | 25 | 100 | 15.94 |
| SCON150 | 1-1/2" | 2.750 | 2.250 | 10 | 100 | 7.26 |
| SCON200 | 2" | 2.000 | 2.380 | 5 | 50 | 4.91 |
| SCON250 | 2-1/2" | 3.440 | 3.190 | - | 12 | 6.50 |
| SCON300 | 3" | 3.130 | 3.810 | - | 12 | 8.30 |
| SCON350 | 3-1/2" | 4.750 | 4.310 | - | 6 | 5.00 |
| SCON400 | 4" | 4.250 | 4.880 | - | 6 | 5.78 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality steel, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
