| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | SCON |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | Set Screw | Size: | 1/2 Inch - 4 Inch |
| Connection: | EMT Conduit To Box | Application: | Connect EMT Conduit |
| High Light: | 1/4 In Emt Connector Screw Type,1'' EMT Connector Set Screw Type,Set Screw Type 4 Emt Connector |
||

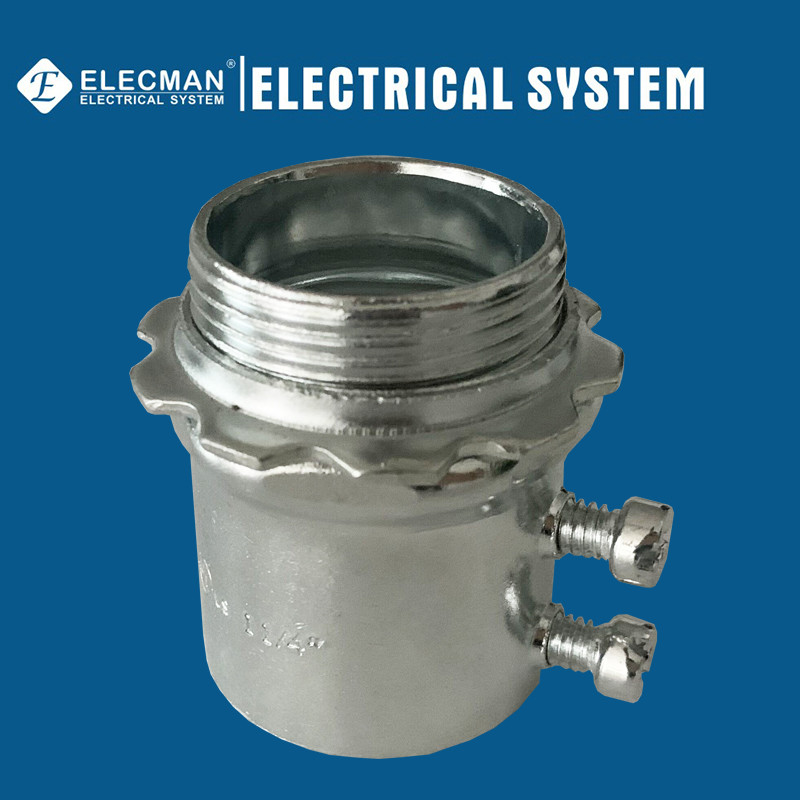

ELECMAN ® Steel EMT Connector Set Screw Type 1-1/4 in.
Applications
ELECMAN® Steel EMT connectors with set screw type assembly provide secure concrete tight protection when taped and are available in sizes from 1/2" to 4". Applications include use in dry locations to bond EMT thin wall conduits to electrical boxes or enclosures. Model sizes 2- 1/2" to 4" are suitable for both EMT and rigid conduit. Assemblies include steel locknut; constructed of strong and long lasting steel with zinc plated finish; UL listed. We can supply two different raw material EMT connector and couplings, zinc and steel, satisfy different customer's requirements.
Features
Certifications and Compliances
ELECMAN® Steel EMT connectors set screw type shall be produced to the following specifications:
Specification Data
ELECMAN provides full size steel EMT connectors set screw type from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | INNER PACK | MASTER PACK | WEIGHT PER C |
| SCON050 | 1/2" | 0.880 | 1.445 | 50 | 500 | 19.50 |
| SCON075 | 3/4" | 1.130 | 1.504 | 25 | 250 | 13.00 |
| SCON100 | 1" | 1.380 | 1.753 | 50 | 200 | 17.08 |
| SCON125 | 1-1/4" | 1.380 | 2.310 | 25 | 100 | 15.94 |
| SCON150 | 1-1/2" | 2.750 | 2.250 | 10 | 100 | 7.26 |
| SCON200 | 2" | 2.000 | 2.380 | 5 | 50 | 4.91 |
| SCON250 | 2-1/2" | 3.440 | 3.190 | - | 12 | 6.50 |
| SCON300 | 3" | 3.130 | 3.810 | - | 12 | 8.30 |
| SCON350 | 3-1/2" | 4.750 | 4.310 | - | 6 | 5.00 |
| SCON400 | 4" | 4.250 | 4.880 | - | 6 | 5.78 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality steel, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
