| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | SCON |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | Set Screw Type | Size: | 1/2" To 4" |
| Connection: | EMT Conduit To Box | Color: | Sliver |
| High Light: | 3/4 In Emt Connector Screw Type,Silver EMT Connector Set Screw Type,Emt Connector Screw Type Zinc Plated |
||

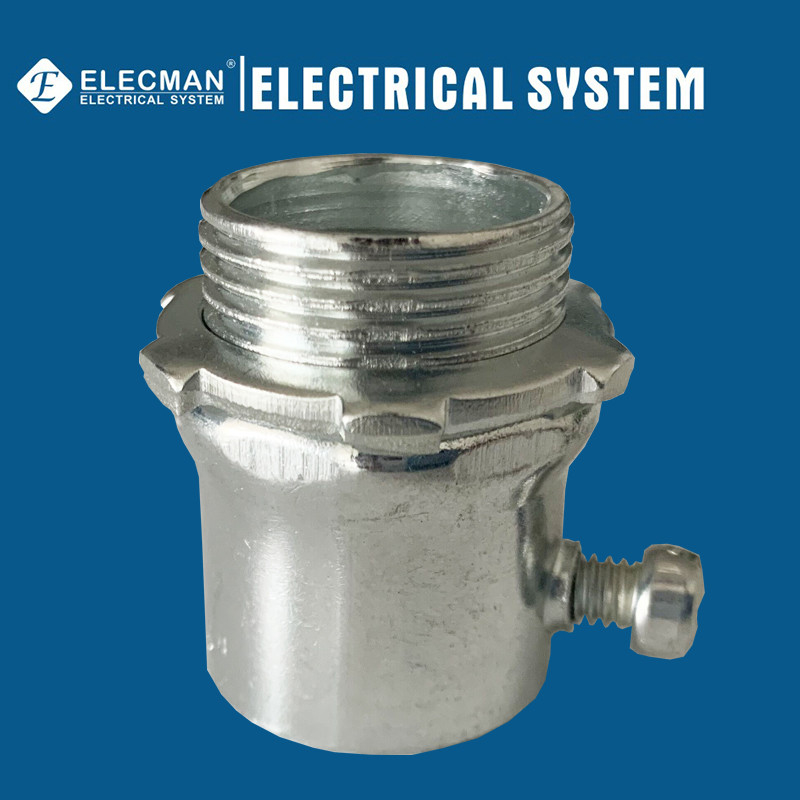

ELECMAN ® Steel EMT Connector Set Screw Type 3/4 in.
Applications
ELECMAN® Steel EMT connectors set screw type 3/4 in. assembly provides secure concrete tight protection when taped. Applications include use in dry locations to bond EMT thin wall conduits to electrical boxes or enclosures. Suitable for both EMT and Rigid conduits. Assemblies include steel locknut, constructed of strong and long lasting steel with zinc plated finish.
Features
Certifications and Compliances
ELECMAN® Steel EMT connectors set screw type shall be produced to the following specifications:
Specification Data
ELECMAN provides full size steel EMT connectors set screw type from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | INNER PACK | MASTER PACK | WEIGHT PER C |
| SCON050 | 1/2" | 0.880 | 1.445 | 50 | 500 | 19.50 |
| SCON075 | 3/4" | 1.130 | 1.504 | 25 | 250 | 13.00 |
| SCON100 | 1" | 1.380 | 1.753 | 50 | 200 | 17.08 |
| SCON125 | 1-1/4" | 1.380 | 2.310 | 25 | 100 | 15.94 |
| SCON150 | 1-1/2" | 2.750 | 2.250 | 10 | 100 | 7.26 |
| SCON200 | 2" | 2.000 | 2.380 | 5 | 50 | 4.91 |
| SCON250 | 2-1/2" | 3.440 | 3.190 | - | 12 | 6.50 |
| SCON300 | 3" | 3.130 | 3.810 | - | 12 | 8.30 |
| SCON350 | 3-1/2" | 4.750 | 4.310 | - | 6 | 5.00 |
| SCON400 | 4" | 4.250 | 4.880 | - | 6 | 5.78 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality steel, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
