| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | SCON |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | Set Screw Type | Size: | 1/2" To 4" |
| Connection: | EMT Conduit To Box | Color: | Sliver |
| High Light: | Steel EMT Connector Set Screw Type,Zinc Plated Emt Connector Screw Type,EMT Connector Set Screw Type 1/2 In |
||

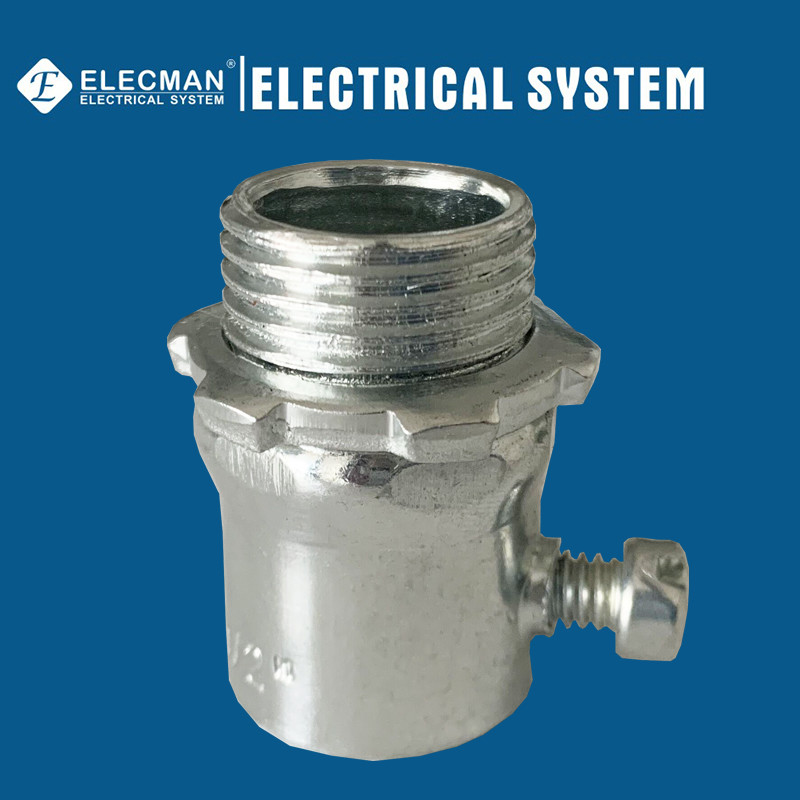

ELECMAN ® Steel EMT Connector Set Screw Type 1/2 in.
Applications
ELECMAN® Steel EMT connectors set screw type 1/2 in. position onto the end of unthreaded EMT conduit and lock on with the set screw. The conduit then installs into a knockout in a junction box or enclosure and is secured with an included locknut.
Features
Certifications and Compliances
ELECMAN® Steel EMT connectors set screw type 1/2 in. shall be produced to the following specifications:
Specification Data
ELECMAN provides full size steel EMT connectors set screw type from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | INNER PACK | MASTER PACK | WEIGHT PER C |
| SCON050 | 1/2" | 0.880 | 1.445 | 50 | 500 | 19.50 |
| SCON075 | 3/4" | 1.130 | 1.504 | 25 | 250 | 13.00 |
| SCON100 | 1" | 1.380 | 1.753 | 50 | 200 | 17.08 |
| SCON125 | 1-1/4" | 1.380 | 2.310 | 25 | 100 | 15.94 |
| SCON150 | 1-1/2" | 2.750 | 2.250 | 10 | 100 | 7.26 |
| SCON200 | 2" | 2.000 | 2.380 | 5 | 50 | 4.91 |
| SCON250 | 2-1/2" | 3.440 | 3.190 | - | 12 | 6.50 |
| SCON300 | 3" | 3.130 | 3.810 | - | 12 | 8.30 |
| SCON350 | 3-1/2" | 4.750 | 4.310 | - | 6 | 5.00 |
| SCON400 | 4" | 4.250 | 4.880 | - | 6 | 5.78 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality steel, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
