| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | ERS |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | Set Screw Type | Size: | 1/2", 3/4", 1" |
| Connection: | EMT To IMC/Rigid Conduit | Structure: | Straight |
| High Light: | Steel Rigid To Emt Set Screw Coupling,1 Inch Rigid To Emt Set Screw Coupling |
||

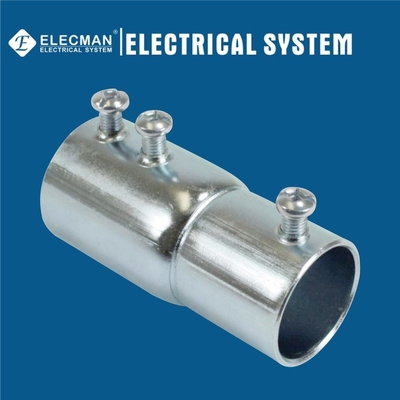

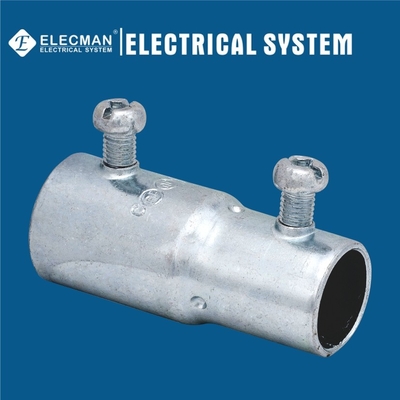

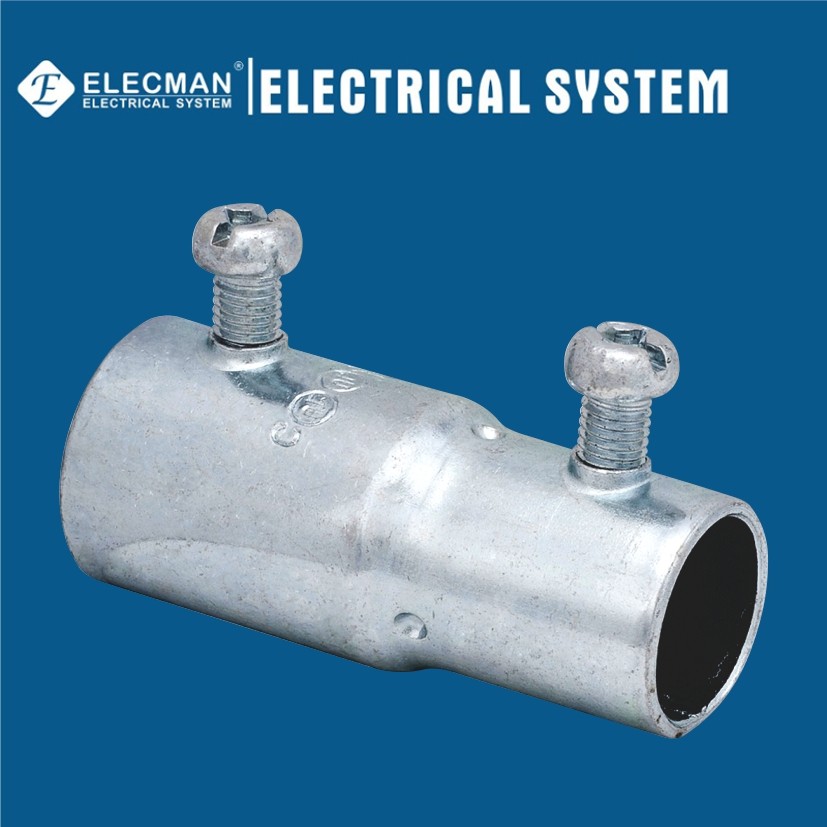

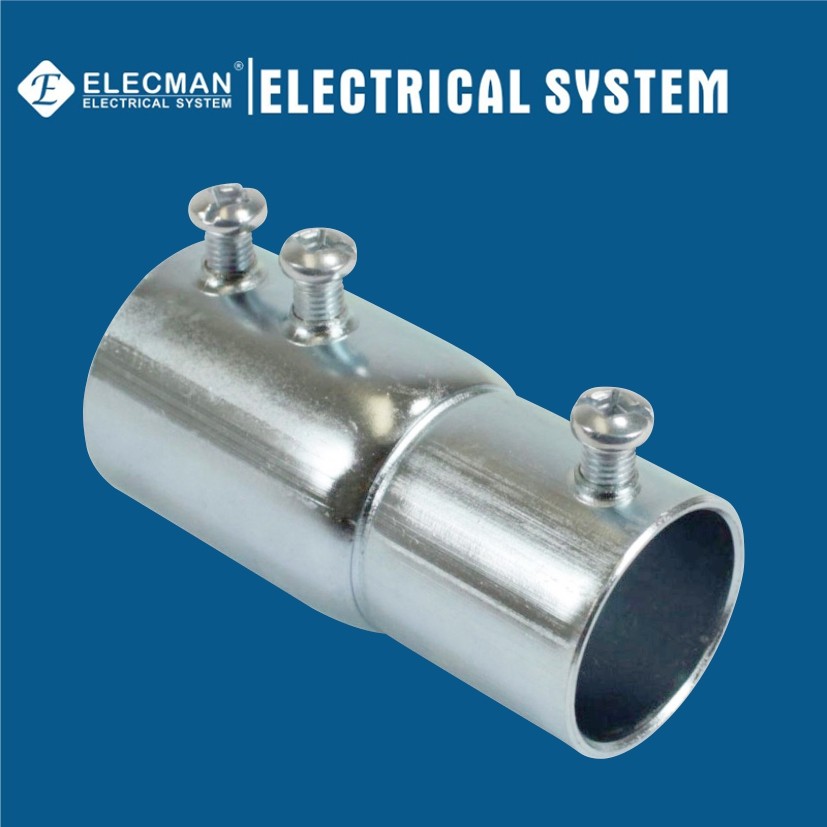

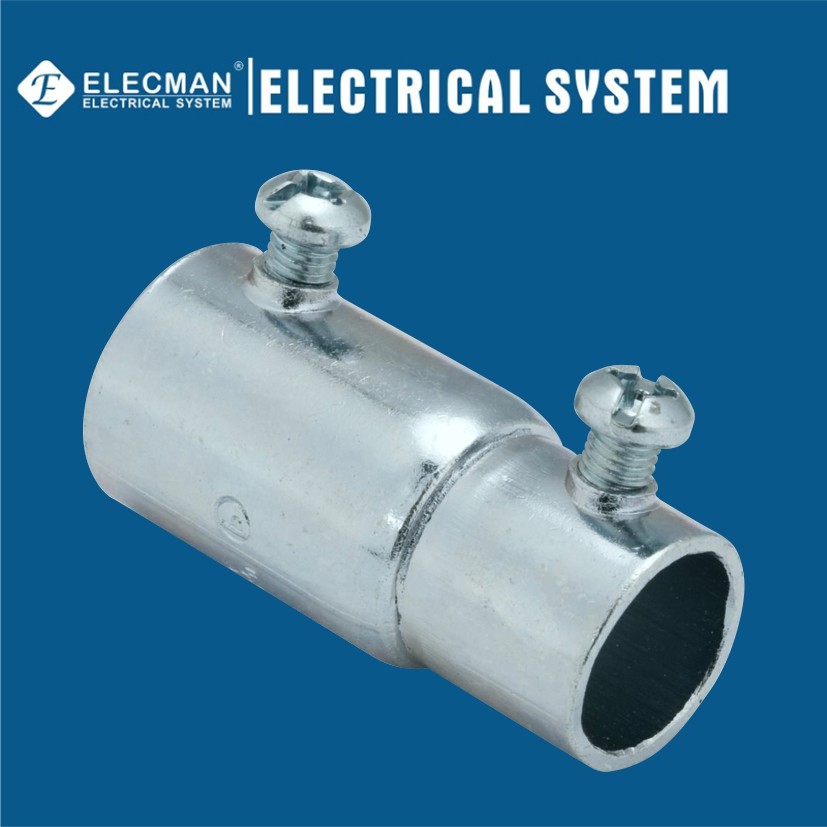

ELECMAN ® Steel EMT Set Screw To Rigid Set Screw Combination Coupling 1/2 Inch - 1 Inch
Applications
ELECMAN® Steel EMT set screw to Rigid set screw combination coupling 1/2 inch - 1 inch transition heavy-wall Rigid metal conduit to EMT metal conduit. They have set screw on either side to clamp on tightly to each piece of conduit.
Features
Certifications and Compliances
ELECMAN® Steel EMT set screw to Rigid set screw combination coupling 1/2 inch - 1 inch shall be produced to the following specification:
Specification Data
ELECMAN provides full size steel EMT set screw to Rigid set screw combination coupling from 1/2" to 1".
| CAT # | Trade Size | DIM A | DIM B | DIM C | DIM D |
| ERS050 | 1/2" | 2.54cm | 6.03cm | 2.22cm | 2.38cm |
| ERS075 | 3/4" | 3.18cm | 7.15cm | 2.86cm | 2.86cm |
| ERS100 | 1" | 3.81cm | 7.62cm | 3.02cm | 3.02cm |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the coupling body is made of high quality steel, every part of the coupling are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box.
