| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | ERC |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | Compression & Threaded Type | Size: | 1/2", 3/4", 1" |
| Connection: | EMT To IMC/Rigid Conduit | Structure: | Straight |
| High Light: | Threaded Rigid Compression Connector,EMT To Rigid Compression Connector |
||

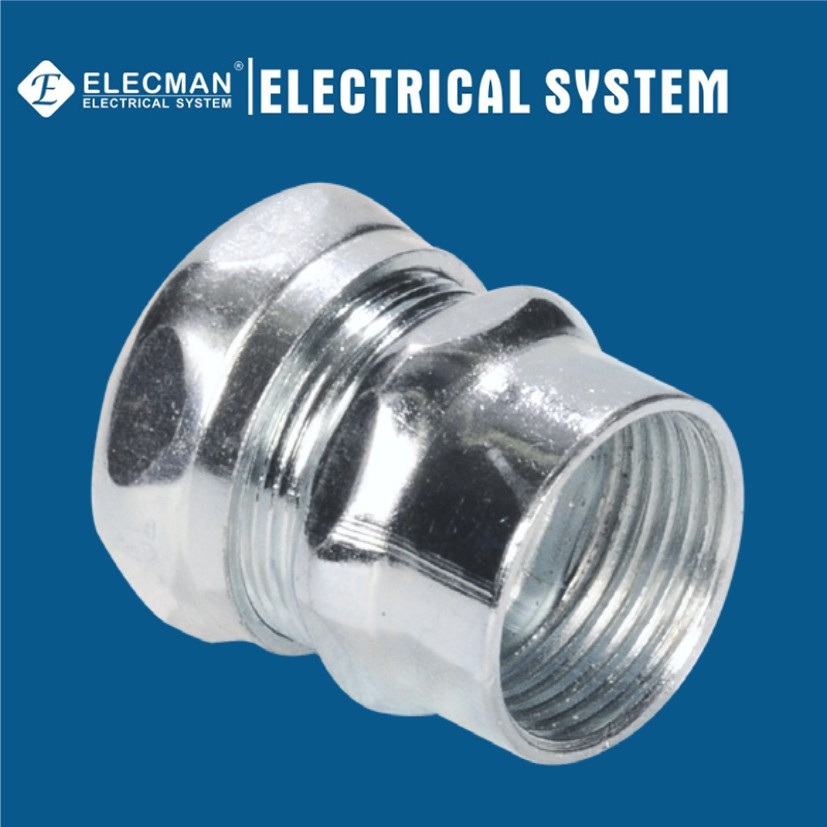

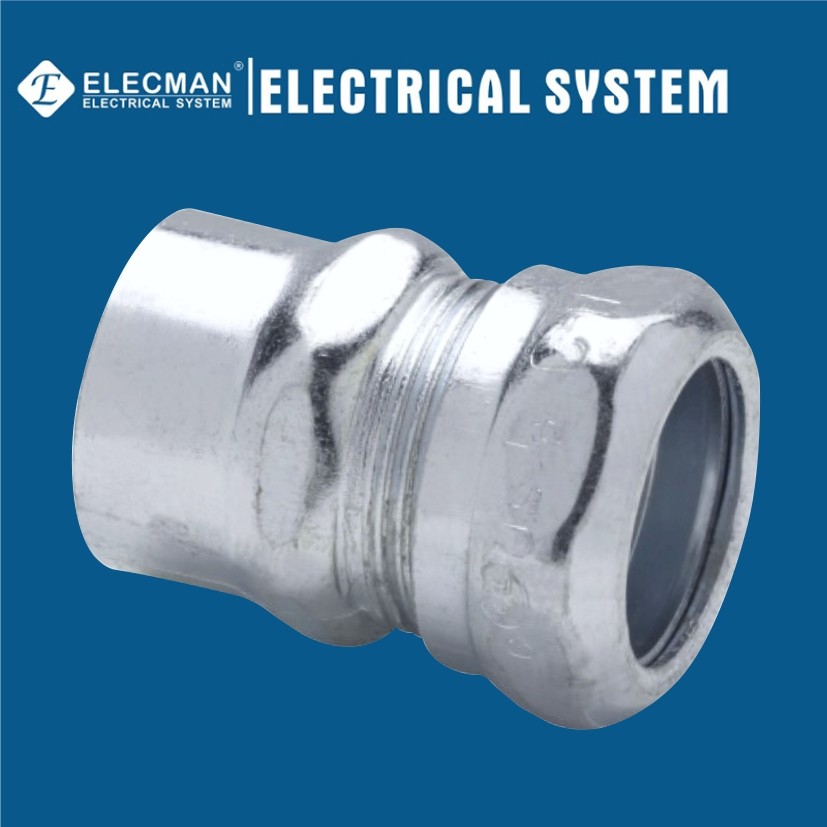

ELECMAN ® Steel EMT To Rigid Combination Compression And Threaded Couplings
Applications
ELECMAN® Steel EMT to Rigid combination compression and threaded couplings feature an easy to install compression type assembly and provide secure, concrete tight when joining ends of thin wall EMT conduit and thick wall Rigid conduit together. Steel construction ensures continued mechanical protection and connectivity between one conduit to another; zinc plated for corrosion resistance. Trade sizes of 1/2" - 1/2", 3/4" - 3/4" and 1" - 1" available; UL Listed.
Features
Certifications and Compliances
ELECMAN® Steel EMT compression to threaded IMC/Rigid couplings shall be produced to the following specification:
Specification Data
ELECMAN provides full size steel EMT compression to threaded IMC/Rigid couplings UL listed from 1/2" to 1".
| CAT # | Trade Size | DIM A | DIM B | DIM C | DIM D |
| ERC050 | 1/2" | 3.31cm | 2.86cm | 2.22cm | 1.75cm |
| ERC075 | 3/4" | 3.65cm | 3.49cm | 2.86cm | 1.91cm |
| ERC100 | 1" | 3.81cm | 4.29cm | 3.49cm | 2.07cm |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the coupling body is made of high quality steel, every part of the coupling are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box.
