| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | EFI |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Zinc | Surface Finish: | Natural |
|---|---|---|---|
| Type: | Compression Type | Size: | 1/2"EMT-1/2"FMC ~ 1"EMT-1"FMC |
| Connection: | EMT(Compression) To Flex(Screw In) | Color: | Sliver |
| High Light: | Combination EMT To Flex Coupling,EMT Conduit Fittings Flex Coupling,Zinc EMT To Flex Coupling |
||

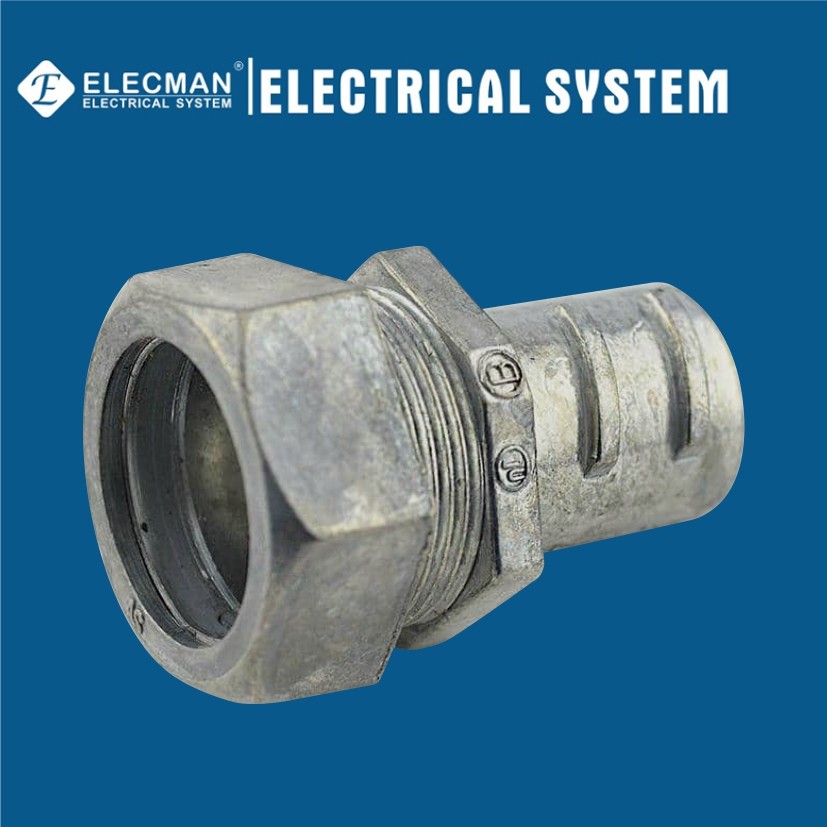

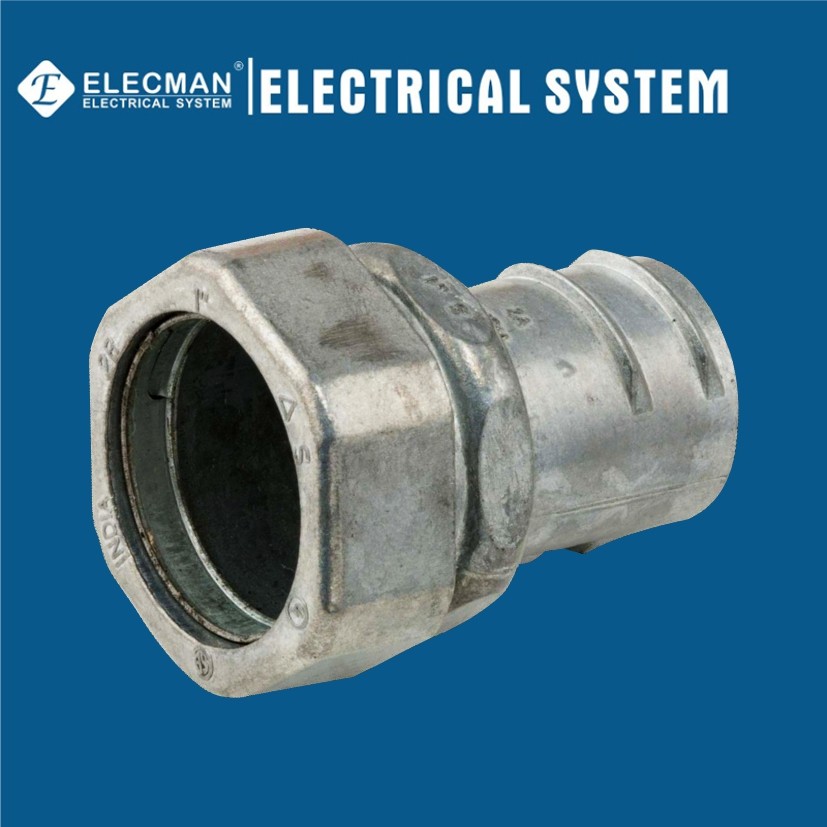

ELECMAN ® Zinc Combination EMT To Flex Coupling Compression Screw In Type
Applications
ELECMAN® Zinc combination EMT to Flex coupling compression screw in type is ideal for a secure joining of flexible metal conduit to EMT. Constructed from corrosion resistant zinc die cast, this compression to screw in type coupling features a smooth pulling surface for wires and require no screws, clamps or fasteners to secure the connection. For indoor use; available in trade sizes 1/2"EMT-1/2"FMC, 3/4"EMT-3/4"FMC, 1"EMT-1"FMC and UL listed.
Features
Certifications and Compliances
ELECMAN® Zinc combination EMT to Flex coupling compression screw in type shall be produced to the following specification:
Specification Data
ELECMAN provides full size Zinc combination EMT to Flex coupling compression screw in type from 1/2"EMT-1/2"FMC to 1"EMT-1"FMC.
| CAT # | Trade Size | DIM A | DIM B | DIM C |
| EFI050 | 1/2"EMT - 1/2"FMC | 4.22cm | 2.54cm | 1.84cm |
| EFI075 | 3/4"EMT - 3/4"FMC | 4.27cm | 3.00cm | 2.36cm |
| EFI100 | 1"EMT - 1"FMC | 4.81cm | 4.13cm | 2.72cm |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the coupling body is made of high quality zinc, every part of the coupling are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2"EMT - 1/2"FMC to 1"EMT - 1"FMC, ELECMAN provides inner box packing inside the outer box.
