| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | ZEC |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Zinc | Surface Finish: | Natural |
|---|---|---|---|
| Type: | 90°, Set Screw Type, EMT To EMT | Size: | 1/2" 3/4" |
| Connection: | EMT Conduit To EMT Conduit | Angle: | 90 Degree |
| High Light: | UL 90 Degree Pull Elbows,EMT Fittings 90 Degree Pull Elbows,Set Screw EMT Corner |
||

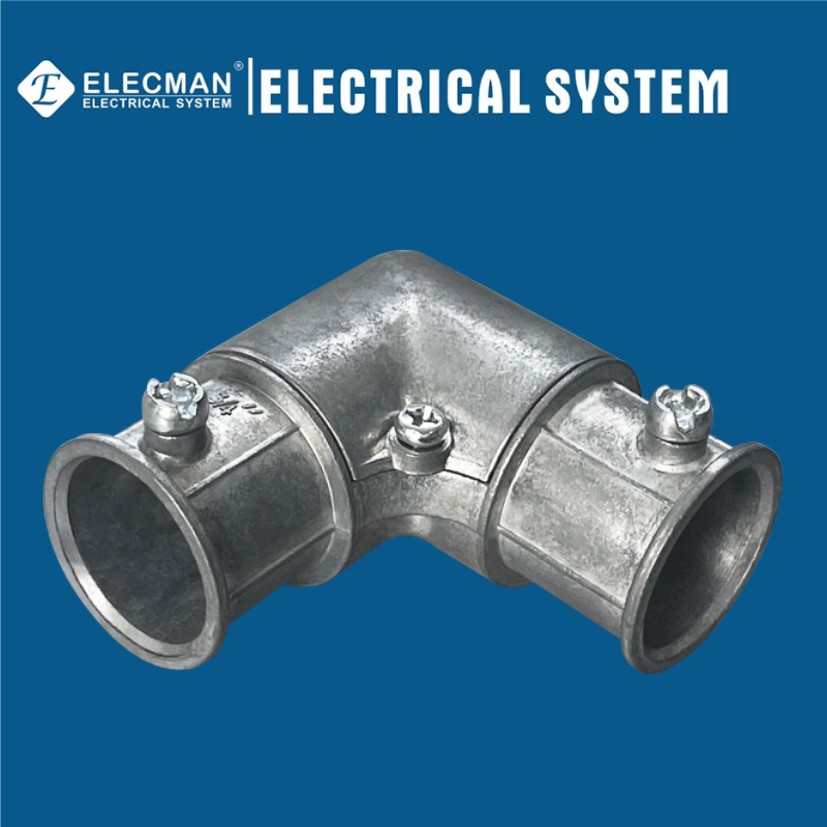

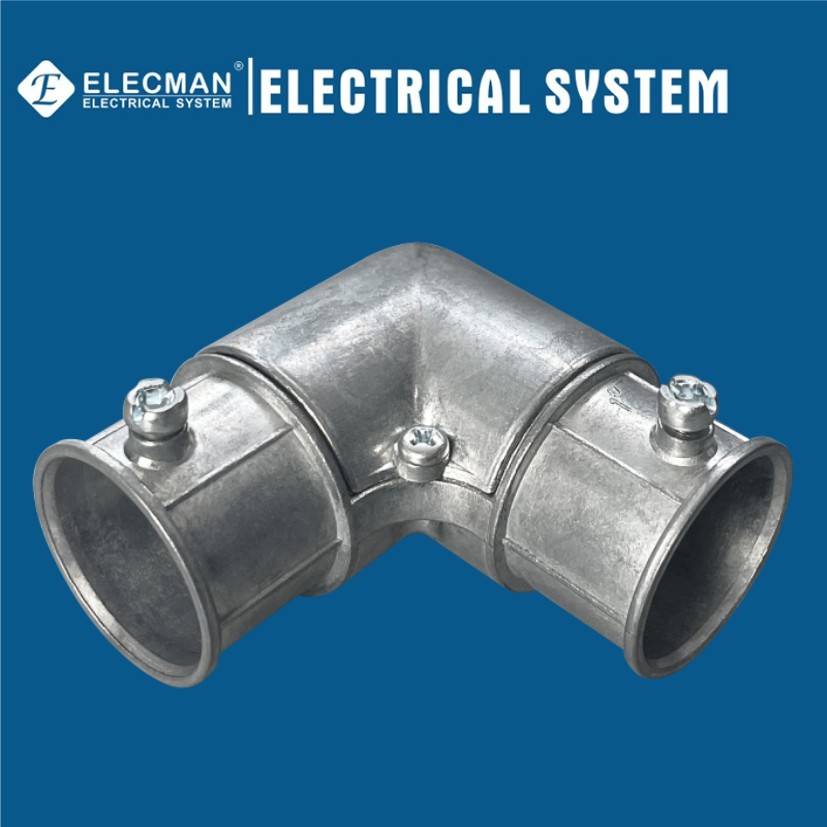

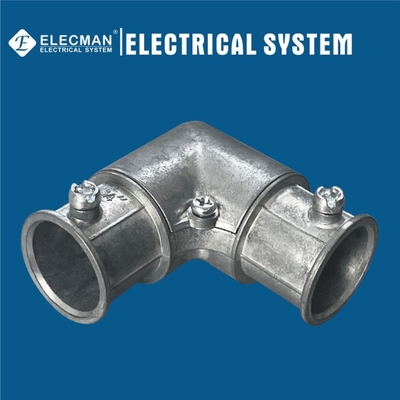

ELECMAN ® EMT Fittings Zinc Die Cast 90 Degree Inside Corner Set-Screw Pull Elbows
Applications
ELECMAN® EMT fittings zinc die cast 90 degree inside corner set-screw elbows are used to change the direction of EMT conduit runs in any direction by 90 angles. They are ideal for continuing the conduit run in tight spaces and areas where bending the conduit is not possible. 90 angle inside corner elbows are easy to install. When conduits cannot be bent, you can turn them by 90 degree. 90° inside corner set-screw elbows are of rugged zinc die-cast construction.
Features
Certifications and Compliances
ELECMAN® EMT fittings zinc die cast 90 degree inside corner set-screw elbows shall be produced to the following specification:
Specification Data
ELECMAN provides full size EMT fittings zinc die cast 90 degree inside corner set-screw elbows 1/2" and 3/4".
| CAT # | Trade Size | DIM A | DIM B |
| ZEC050 | 1/2" | 5.84cm | 2.54cm |
| ZEC075 | 3/4" | 6.63cm | 3.18cm |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality zinc, the screws are made of steel, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 3/4", ELECMAN provides inner box packing inside the outer box.
