Zinc 90 Degree EMT Rigid Pull Elbows Set Screw Threaded Type With Gasket

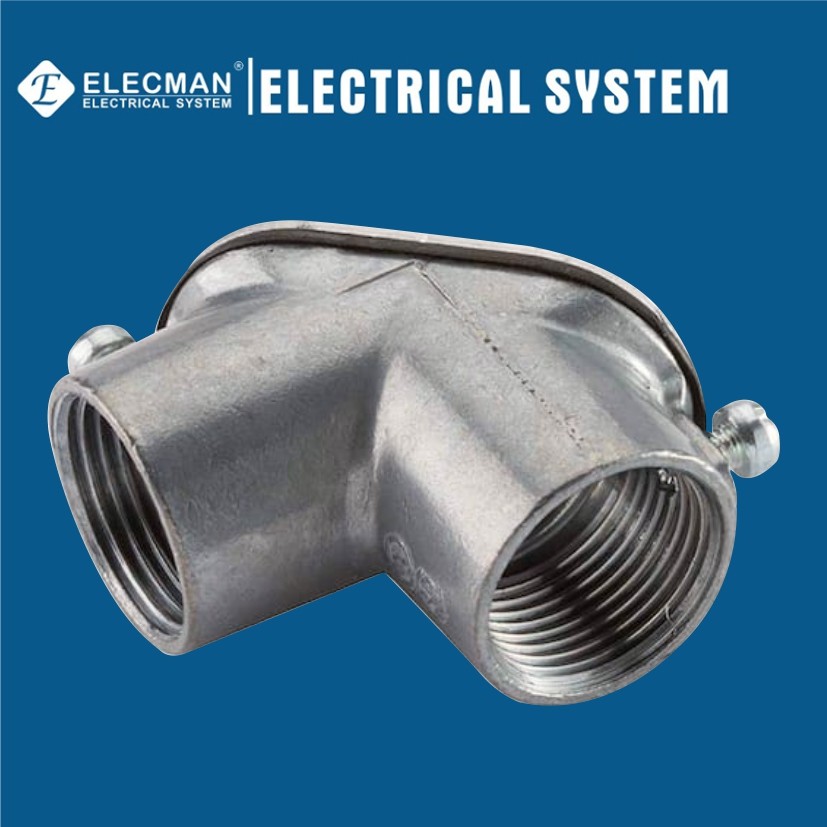

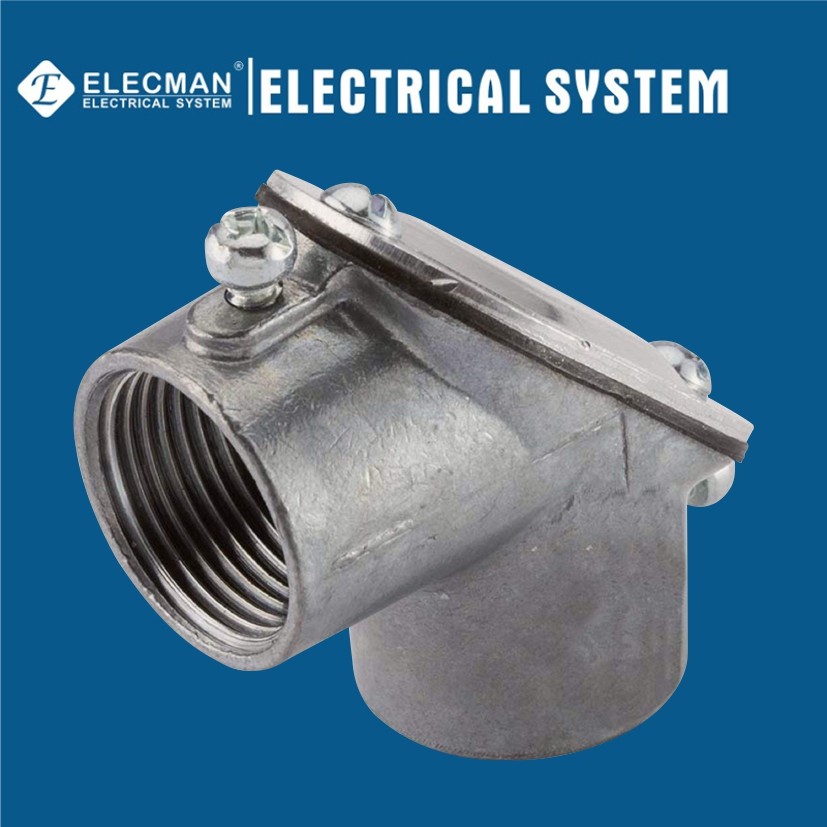

ELECMAN® Zinc 90 Degree EMT/Rigid Pull Elbows Set Screw Threaded Type With Gasket

Applications

ELECMAN® Zinc 90 degree EMT/Rigid pull elbows set screw threaded type with gasket are used to facilitate pulling conductors through a 90-degree bend in two pieces of steel EMT, threaded rigid or IMC conduit. The removable cover provides ample access to achieve wire pulling without obstruction. These die-cast zinc elbows are for dry location applications.

Features

• Zinc die cast body, aluminum cover, neoprene gasket and steel screws.
• Body and locknut made from corrosion-resistant zinc alloy.
• Facilitates wire-pulling and maintenance in EMT/Rigid conduit connected to a metal enclosure.
• Preassembled with removable cover to provide access for wire pulling and maintenance.
• Corrosion resistant.
• Zinc die-cast construction with stamped aluminum cover.
• Facilitates pulling conductors through a 90 Degree bend.
• Changes direction of raceways by 90 Degree.

Certifications and Compliances

ELECMAN® Zinc 90 degree EMT/Rigid pull elbows set screw threaded type with gasket shall be produced to the following specification:

• UL Listed
• File No.: E513114

Specification Data

ELECMAN provides full size zinc 90 degree EMT/Rigid pull elbows set screw threaded type with gasket from 1/2" to 1-1/4".

Quality Control

ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality zinc, the screws are made of steel, every part of the connector are produced according to the high standard.

Packing Information

Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1-1/4", ELECMAN provides inner box packing inside the outer box.
